PNP
BLT0009 - Luminescence Sensor
BLT0009 - Luminescence Sensor
Regular price
$938.00 NZD
Regular price
Sale price
$938.00 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Luminescence Sensors
21M PNP (NO/NC) Sn:0...40mm M12
Compatible Part Numbers:
BLT0009
Typecode / BLT 21M-001-P-S4
Technical Data Of: BLT0009
| Series | 21M |
| Dimension |
12 x 50 x 42.5 mm
|
| Interface |
PNP normally open/normally closed (NO/NC)
|
| Input function |
Key disable on/off
|
|
Teach Contrast (switching point)
|
|
| Principle of operation |
Luminescence sensor
|
| Principle of optical operation |
Diffuse sensor, focused
|
| Special optical feature | Coaxial Optics |
| Beam characteristic | Focused |
| Light type | Ultraviolet light |
| Light spot size |
Ø 1.5 mm at 10 mm
|
| Range | 0...40 mm |
| Connection |

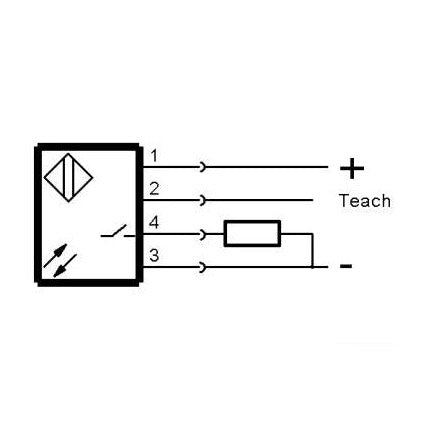

Connector, M12x1-Male, 4-pin
|
| Housing material |
Zinc, Die casting, Powder coated Aluminium
|
| Material sensing surface | Glass |
| Operating voltage | Ub10...30 VDC |
| Approval/Conformity | cULus |
| CE | |
| UKCA | |
| WEEE |
Technical Data Sheet:
1 in stock
