B14NPN (NO/NC)

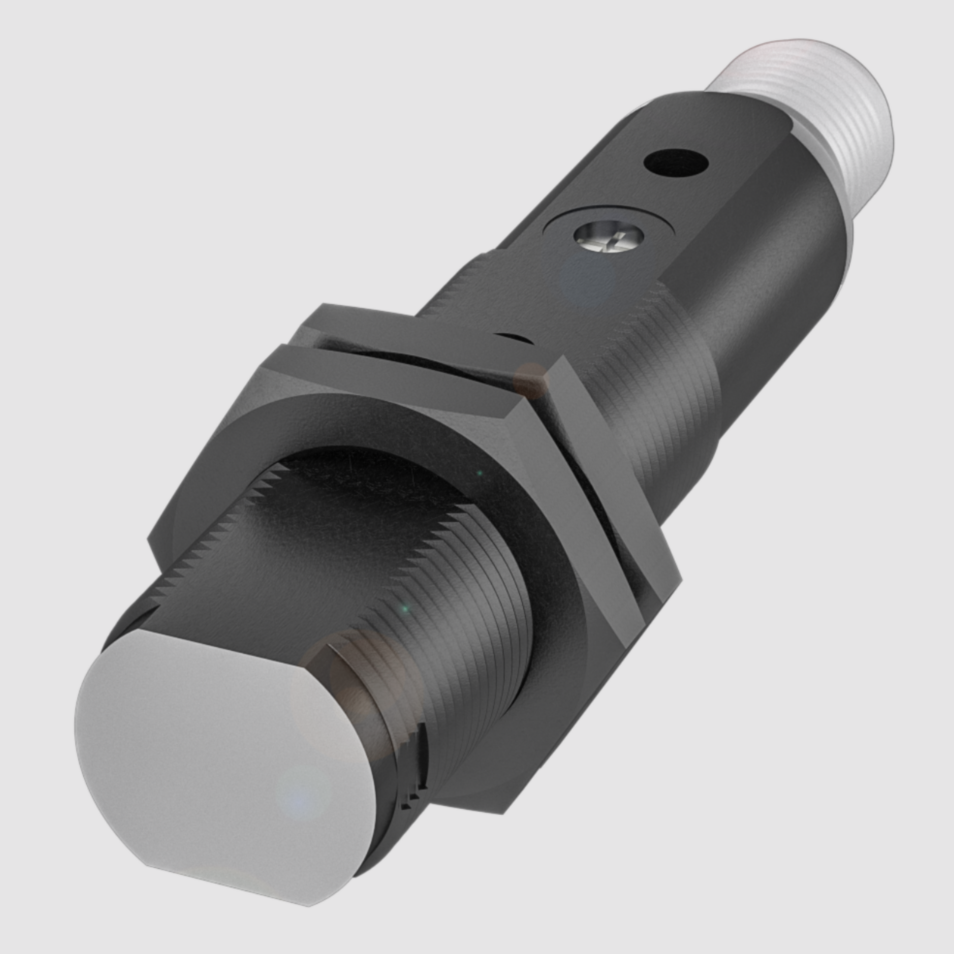

Balluff - M18 NPN (NO/NC) - Retroreflective Sensor BOS00J7
Balluff - M18 NPN (NO/NC) - Retroreflective Sensor BOS00J7
Regular price
$171.87 NZD
Regular price
Sale price
$171.87 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Retroreflictive Sensor
M18 NPN (NO/NC) M12 4pin Sn: 4.5m
Compatible Part Numbers:
BOS00J7
Typecode / BOS 18KF-NA-1QD-S4-C
Technical Data Of: BOS00J7
| Series | 18KF |
| Dimension | Ø 18 x 81.5 mm |

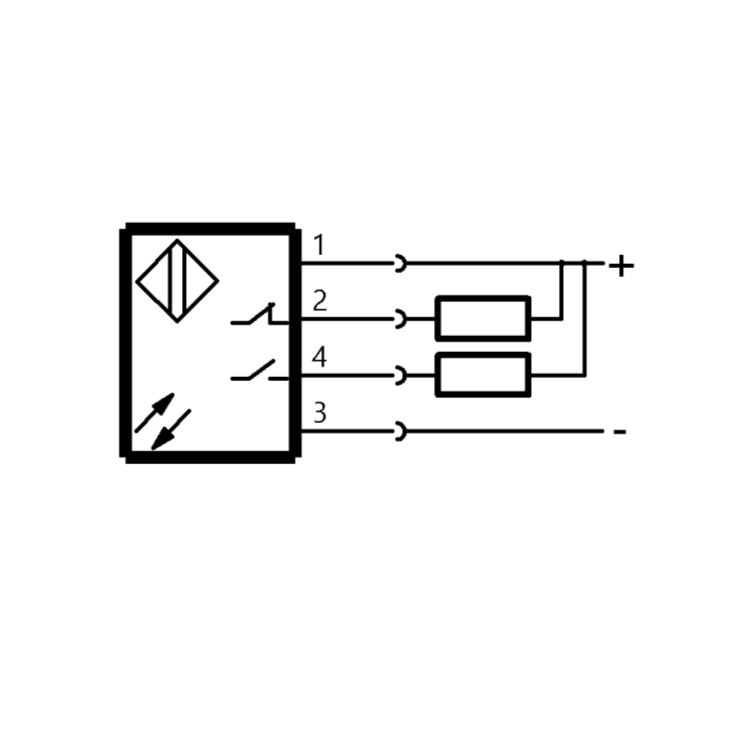

| Interface | NPN normally open (NO) |
| NPN normally closed (NC) | |
| Principle of operation | Photoelectric sensor |

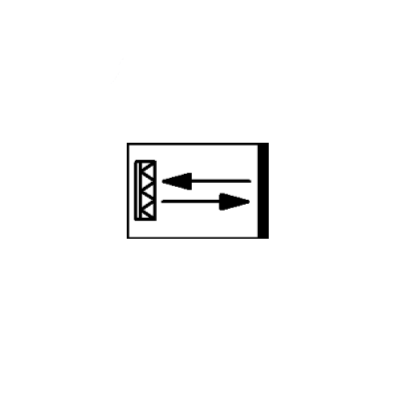

| Principle of optical operation | Retroreflective sensor |
| Light type | LED, red light |
| Range0...4.5 m | 0...4.5 m |

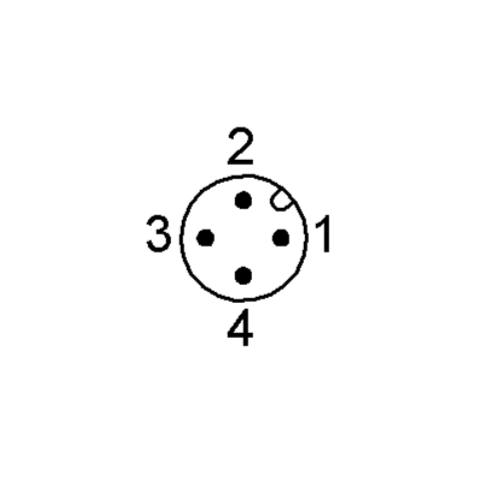

| Connection | Connector, M12x1-Male, 4-pin |
| Housing material | PBT |
| Material sensing surface | PMMA |
| Operating voltage | Ub10...30 VDC |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEEE |
Technical Data Sheet:
1 in stock
