B13NPN (NC)
BOS0114 - Retroreflective Sensor - Discontinued
BOS0114 - Retroreflective Sensor - Discontinued
Regular price
$179.09 NZD
Regular price
Sale price
$179.09 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

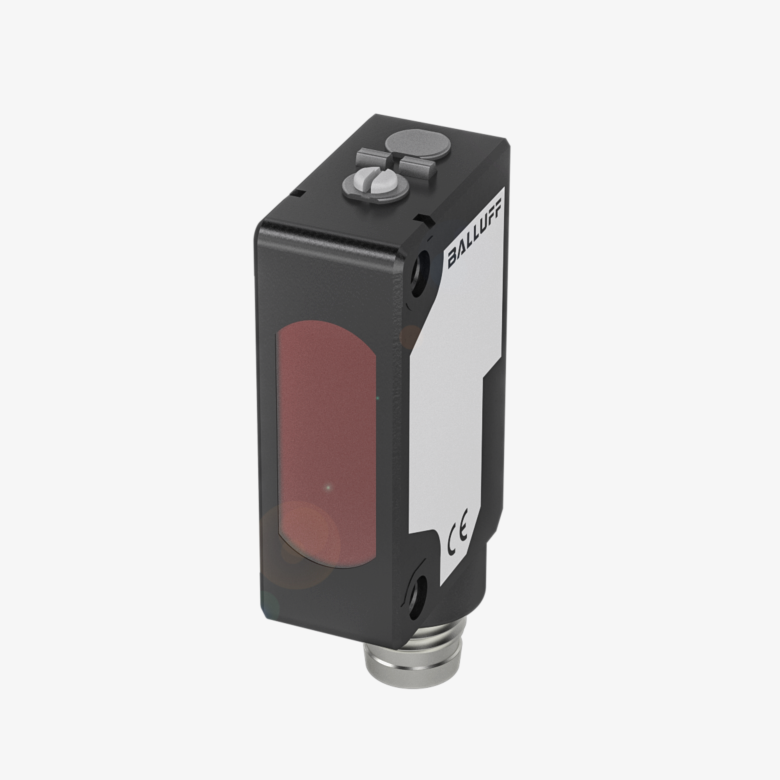

Retroreflective Sensor
5K NPN (NC) M8 4pin Sn:4m
Compatible Part Numbers:
BOS0114 - Discontinued
Typecode / BOS 5K-NO-RR10-S75
BOS02A5 - Successor
Typecode / BOS R090K-NU-RR10-S75
Technical Data Of BOS0114:
| Series | 5K |
| Dimension | 10.8 x 43.5 x 19.5 mm |

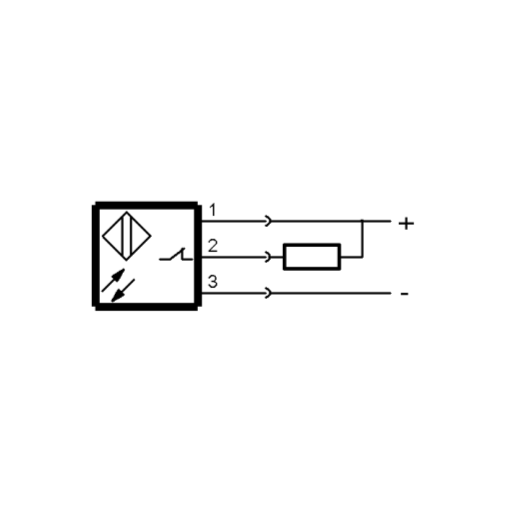

| Interface | NPN normally closed (NC) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Retroreflective sensor |
| Light type | LED, red light |
| Range | 0...4 m |

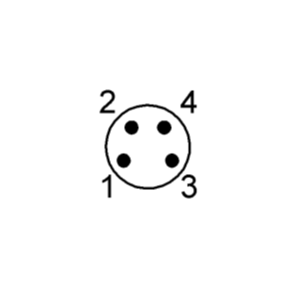

| Connection | Connector, M8x1-Male, 4-pin |
| Housing material | PC |
| PBT | |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | cULus |
| CE | |
| EAC | |
| WEEE | |
| Trademark | Global |
Technical Data Sheet:
1 in stock
