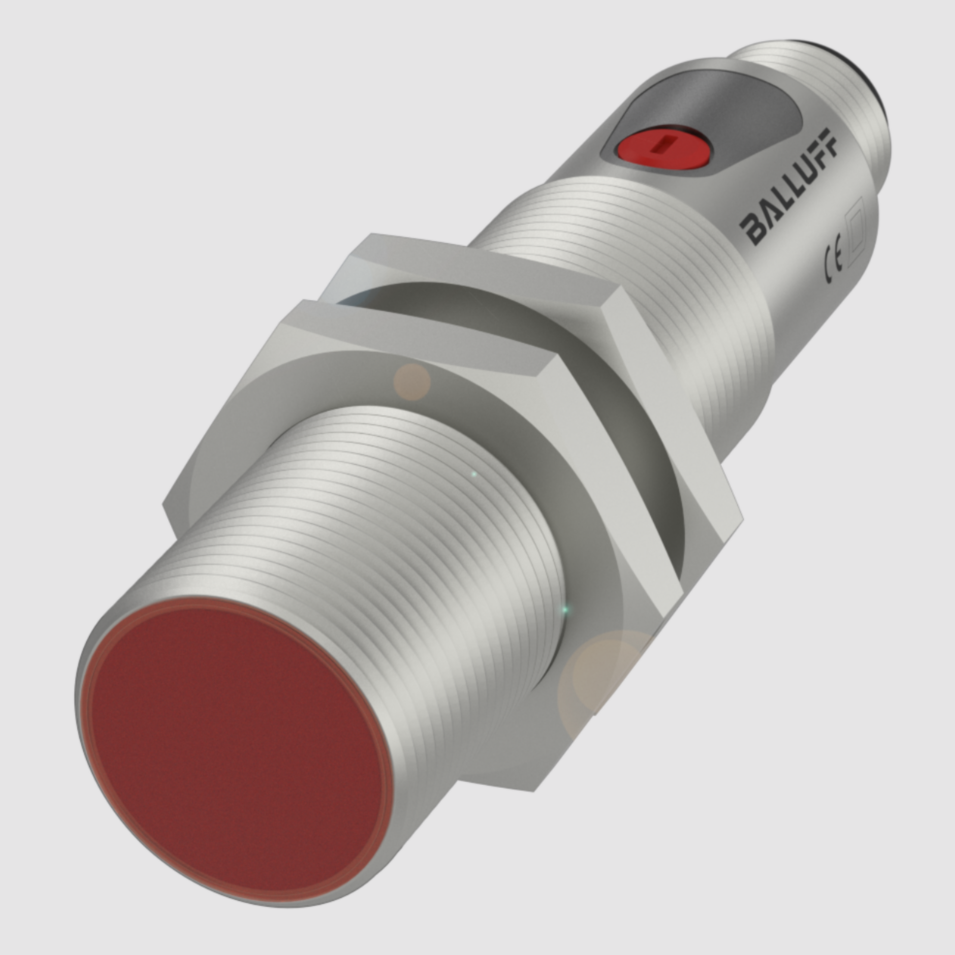

BOS01E7 - M18 PNP (NO) - Diffuse Sensor
BOS01E7 - M18 PNP (NO) - Diffuse Sensor
Regular price
$189.95 NZD
Regular price
Sale price
$189.95 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Diffuse Sensor
M18 PNP (NO) Sn:0-300mm
Compatible Part Numbers:
BOS01E7
Typecode / BOS 18M-PS-RD21-S4
Typecode / BOS 18M-PS-RD23-S4
Technical Data Of: BOS01E7
| Series | 18M |
| Dimension | Ø 18 x 75 mm |

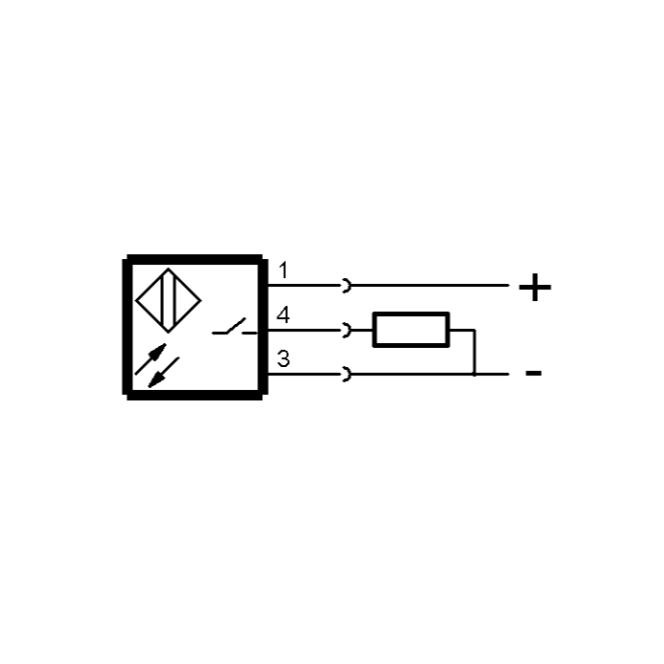

| Interface | PNP normally open (NO) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, energetic |
| Beam characteristic | Divergent |
| Light type | LED, red light |
| Light spot size | Ø 25 mm at 300 mm |
| Range | 0...300 mm |

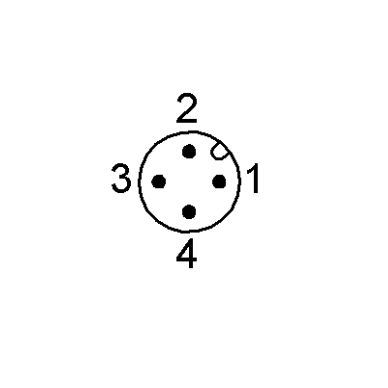

| Connection | Connector, M12x1-Male, 4-pin |
| Housing material | Brass, nickel-plated |
| Material sensing surface | Glass, anti-glare |
| Operating voltage | Ub10...30 VDC |
| Approval/Conformity | CE |
| UKCA | UKCA |
| cULus | cULus |
| WEEE | WEEE |
| Scope of delivery | 2x nut M18x1 |
| User manual |
Technical Data Sheet:
1 in stock
