B21PNP (NO)
BOS01F8 - Retroreflective Sensor
BOS01F8 - Retroreflective Sensor
Regular price
$185.26 NZD
Regular price
Sale price
$185.26 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

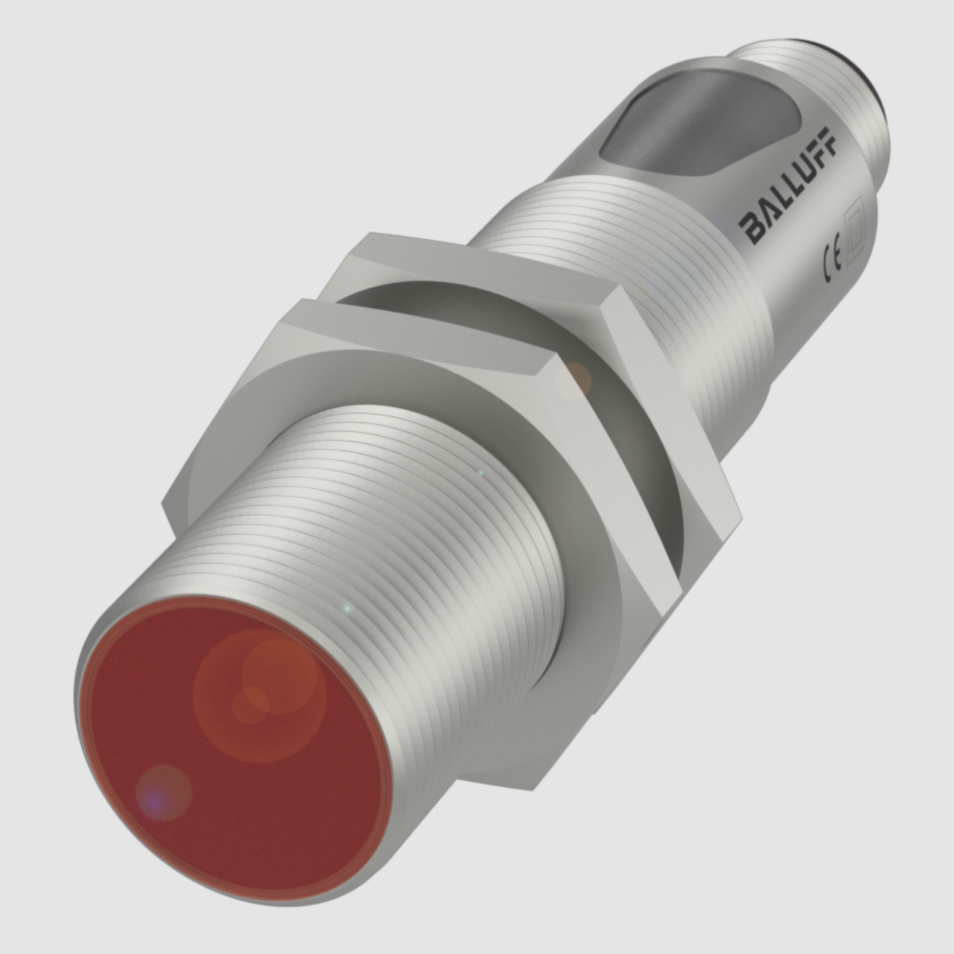

Retroreflective Sensor
M18 PNP (NO) M12 4pin Sn:0-4m
Compatible Part Numbers:
BOS01F8
Typecode / BOS 18M-PS-PR23-S4
Technical Data Of: BOS01F8
| Series | 18M |
| Dimension | Ø 18 x 75 mm |

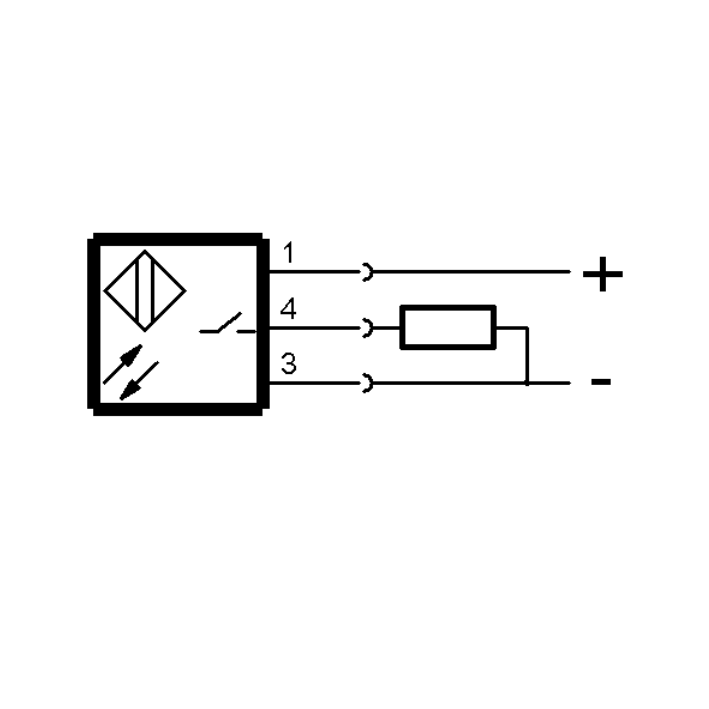

| Interface | PNP normally open (NO) |
| Principle of operation | Photoelectric sensor |

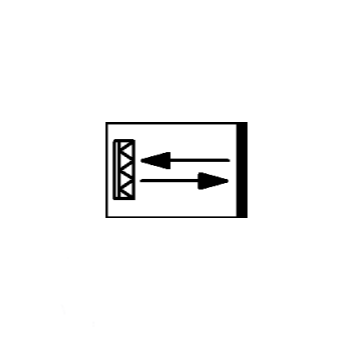

| Principle of optical operation | Retroreflective sensor |
| Beam characteristic | Divergent |
| Light type | LED, red light |
| Light spot size | Ø 300 mm at 7 m |
| Range | 0...4 m |

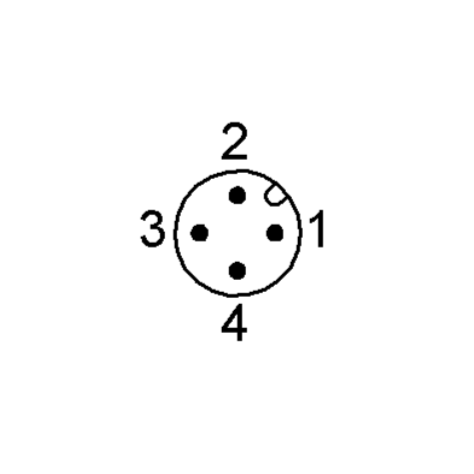

| Connection | Connector, M12x1-Male, 4-pin |
| Housing material | Brass, nickel-plated |
| Material sensing surface | Glass, anti-glare |
| Operating voltage | Ub10...30 VDC |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEEE | |
| Scope of delivery | 2x nut M18x1 |
| User manual |
Technical Data Sheet:
1 in stock
