B20NPN (NO/NC)

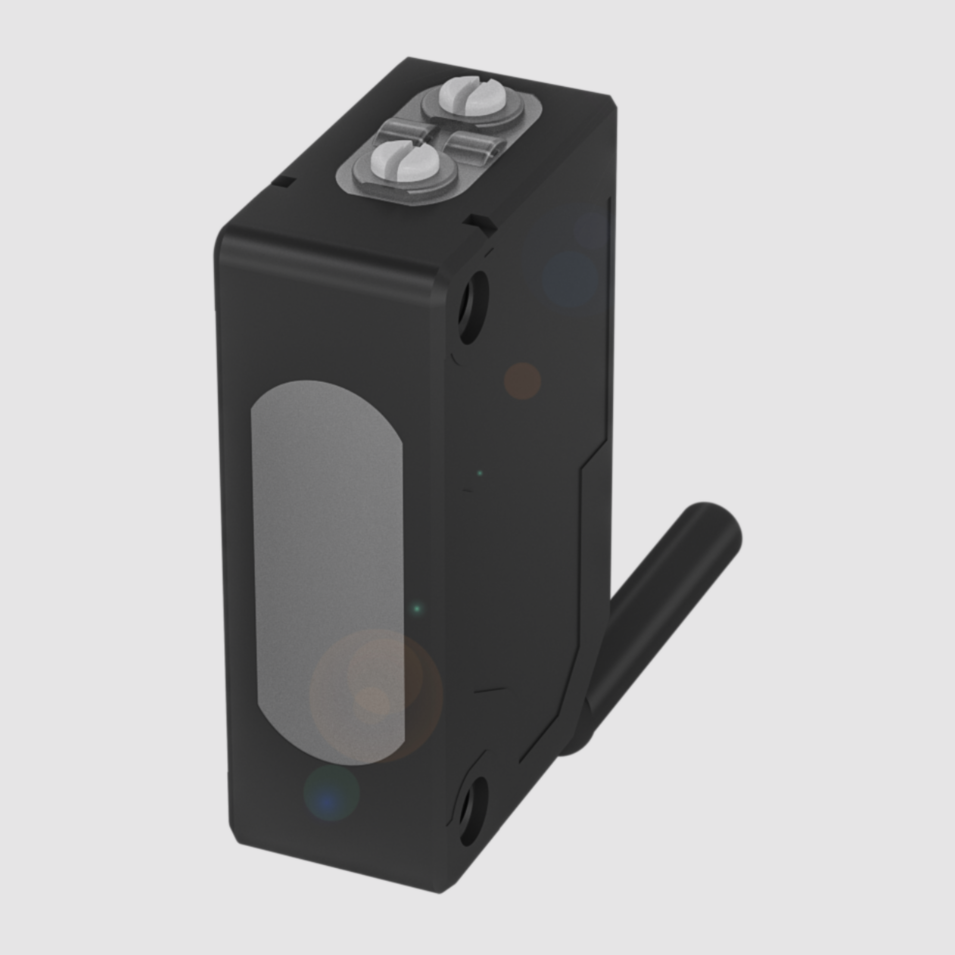

BOS01JY - Diffuse Sensor With Background Suppression
BOS01JY - Diffuse Sensor With Background Suppression
Regular price
$294.49 NZD
Regular price
Sale price
$294.49 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Diffuse Sensor With Background Suppression
5K, NPN NO, Connection Cable 2.00m PVC.
Compatible Part Numbers:
BOS01JY
Typecode / BOS 5K-NU-LH12-02
Technical Data Of: BOS01JY
| Series | 5K |
| Dimension | 10.8 x 32.7 x 19.5 mm |
| Interface |

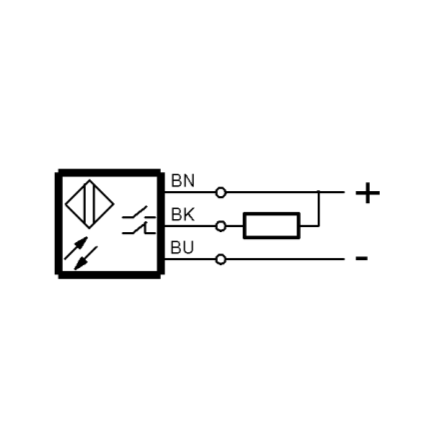

NPN normally open/normally closed (NO/NC)
|
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, triangulation |
| Special optical feature | Background suppression |
| Beam characteristic | Focus, typical at 260 mm |
| Light type | Laser red light |
| Light spot size | 0.2 x 0.3 mm at focal point |
| Range | 20...300 mm |
| Connection | Cable, 2.00 m, PVC |
| Housing material | PC |
| PBT | |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | cULus |
| CE | |
| WEEE | |
| UKCA | |
| Trademark | Global |
Technical Data Sheet:
