B13NPN (NO/NC)
Balluff - NPN (NO/NC) - Retroreflective Sensor BOS02A5
Balluff - NPN (NO/NC) - Retroreflective Sensor BOS02A5
Regular price
$205.84 NZD
Regular price
Sale price
$205.84 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

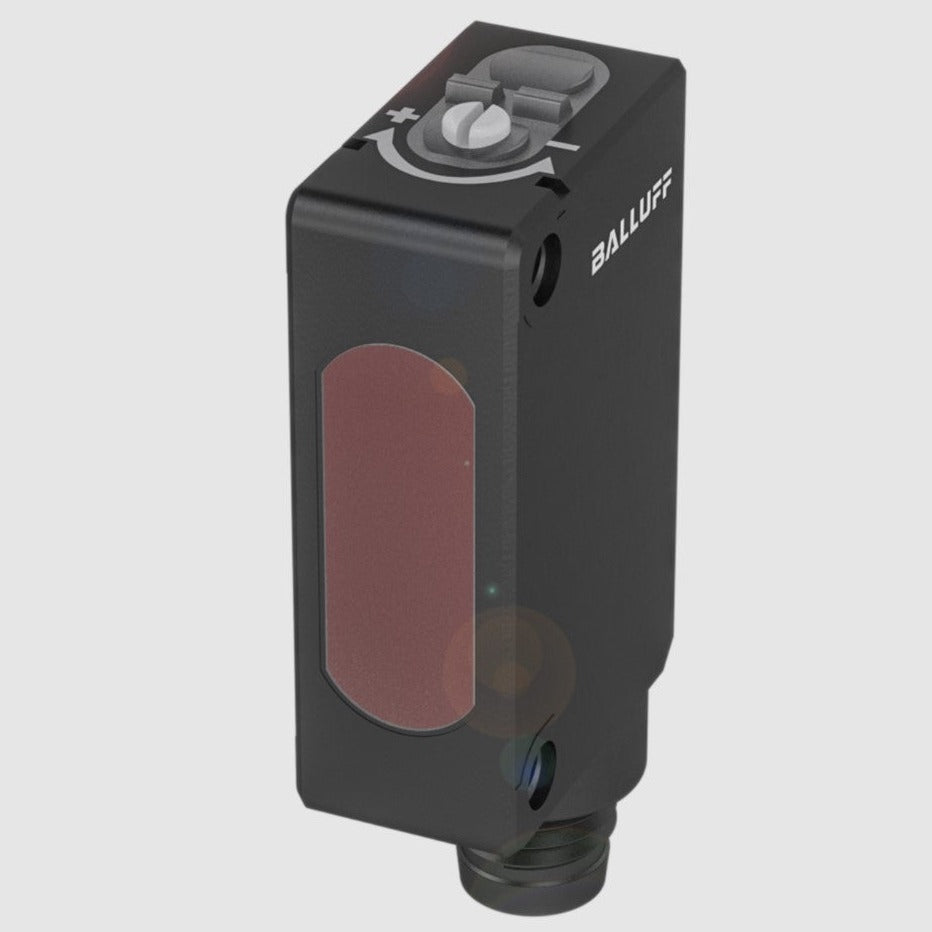

Retroreflective Sensor
NPN (NO/NC) M8 4pin Sn: 5m
Compatible Part Numbers:
BOS02A5
Typecode / BOS R090K-NU-RR10-S75
Successor Of BOS0114
Technical Data Of BOS02A5:
| Series | R090K |
| Dimension | 10.7 x 43.5 x 19.5 mm |
| Interface |

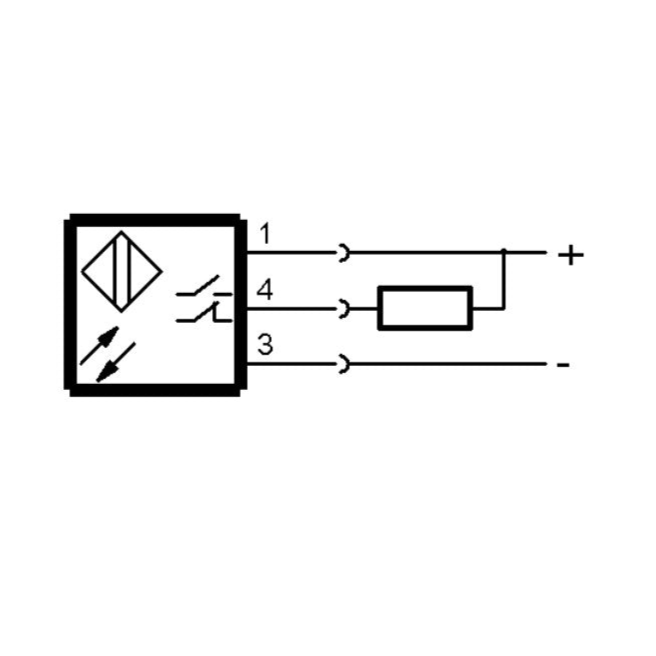

NPN normally open/normally closed (NO/NC)
|
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Retroreflective sensor |
| Beam characteristic | Divergent |
| Light type | LED, red light |
| Light spot size | Ø 105 mm at 2 m |
| Range | 0...5 m |

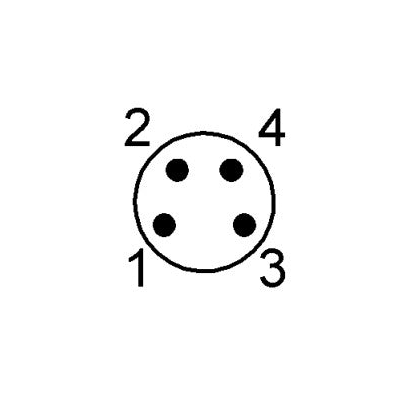

| Connection | Connector, M8x1, 4-pin |
| Housing material | PC |
| PBT | |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | cULus |
| CE | |
| UKCA | |
| WEEE |
Technical Data Sheet:
