B7NPN (NO/NC)

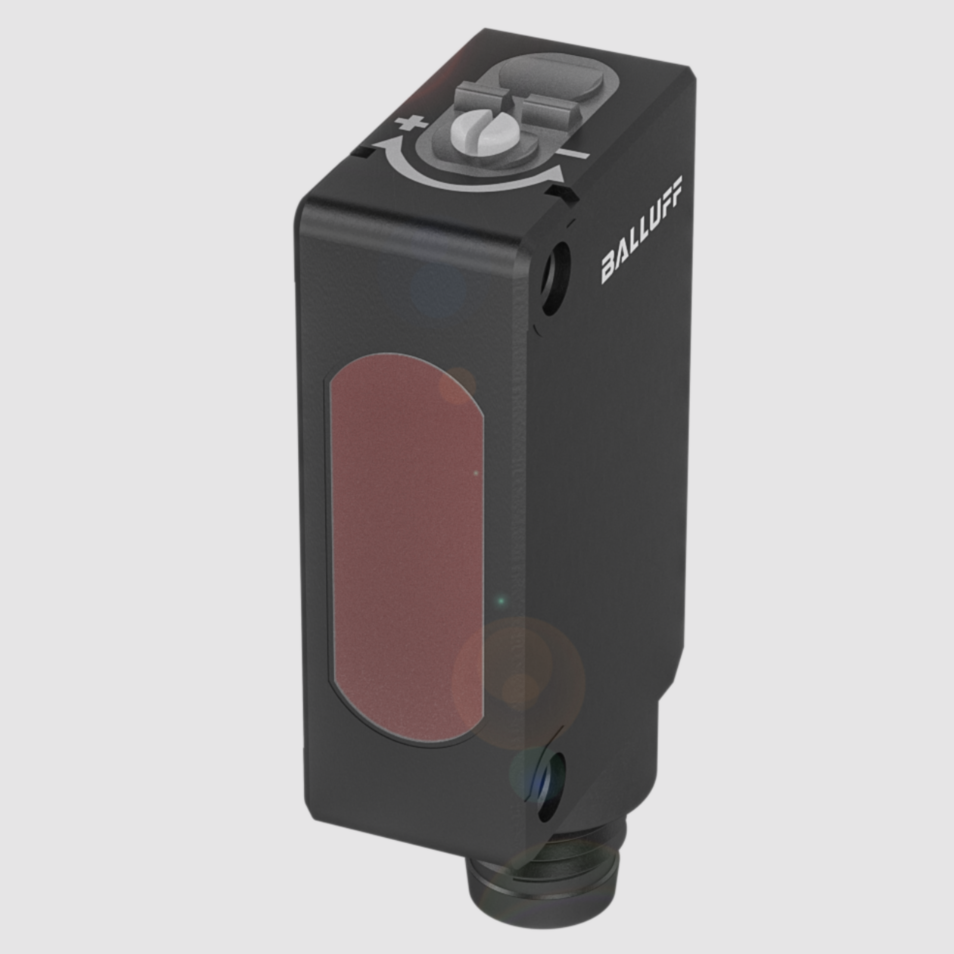

BOS02AA - Diffuse Sensor
BOS02AA - Diffuse Sensor
Regular price
$178.76 NZD
Regular price
Sale price
$178.76 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Diffuse Sensor
R090K NPN (NO/NC) Sn:1000mm M8 4pin
Compatible Part Numbers:
BOS02AA
Typecode / BOS R090K-NU-ID11-S75
Typecode / BOS 5K-NS-ID10-S75
Technical Data Of: BOS02AA
| Series | R090K |
| Dimension |
10.7 x 43.5 x 19.5 mm
|
| Interface |

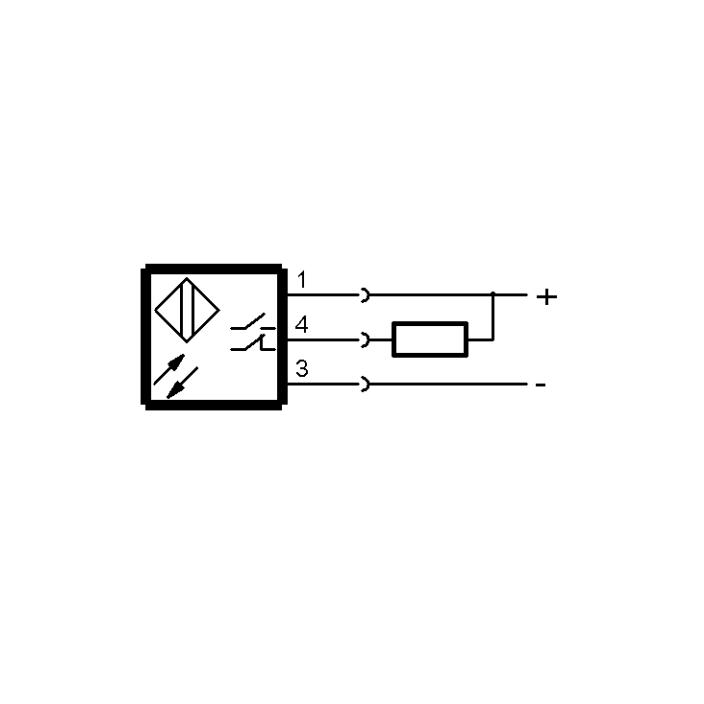

NPN normally open/normally closed (NO/NC)
|
| Principle of operation |
Photoelectric sensor
|

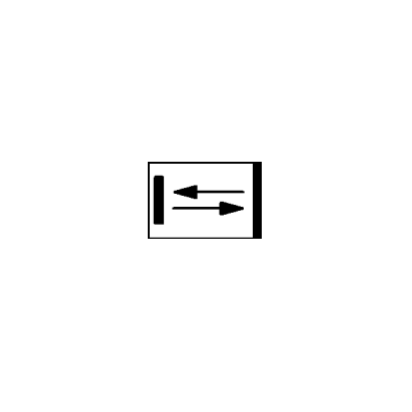

| Principle of optical operation |
Diffuse sensor, energetic
|
| Beam characteristic | Divergent |
| Light type | LED infrared |
| Light spot size |
Ø 70 mm at 500 mm
|
| Range | 0...1000 mm |
| Connection |

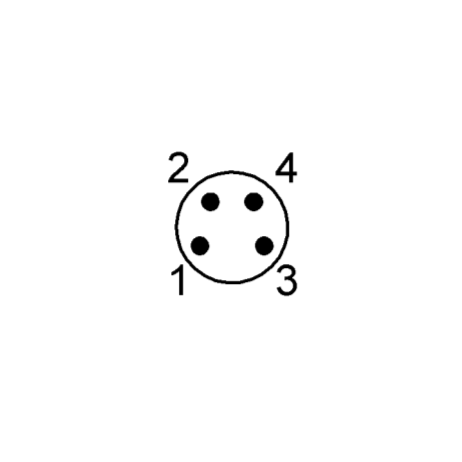

Connector, M8x1, 4-pin
|
| Housing material | PC |
| PBT | |
| Material sensing surface | PMMA |
| Operating voltage | Ub10...30 VDC |
| Approval/Conformity | cULus |
| CE | |
| UKCA | |
| WEEE |
Technical Datasheet:
3 in stock
