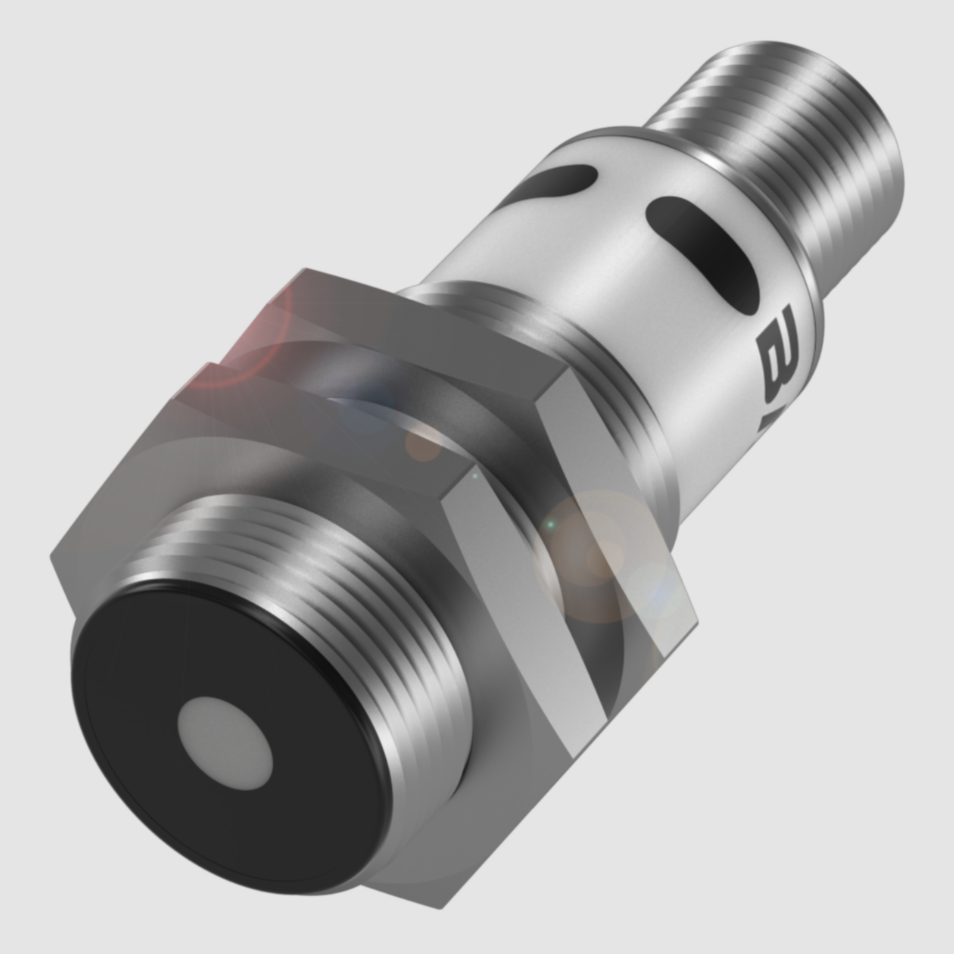

Ultrasonic Sensor
M18 Push Pull (NO/NC) M12 5pin Sn: 25...250 mm.
Compatible Part Numbers:
BUS0020
Typecode / BUS M18M1-GPXI-02/015-S92G
Typecode / BUS M18M1-GPXI-02/015-S92G-511
Technical Data Of BUS0020:
| Style Housing | Ø 18 mm |
| Interface | IO-Link 1.0 |
| Switching output | PNP/NPN NO/NC push-pull |
| Connection | Connector, M12x1-Male, 5-pin |
| Housing material | Brass, nickel-plated |
| PBT | |
| Material sensing surface | PU foam/Epoxy resin/Glass |
| Range | 25...250 mm |
| Switching frequency | 25 Hz |
| Approval/Conformity | cULus |
| CE | |
| WEEE | |
| UKCA | |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Repeat accuracy | ± 0.15 %FS |
| Operating voltage Ub | 10...30 VDC |
Technical Data Sheet:
1 in stock
