B16PNP/NPN (NO/NC) Push Pull

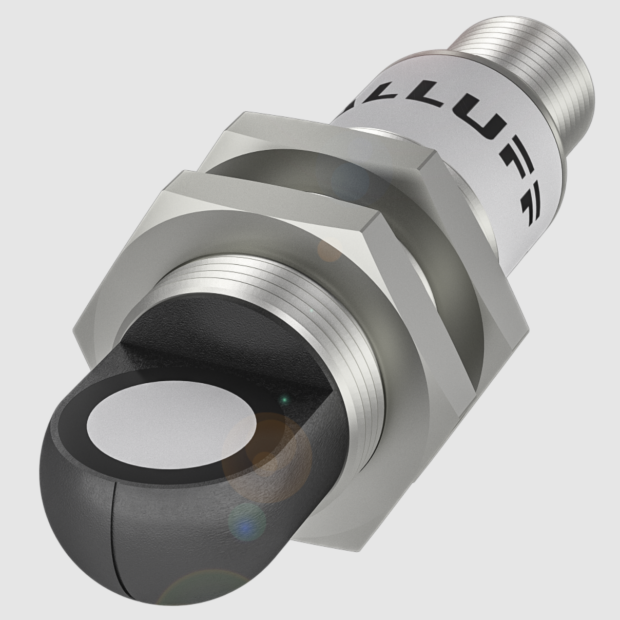

Balluff - M18 PNP/NPN (NO/NC) Push Pull - Ultrasonic Sensor BUS007N

Balluff - M18 PNP/NPN (NO/NC) Push Pull - Ultrasonic Sensor BUS007N

Regular price $432.86 NZD
Regular price Sale price $432.86 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Ultrasonic Sensor With A Digital Output

M18 PNP/NPN (NO/NC) Push Pull M12 5pin Sn: 120-1300 mm

Compatible Part Numbers:

BUS007N

Typecode / BUS W18M1-GPXI-12/100-S92G-511

Successor Of BUS004N

Technical Data Of BUS007N:

Style Housing Ø 18 mm
Interface IO-Link 1.1

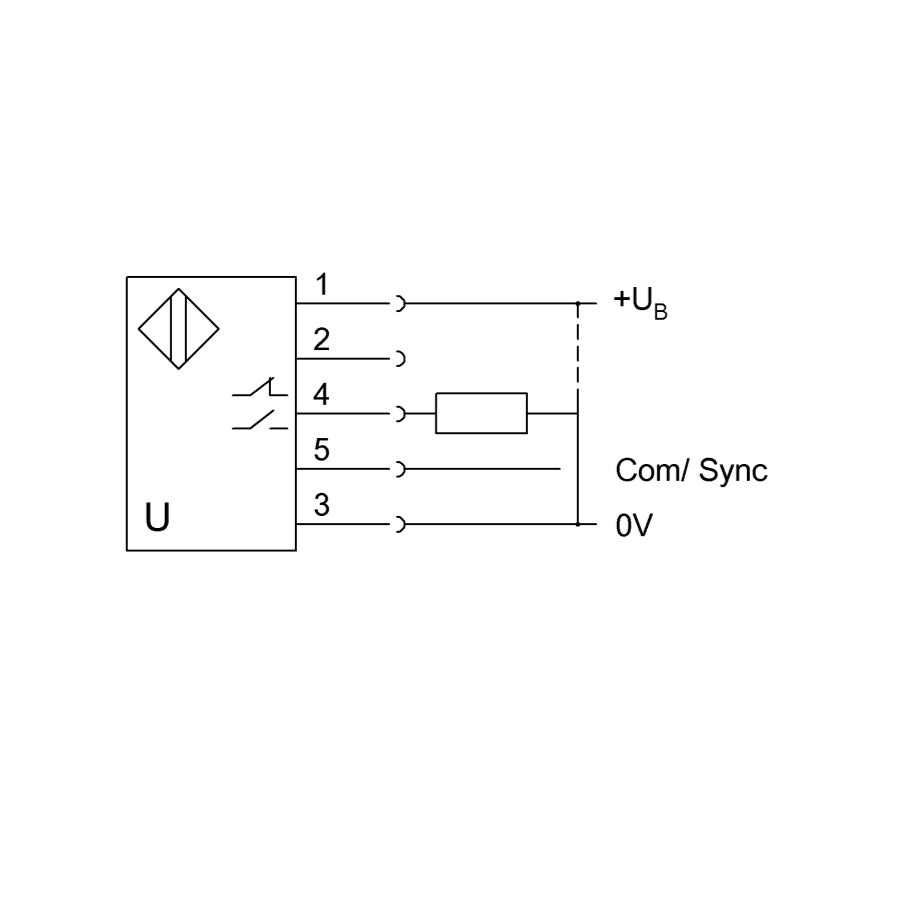

Switching output PNP/NPN NO/NC push-pull

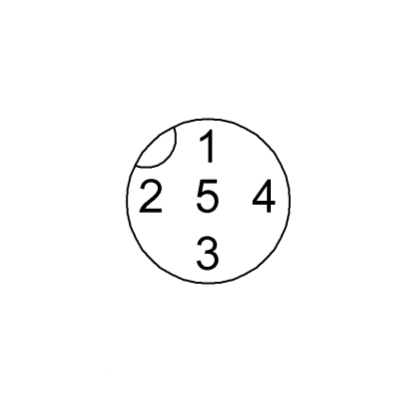

Connection Connector, M12x1-Male, 5-pin
Housing material Brass, nickel-plated
PBT
Material sensing surface PU foam/Epoxy resin/Glass
Range 120...1300 mm
Switching frequency 10 Hz
Approval/Conformity cULus
CE CE
WEEE WEEE
UKCA UKCA
Ambient temperature -25...70 °C
IP rating IP67
Repeat accuracy ± 0.15 %FS
Operating voltage Ub 10...30 VDC

Technical Data Sheet:

1 in stock
