B16PNP/NPN (NO/NC) Push Pull
BUS004N - Ultrasonic Sensor
BUS004N - Ultrasonic Sensor
Regular price
$542.15 NZD
Regular price
Sale price
$542.15 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
This product has been discontinued. Please find the replacement below.

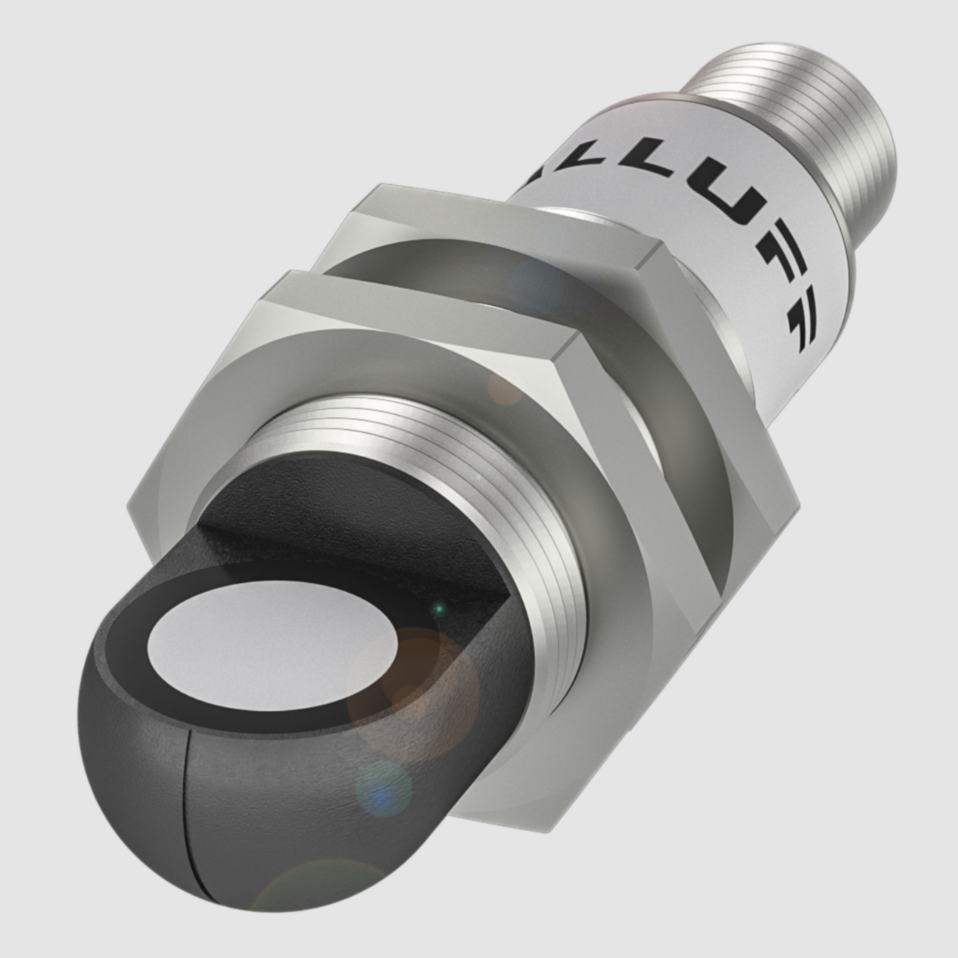

Ultrasonic Sensor
M12 Push Pull NO/NC 5pin Sn: 120...1300 mm
Compatible Part Numbers:
BUS004N
Typecode / BUS W18M1-GPXI-12/100-S92G
Typecode / BUS W18M1-GPXI-12/100-S92G-511
Technical Data Of BUS004N:
| Style Housing | Ø 18 mm |
| Interface | IO-Link 1.0 |

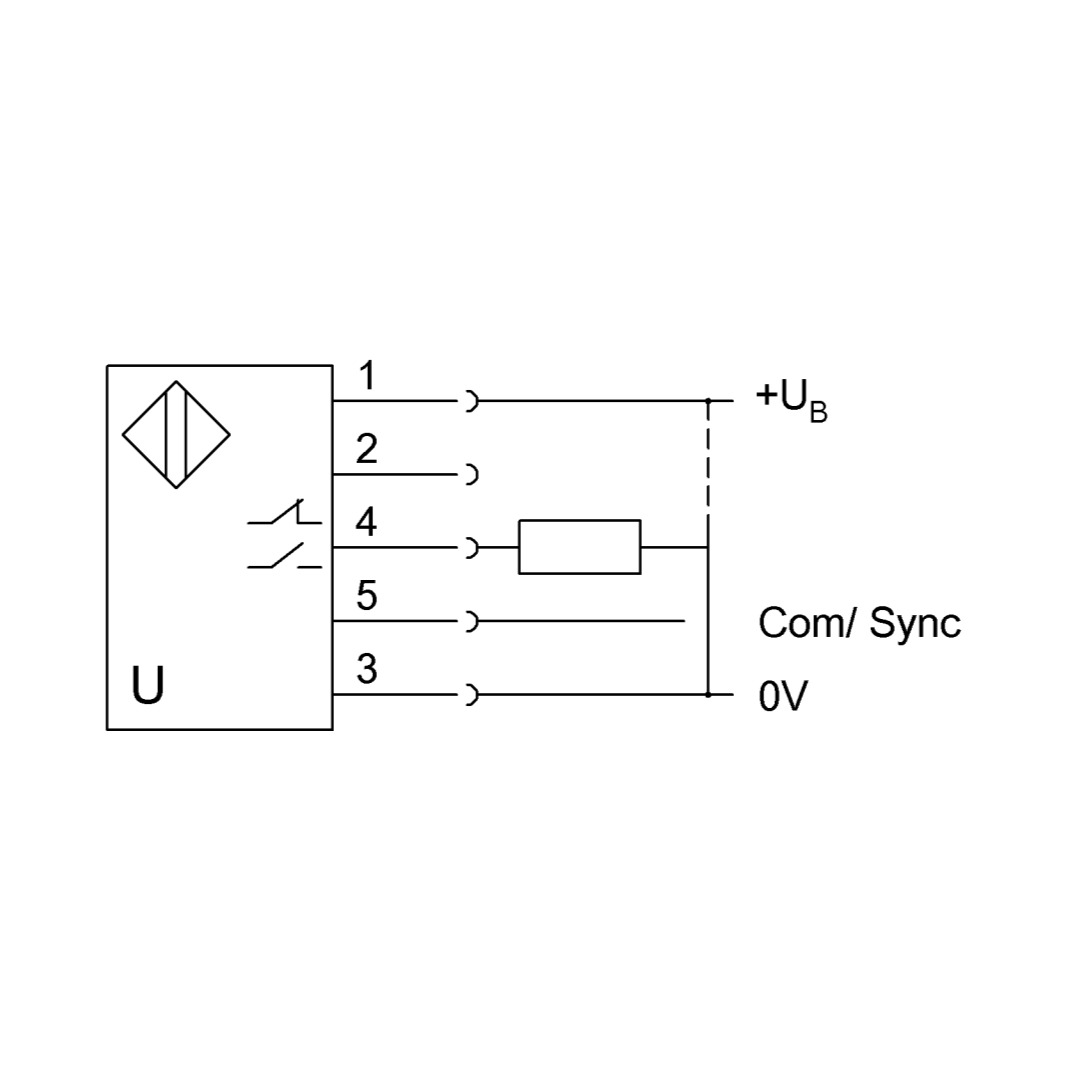

| Switching output | PNP/NPN NO/NC push-pull |

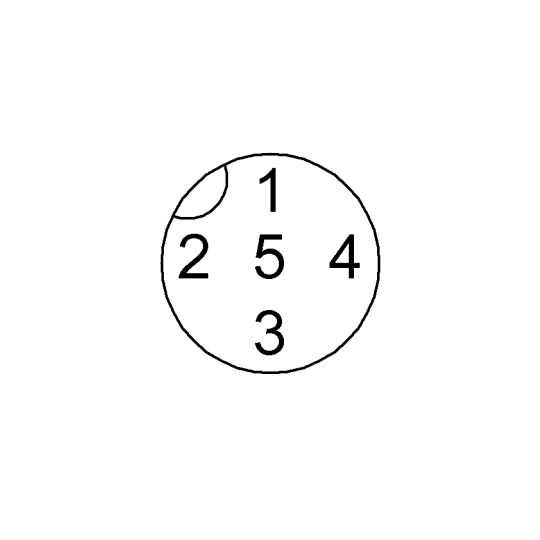

| Connection | Connector, M12x1-Male, 5-pin |
| Housing material | Brass, nickel-plated |
| PBT | |
| Material sensing surface | PU foam/Epoxy resin/Glass |
| Range | 120...1300 mm |
| Switching frequency | 10 Hz |
| Approval/Conformity | cULus |
| CE | CE |
| WEEE | WEEE |
| UKCA | UKCA |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Repeat accuracy | ± 0.15 %FS |
| Operating voltage Ub | 10...30 VDC |
Technical Data Sheet:
1 in stock
