Description:

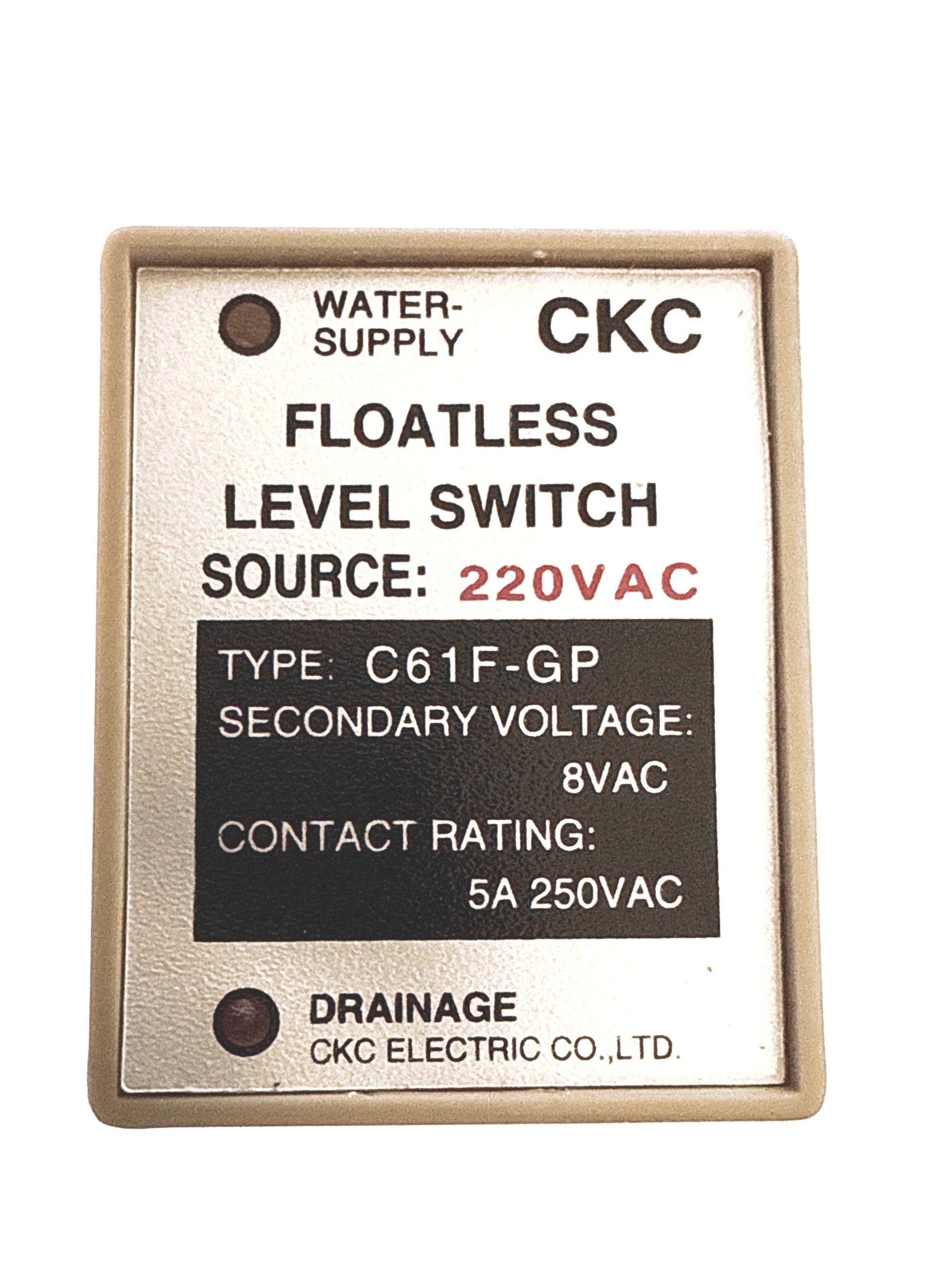

The C61F-GP Floatless Level Switch is a reliable electrode-type liquid level controller designed for automatic control of water supply and drainage. It provides dependable level detection without the need for a mechanical float and is ideal for tanks, wells, and process applications.

Key Features:

• Supply Voltage: 220 VAC
• Secondary Voltage: 8 VAC for probe circuit
• Contact Rating: 5 A @ 250 VAC (resistive load)
• Operation Mode: Water supply or drainage selectable

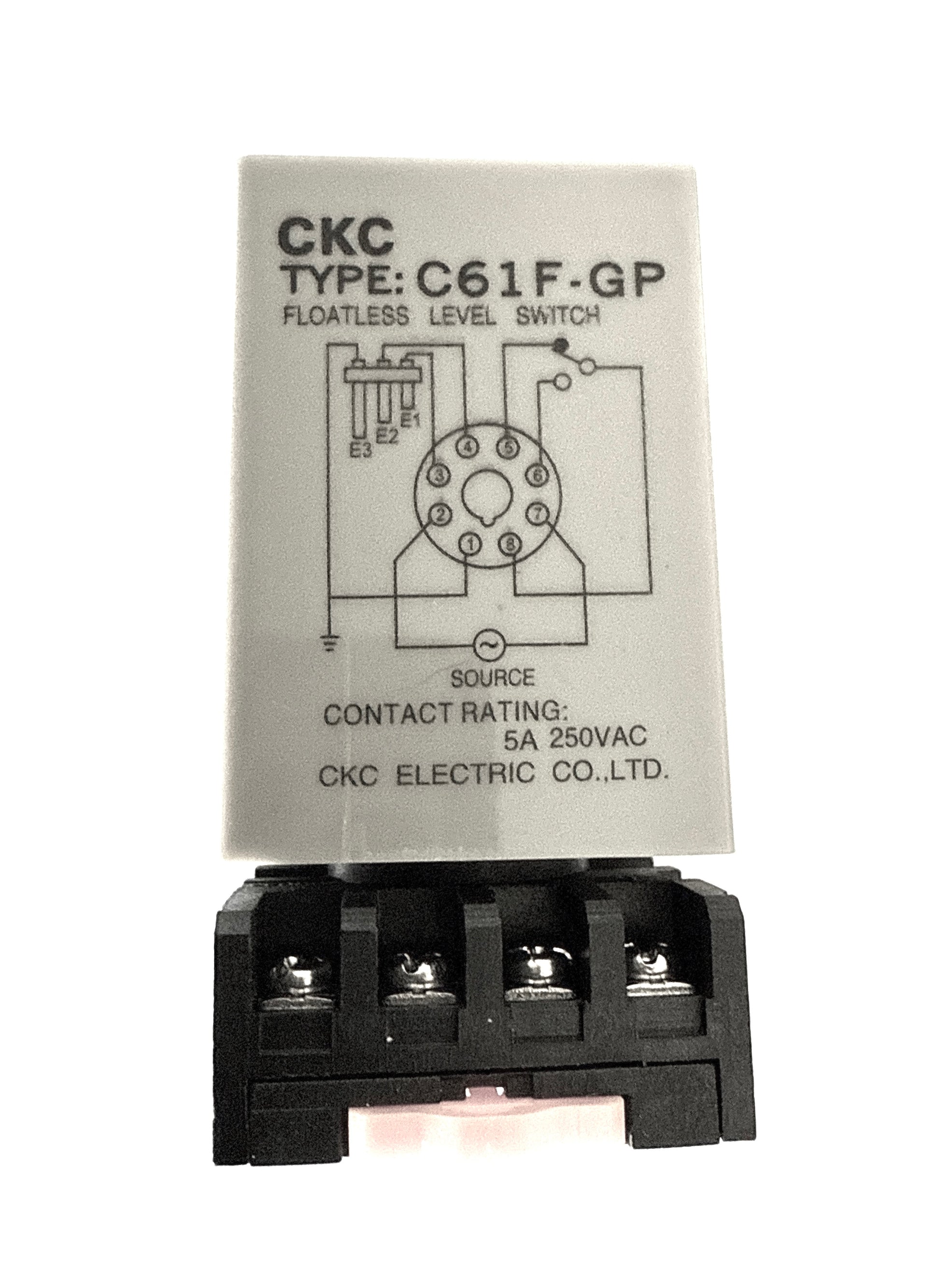

• Electrode Inputs: E1, E2, E3 terminals for water level probes
• Mounting: 8-pin octal base (same as Omron MY relay socket)
• Indication: LED status for Water Supply / Drainage
• Brand: CKC Electric Co., Ltd (Taiwan)

Applications:

• Automatic tank filling and emptying
• Industrial water treatment systems
• Cooling tower and boiler level monitoring
• General liquid level control systems

Included in Box:

• 1 ×   ST 61F-GP Floatless Level Switch
• 1x din mount octal base

Compatible Omron:

61F-GP-N2 (discontinued)
