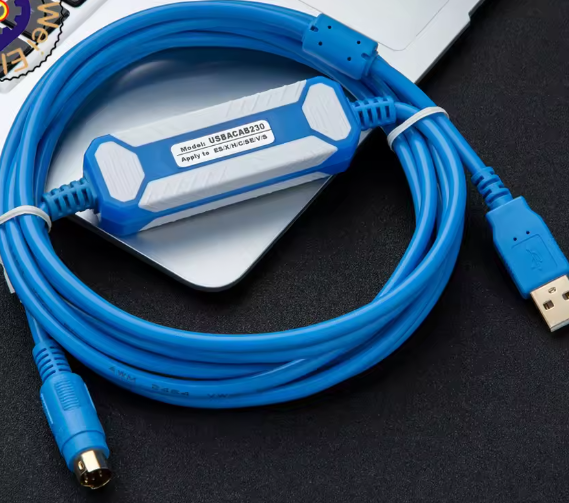

Delta USB-ACAB230 USB(PC) to din(PLC) Programming cable.
Delta USB-ACAB230 USB(PC) to din(PLC) Programming cable.
Price (exc. GST) each
Couldn't load pickup availability

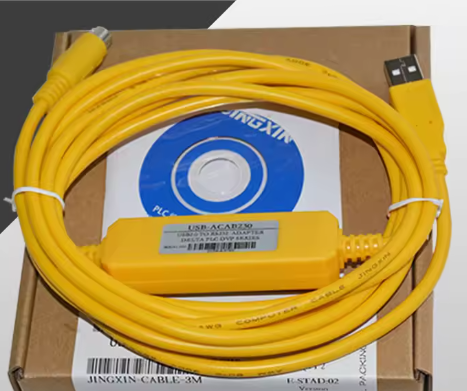

Special order cable and DB9 pinout picture for reference only:
DVP10EC00R3 :USB-ACAB230 for Delta PLC Programming Cable USB TO RS232 Adapter For USB-DVP EC Programming Cable (USB-ACAB230)
Delta DVP-EC3 Programming Cable & Pinout Guide
Welcome to Southern Technology Ltd. — your trusted supplier for Delta Electronics automation solutions. This page provides everything you need to connect and program your Delta DVP-EC3 Series PLCs, including the DVP10EC00R3 model.
🔌 DVP-EC3 Programming Cable (USB-ACAB230)
- Product Name: USB-ACAB230 Programming Cable
- Interface: USB to RS-232 (Mini-DIN 8-Pin)
- Compatible Models: DVP10EC00R3, DVP14EC00R3, DVP20EC00R3, DVP24EC00R3, DVP30EC00R3, DVP32EC00R3, DVP40EC00R3, DVP60EC00R3
- Software Supported: WPLSoft, ISPSoft
- Order Code: ST-USBACAB230
- Availability: 30 days lead time, new stock arriving 20th August.
Features:
- Plug & Play USB interface
- Connects directly to the DVP COM1 (8-pin Mini-DIN)
- No external power supply required
- Works with Delta's ISPSoft and WPLSoft programming environments
🖐 DVP-EC3 Mini-DIN RS-232 Pinout
If you're creating a custom cable or troubleshooting, the following pinout is essential for connecting to the DVP10EC00R3 COM1 Port:

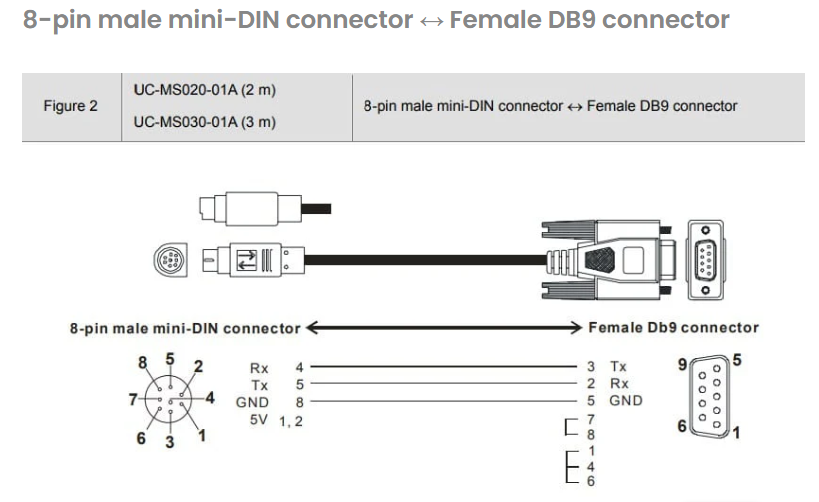

Mini-DIN 8-Pin to DB9 Female RS-232 Wiring Diagram
| Mini-DIN Pin | Signal | DB9 Pin | Function |
|---|---|---|---|
| Pin 3 | Tx | Pin 2 | Transmit Data (PLC to PC) |
| Pin 4 | Rx | Pin 3 | Receive Data (PC to PLC) |
| Pin 5 | GND | Pin 5 | Signal Ground |
| Pin 8 | +5V | - | Internal Power (not connected) |
| Pin 1, 2, 6, 7 | NC | - | Not Connected |
Quick Connection Summary:
- DB9 Pin 2 (Rx) ↔ Mini-DIN Pin 3 (Tx)
- DB9 Pin 3 (Tx) ↔ Mini-DIN Pin 4 (Rx)
- DB9 Pin 5 (GND) ↔ Mini-DIN Pin 5 (GND)
- No handshaking lines are required for programming (DSR, DTR, RTS, CTS are ignored).
Important:
- The COM1 port is RS-232 only.
- RS-485 communication (Modbus RTU) is available through COM2 on select models.
- RS-422 is not natively supported on DVP-EC3 models.
📂 USB Driver Download
Ensure your cable functions correctly by installing the latest Delta USB driver.
🛠 Need Assistance?
Southern Technology Ltd. offers full support for:
- Programming Cable Setup
- Delta ISPSoft / WPLSoft Configurations
- Modbus RTU Network Integration
Trusted by NZ Industry for Automation Solutions
We stock genuine Delta Electronics PLC's and HMI's gear with local support, ready to help you get connected and operational, And compatible branded accessories, if required.
Southern Technology Ltd. - Providing Solutions.
