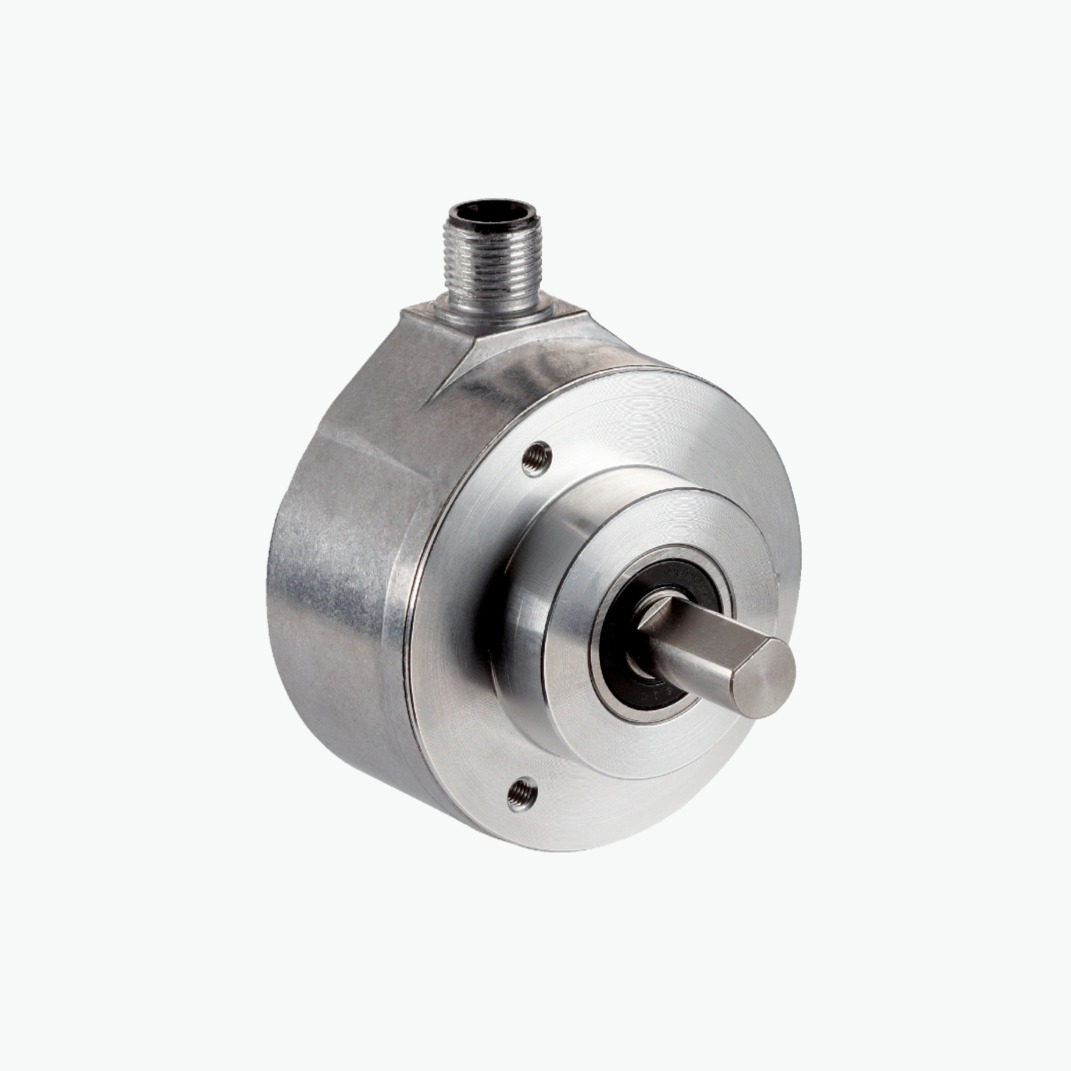

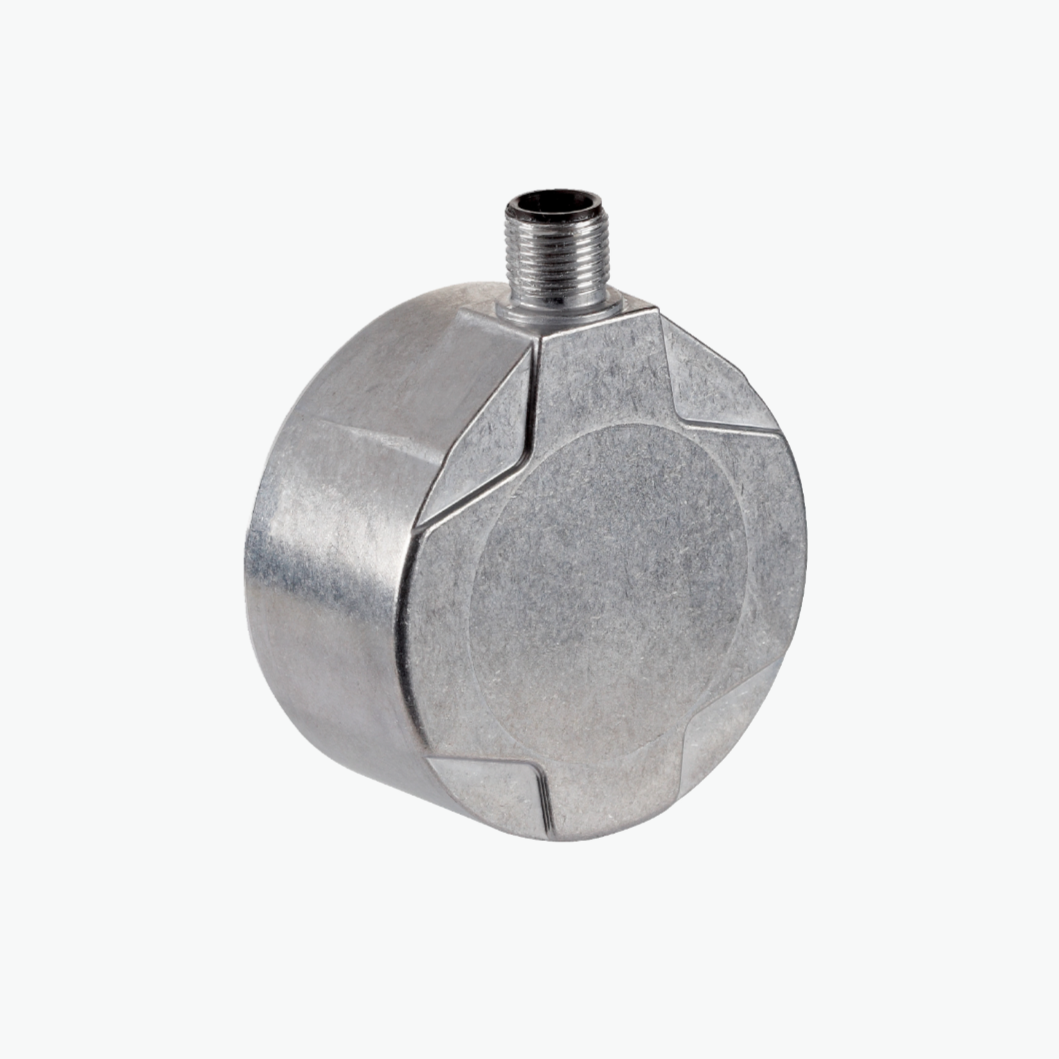

SICK DFS60B-S4PC10000 - Encoders
SICK DFS60B-S4PC10000 - Encoders
Regular price
$813.75 NZD
Regular price
Sale price
$813.75 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Incremental encoder

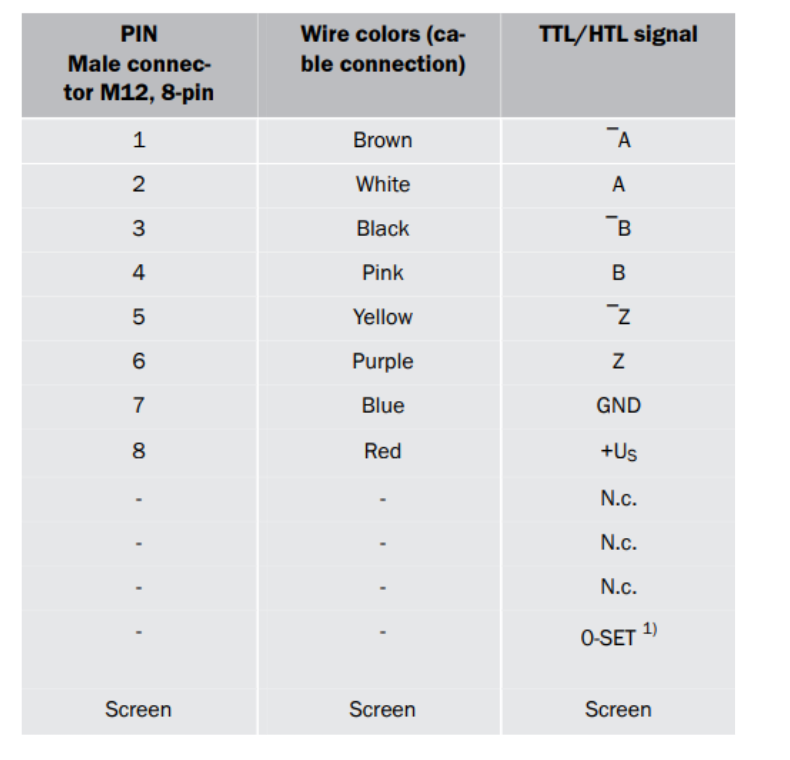

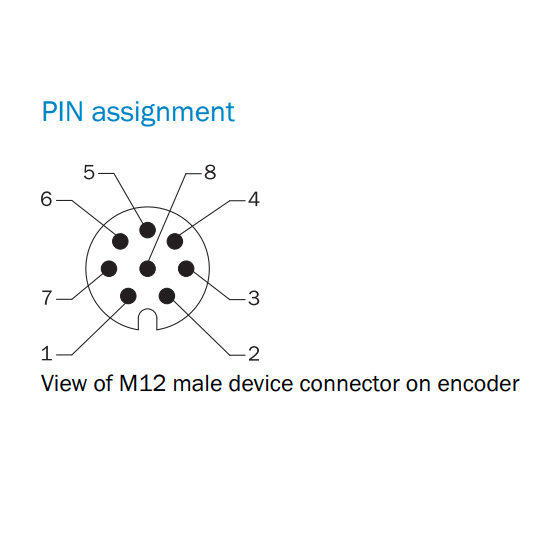

- Connection type Male connector, M12, 8-pin, radial Supply voltage 4.5 ... 32V.
- Please let us know the pulse rate and output type you would like these set to.
- By default we usually have these set to 5000 pulse HTL.
Electrical Data:
| Connection type | Male connector, M12, 8-pin, radial |
| Supply voltage | 4.5 ... 32 V |
| Reference signal, number | 1 |
| Reference signal, position | 90°, electric, logically gated with A and B |
| Reverse polarity protection | ✔ |
| Short-circuit protection of the outputs | ✔ 1) 2) |
| MTTFd: mean time to dangerous failure |
300 years (EN ISO 13849-1) 3) |

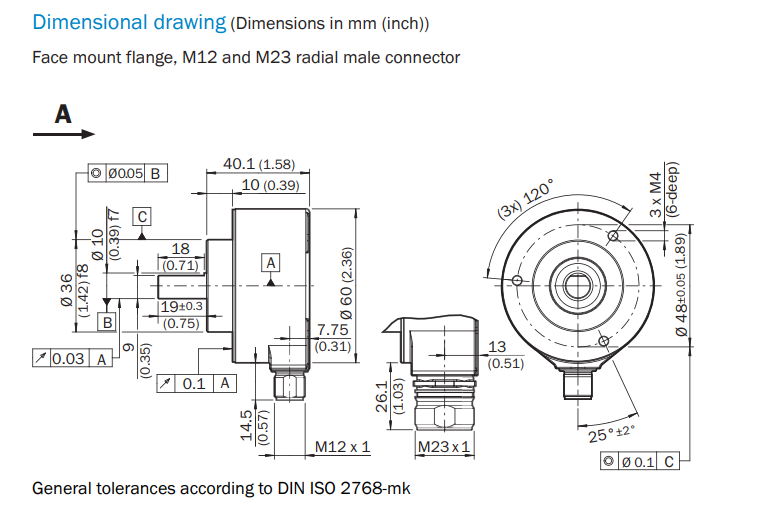

Mechanical Data:
| Mechanical design | Solid shaft, face mount flange |
| Shaft diameter | 10 mm |
| Shaft length | 19 mm |
| Weight | + 0.3 kg |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
| Housing material | Aluminum die cast |
| Start up torque | 0.5 Ncm (+20 °C) |
| Operating torque | 0.3 Ncm (+20 °C) |
| Permissible shaft loading |
80 N (radial) 40 N (axial) |
| Operating speed | ≤ 9,000 min⁻¹ 1) |
| Moment of inertia of the rotor | 6.2 gcm² |
| Bearing lifetime | 3.6 x 10^10 revolutions |
| Angular acceleration | ≤ 500,000 rad/s² |
Compatible Part Numbers:
1036721
DFS60B-S4PC10000
Arrbsystems Arrb Hawkeye 1000 config: 2000p HTL
Arrbsystems Arrb Hawkeye 2000 config: 2000p HTL
Technical Data Sheet:
3 in stock
