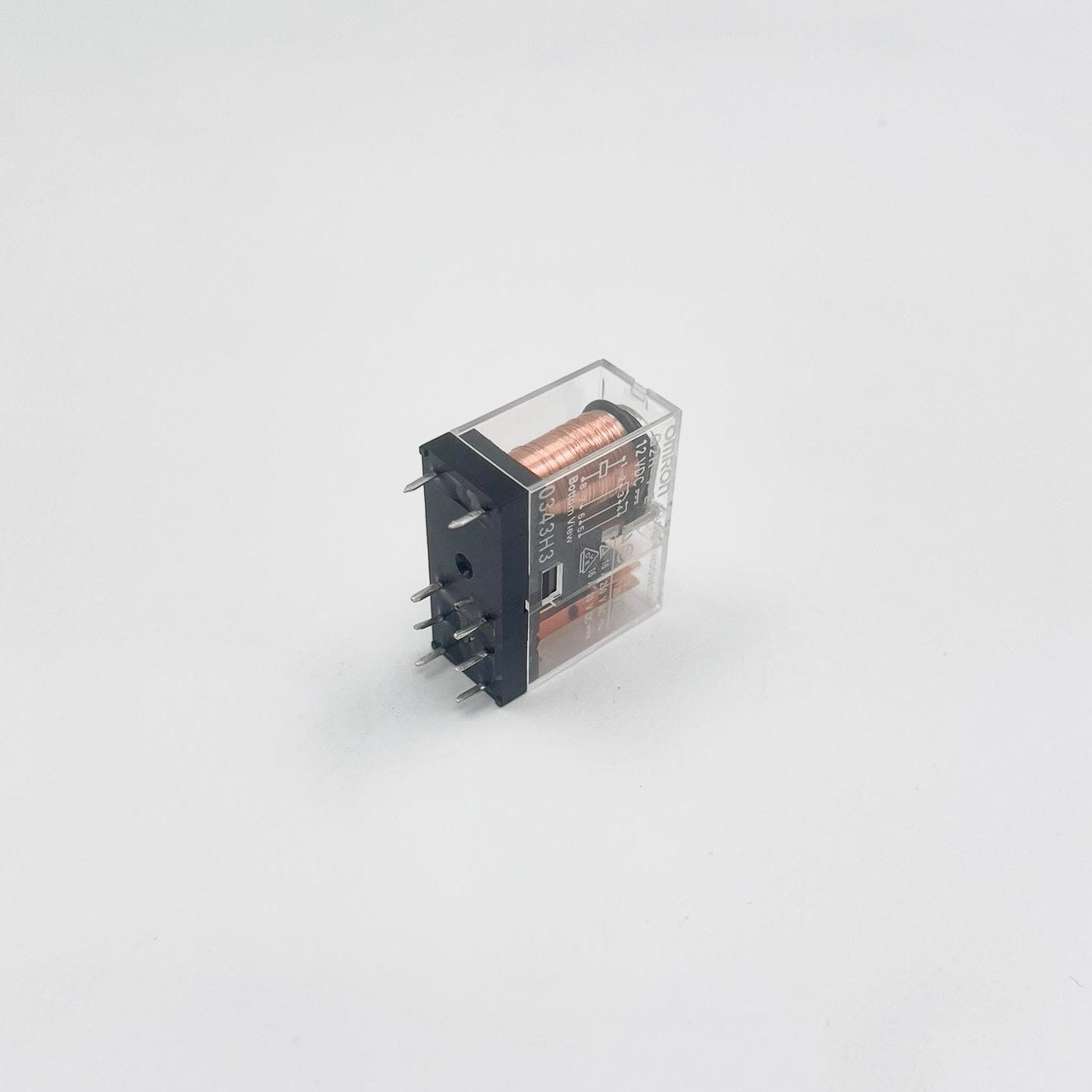

ST Relay G2R-1-E 12V - 8 Pin Plug In Power Relay
ST Relay G2R-1-E 12V - 8 Pin Plug In Power Relay
Regular price
$14.85 NZD
Regular price
Sale price
$14.85 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
ST Relay G2R-1-E 12V
The G2R-1-E 12VDC from the G2R Series is a high-capacity, general-purpose PCB relay designed for reliable performance in a wide range of domestic and commercial applications. With its compact footprint (25.5 mm height x 13 mm width x 29 mm depth) and robust design, this non-latching SPDT relay offers excellent electrical and mechanical characteristics for demanding environments.
Specifications:
| Feature | Specification |
|---|---|
| Contact Configuration | SPDT (1 Form C – NO/NC) |
| Coil Rated Voltage | 12 V DC |
| Coil Rated Current | 43.6 mA |
| Coil Resistance | 275 Ω |
| Must Operate Voltage | ≤ 70% of rated voltage |
| Must Release Voltage | ≥ 15% of rated voltage |
| Max Coil Voltage | 170% of rated voltage at 23°C |
| Dielectric Strength (Coil/Contacts) | 5000 V AC |
| Surge Withstand Voltage | 10,000 V |
| Contact Resistance | ≤ 30 mΩ |
| Operate Time | ≤ 15 ms |
| Release Time | ≤ 5 ms (DC) |
| Vibration Resistance (Destruction) | 10–55 Hz, 0.75 mm amplitude (1.5 mm dbl) |
| Vibration Resistance (Malfunction) | 10–55 Hz, 0.75 mm amplitude (1.5 mm dbl) |
| Shock Resistance (Destruction) | 1000 m/s² |
| Shock Resistance (Malfunction) | 200 m/s² (energised), 100 m/s² (not) |
| Insulation Distance | 8 mm creepage/clearance |
| Protection | Flux protected |
| Operating Temperature | -40°C to +70°C (non-icing) |
| Dimensions (H x W x D) | 25.5 x 13 x 29 mm |
| Weight | Approx. 17 g |
| Approvals | UL508, CSA22.2, EN 61810-1, SEV, SEMKO |
| Compliance | RoHS |
Compatible Part Numbers:
ST Relay G2R-1-E 12V
G2R-1-E 12V
Omron
Technical Datasheet:
5 in stock
