DVP12SE11T - CPU Module - Delta

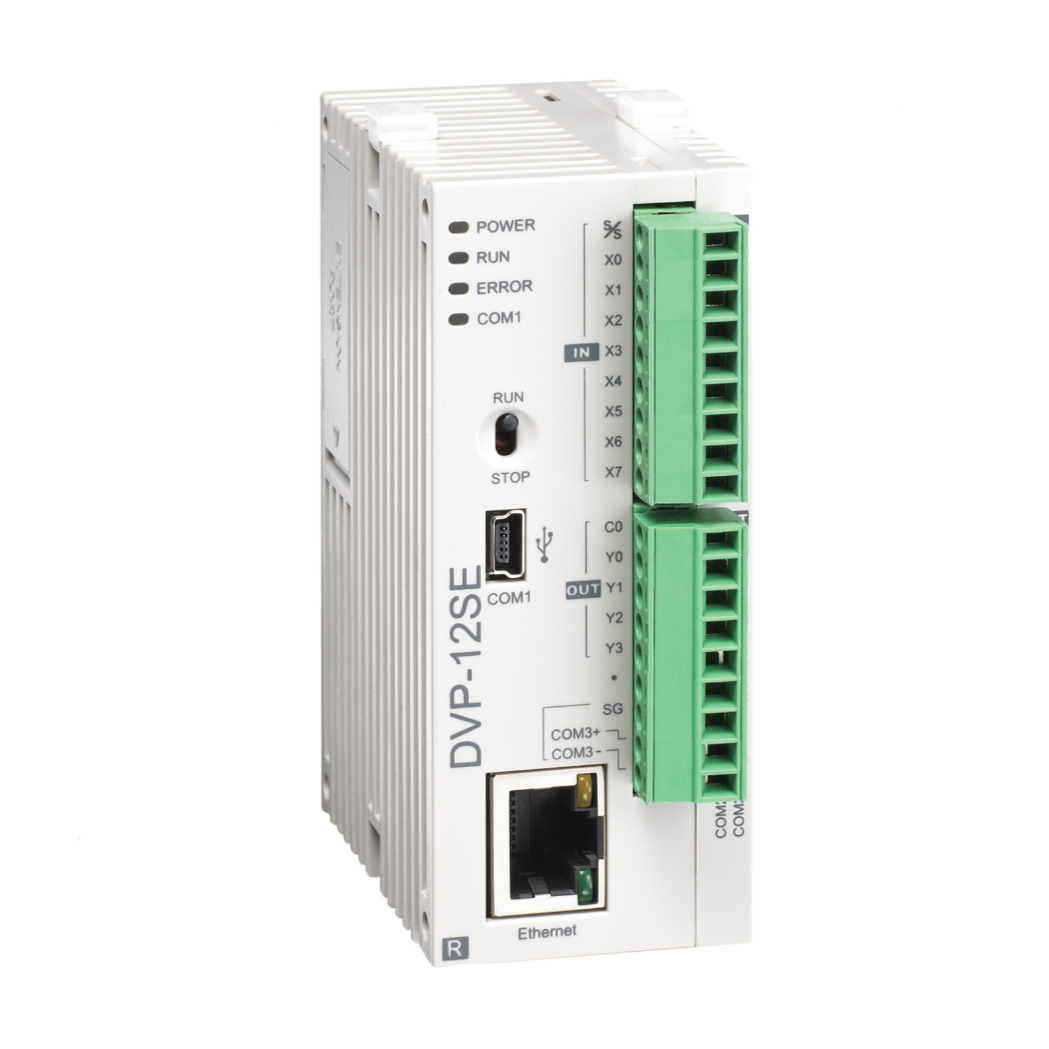

DVP12SE11T - CPU Module

Deltas high-performance, high-speed DVP series PLCs are the most efficient and incorporates communication capabilities. Advantages include numerous built-in convenient commands for easy operation access and communication function monitoring. The module-type unit affords tremendous space-saving, allowing simple, clip-on expansion possibilities. The PLCs high performance and extensive I/O units represent a high-value solution for machine control and industrial automation.

Details: DVP12SE11T

• Supports 2-axis linear and arc interpolation
• High execution speed: LD: 0.64¼, MOV: 2¼
• Built-in mini USB, Ethernet and 2x RS485 com ports
• 8 sets of high-speed counters (2 x 100kHz / 6 x 10kHz)
• Program capacity: 16k steps / data register: 12k words
• Built-in Ethernet supports MODBUS TCP and Ethernet/IP
• 4 sets of of high speed pulse output (2 x 100kHz / 2 x 10kHz)
• MPU points: 12 points (8DI + 4DO) expandable to 480 points
• IP filter function, firewall providing protection from malware and network threats
• Supports DVP-S series left-side (high speed) and right side expansion modules
• No battery required, maintenance free (RTC operates for 15 days after power off)

Technical Data Of DVP12SE11T:

Product Data Sheet:

Instruction Manuals:
