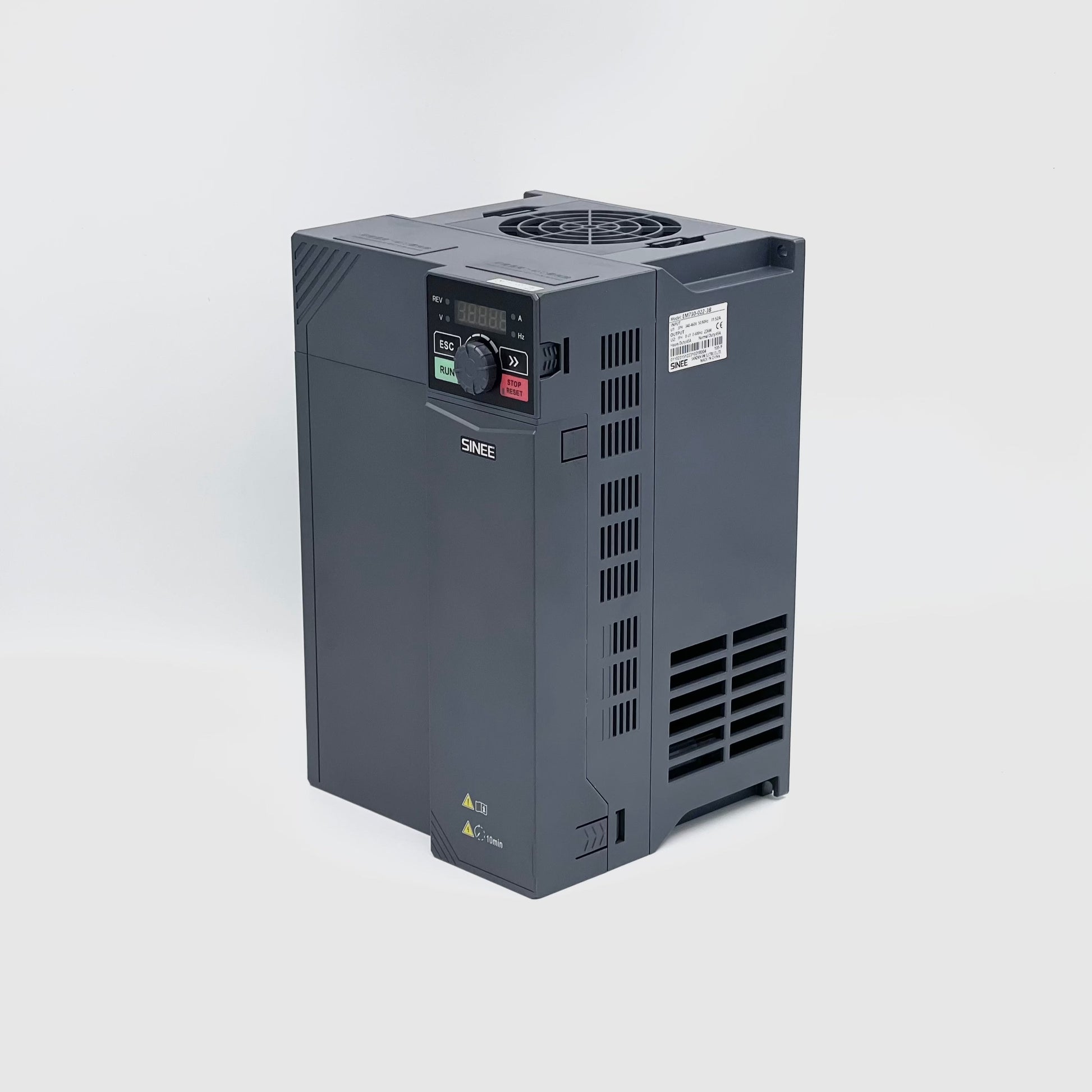

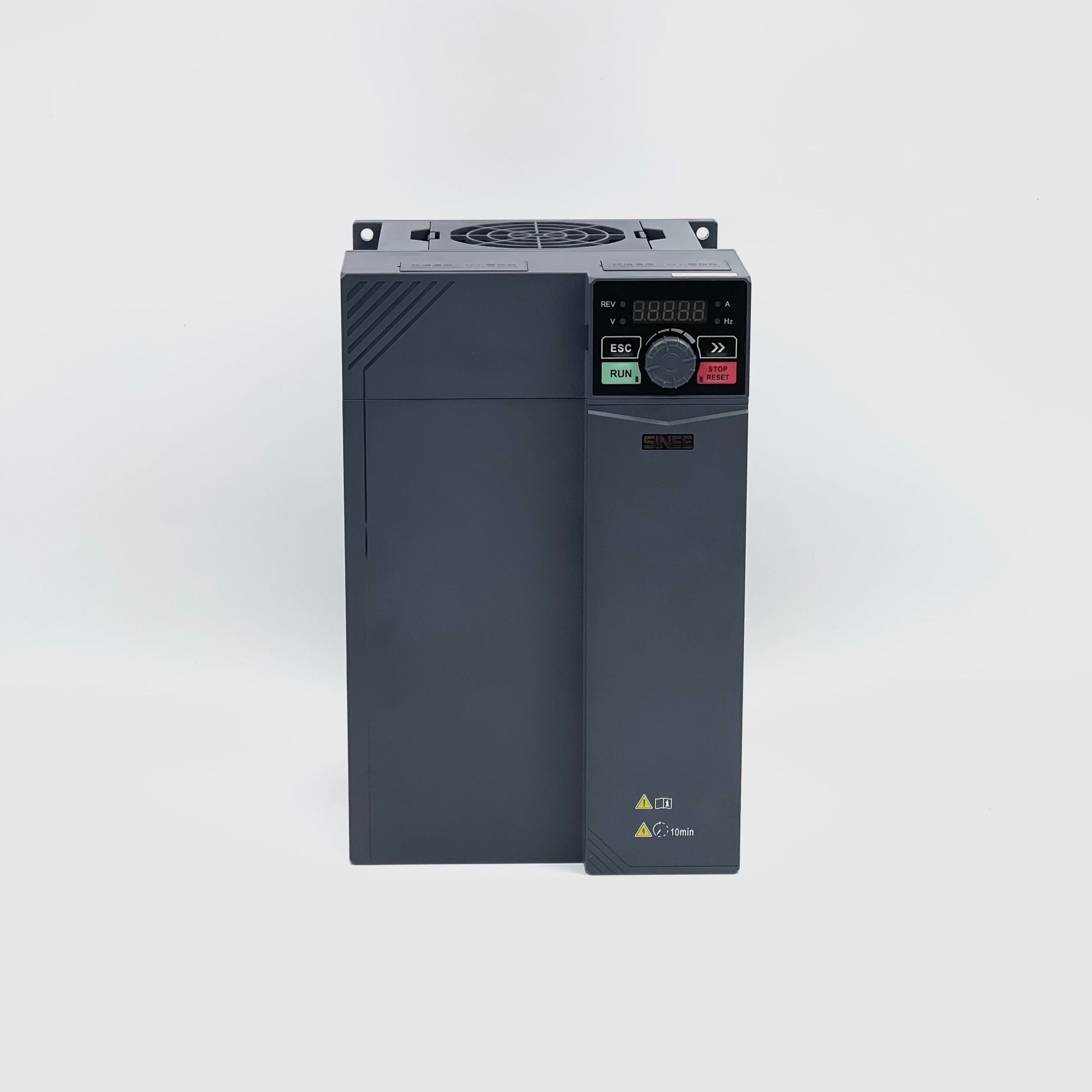

SINEE EM730-022-3B - Frequency Drive 22 kW 380 VAC

The Sinee EM730-022-3B Frequency Drive is a reliable 22kW (30HP) Variable Frequency Drive (VFD) designed for precise motor speed control in demanding industrial applications. Whether you're operating woodworking machinery, food processing lines, packaging equipment, cable production, or fan systems, this high-power VSD (Variable Speed Drive) delivers smooth performance, energy savings, and long-term dependability.

Engineered with advanced control technology, the EM730 series VFD inverter supports both AC asynchronous and permanent magnet synchronous motors. It offers multiple drive control modes including vector VF and sensorless vector control (SVC), making it a versatile and powerful solution for modern motor control requirements. Built to perform in tough environments, it features strong vibration resistance, high-temperature tolerance, and flexible integration with mobile apps, Wi-Fi modules, and standard control systems.

Key Features:

• Power Rating: 22kW (30HP)

• Input Voltage: 380V three-phase

• Output Frequency: Up to 3000Hz for high-speed motor support

• Control Modes: VF (vector control), SVC (sensorless vector control)

• Motor Support: AC asynchronous & PM synchronous motors

• High-Speed Pulse Input: 100kHz pulse input

• Built-in EMC Filter: Close to Level C3

• Ambient Operation: Reliable at full load up to 50°C

• Construction: All-metal baseplate for enhanced vibration tolerance

• Connectivity: Supports Wi-Fi module, mobile app, PC software, and serial port

• Function Code Compatibility: Matches EM500 & A90 series

• Special Functions: Includes functions for rewinding/unwinding

• Flexible Supply Option: Can connect to a 380V inverter via 220V single-phase input for setup

Comprehensive Protection Features:

• Output short-circuit, overcurrent, overload
• Overvoltage, undervoltage, input phase loss
• Overheat and memory failure
• Soft start and current detection abnormalities
• Temperature sensor failure

Alternate Names:

• Variable Speed Drive (VSD)

• Variable Frequency Drive (VFD)

• Frequency Inverter

• AC Motor Drive

• Motor Speed Controller

• Adjustable Speed Drive (ASD)

• Frequency Converter

• Inverter Motor Controller

• Industrial VSD for woodworking, fans, cable machinery

Compatible Replacement For:

Delta -

Mitsubishi -

Hitachi -

Siemens -

ABB -

Yaskawa -

This Sinee drive is a direct functional equivalent to the models listed above, suitable for standard induction motor applications.

Applications:

• Woodworking Machinery

• Food Processing Equipment

• Packing Machinery

• Cable Manufacturing Equipment

• Fan and Hydropower Systems

• Light to Medium Duty Automation Lines

• Rewinding and Unwinding Applications

Why Choose Southern Technology Ltd:

• NZ-based stock and support for VSD & VFD Inverters

• Full technical support and system integration advice

• Competitive pricing on Sinee, Delta, and Mitsubishi Drives

• Fast delivery across New Zealand

• Free compatibility assessment for existing systems

Need Help?

Not sure if this is the right VFD for your motor? Contact our team at Parts@southerntech.co.nz or call us for expert advice on VFD replacements and motor control solutions.
