ENI58IL-S / PF 283627-100092 - Incremental Rotary Encoder
ENI58IL-S / PF 283627-100092 - Incremental Rotary Encoder
Regular price
$0.00 NZD
Regular price
Sale price
$0.00 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

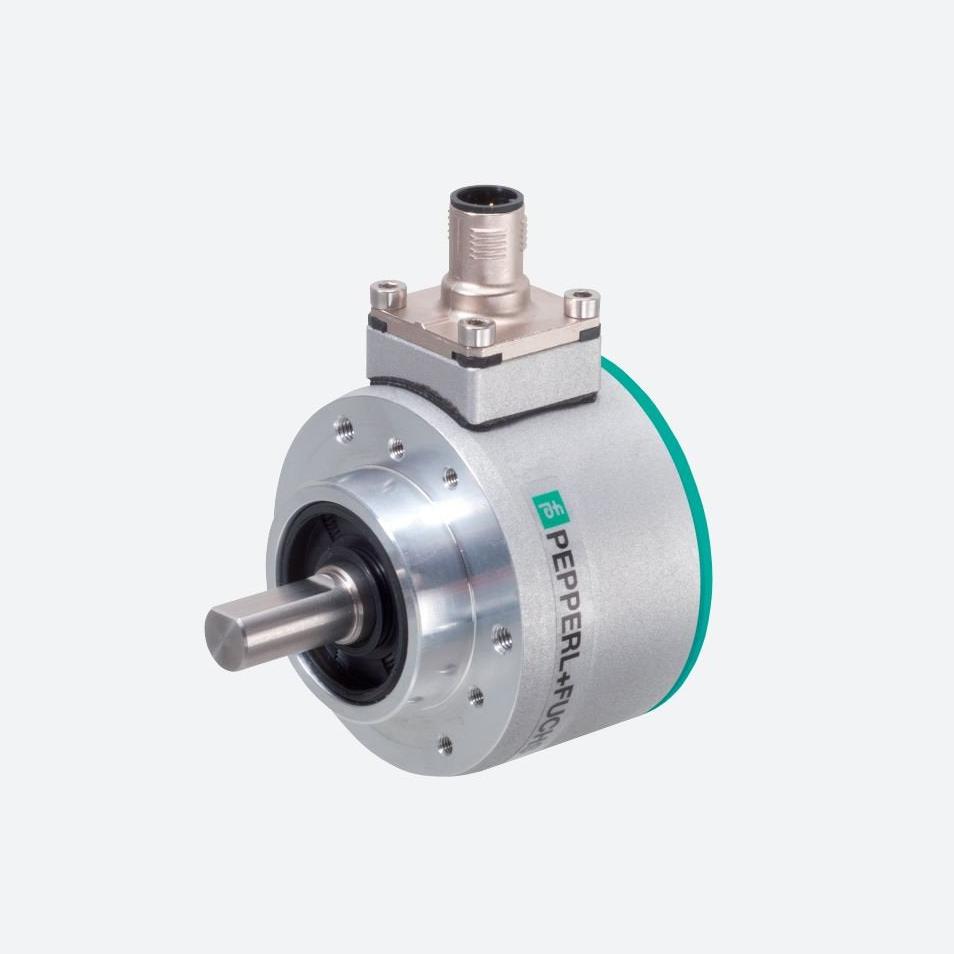

Incremental Rotary Encoder, ENI58IL-S / PF 283627-100092
- Housing ∅ 58 mm
- Solid shaft
- Servo or clamping flange
- Up to 5000 ppr
- Universal output driver
- BlueBeam technology for ultimate precision
Details: ENI58IL-S / PF 283627-100092
The ENI58IL impresses with its modular design, which is available over all mechanical and electrical interfaces. The ENI58IL is the best solution for all common applications, coupled with its high robustness, high reliability and versatility. With the high-precision BlueBeam technology and innovative housing design, the ENI58IL is the new market standard for incremental encoders.
Compatible Part Numbers:
283627-100092
ENI58IL-S
121798
ENI58IL-S10CA5-1024UD1-RC1
Technical Data Sheet:
Datasheet excerpt: Technical data of ENI58IL-S / PF 283627-100092
| General specifications | ||
|---|---|---|
| Detection type | photoelectric sampling | |
| Linearity error | ± 0.025 ° | |
| Pulse count | max. 5000 | |
| Functional safety related parameters | ||
| MTTFd | 140 a | |
| Mission Time (TM) | 20 a | |
| L10 | 70 E+9 at 6000 rpm | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Operating voltage | 4.75 ... 30 V DC | |
| No-load supply current | max. 50 mA | |
| Output | ||
| Output type | push-pull or RS422 (universal output driver, output level depending on input voltage) | |
| Load current | max. per channel 40 mA , short-circuit protected, reverse polarity protected | |
| Output frequency | max. 400 kHz | |
| Rise time | 300 ns | |
| Phase position A to B | ||
| Pulse counts < 3600 | 90 ° ± 9 ° electrical | |
| Pulse counts ≥ 3600 | 90 ° ± 15 ° electrical | |
| Duty cycle | 1/2 ± 10 % | |
| Connection | ||
| Connector | M12 connector, 8-pin M12 connector, 5 pin M23 connector, 12-pin |
|
| Cable | ∅6 mm, 4 x 2 x 0.14 mm2 Fixed cable with M12 plug. 5-pin Fixed cable with M12 plug. 8-pin |
|
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP65, IP67 | |
| Climatic testing | DIN EN 60068-2-78 , no moisture condensation | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Shock resistance | DIN EN 60068-2-27, 300 g, 6 ms | |
| Vibration resistance | DIN EN 60068-2-6, 30 g, 10 ... 2000 Hz | |
| Approvals and certificates | ||
| UL approval | E223176 , cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. For use in NFPA 79 Applications only. adapters providing field wiring on request | |
| Maximum permissible ambient temperature | max. 80 °C (max. 176 °F) | |
| Ambient conditions | ||
| Operating temperature | -40 ... 85 °C (-40 ... 185 °F) , fixed cable -5 ... 85 °C (23 ... 185 °F) , movable cable |
|
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Mechanical specifications | ||
| Material | ||
| Housing | 3.2315 aluminum (AlMgSi1, saltwater-proof) | |
| Flange | 3.2315 aluminum (AlMgSi1, saltwater-proof) | |
| Shaft | Solid shaft Stainless steel | |
| Mass | < 300 g without cable | |
| Rotational speed | max. 12000 min -1 for IP65 , max. 6000 min -1 for IP67 | |
| Moment of inertia | ≤ 35 gcm2 | |
| Starting torque | ≤ 1 Ncm for IP65 , ≤ 2.5 Ncm for IP67 | |
| Shaft load | ||
| Axial | 40 N at max. 6000 min-1 10 N at max. 12000 min-1 |
|
| Radial | 80 N at max. 6000 min-1 20 N at max. 12000 min-1 |
|
| Dimensions | ||
| Diameter | 58.5 mm | |
