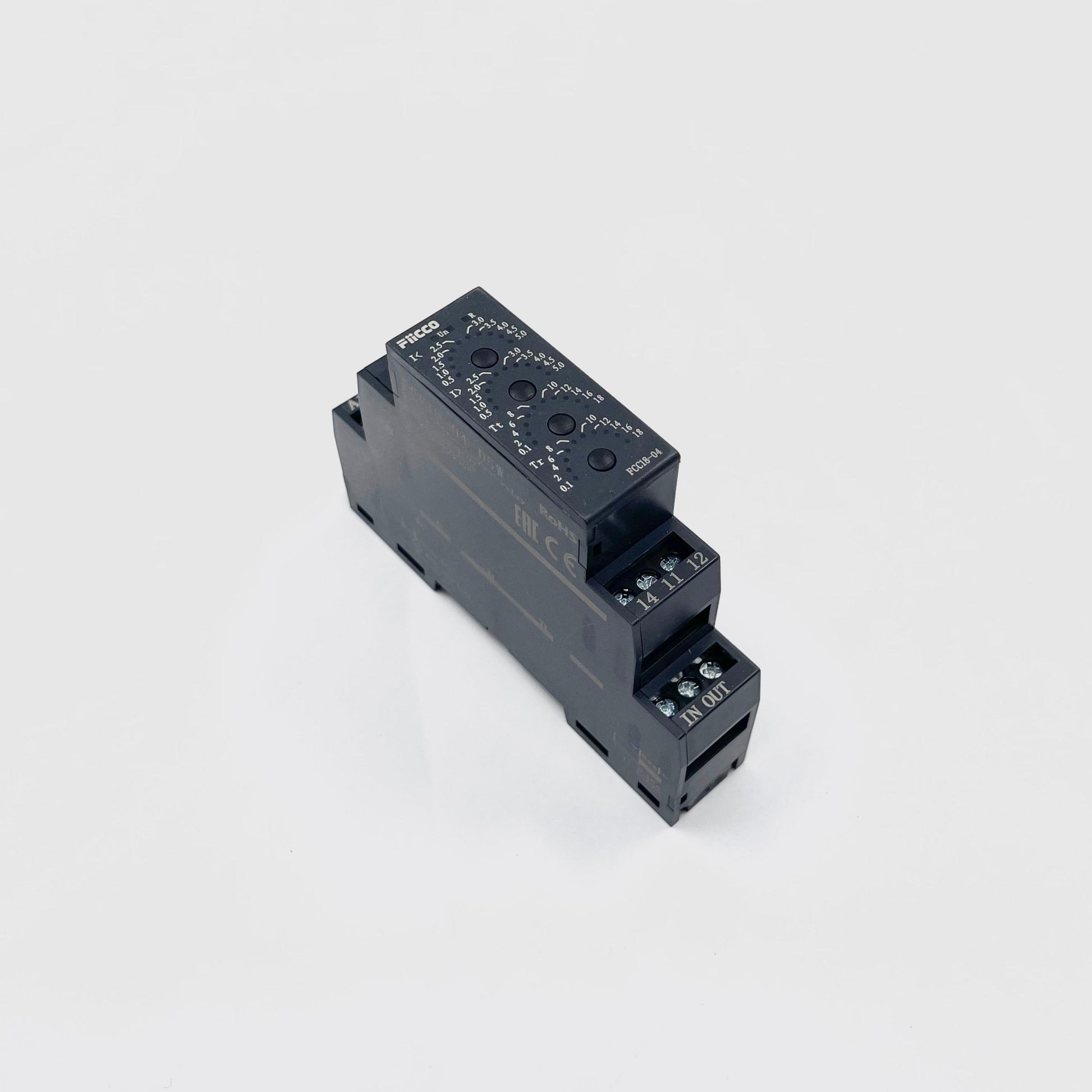

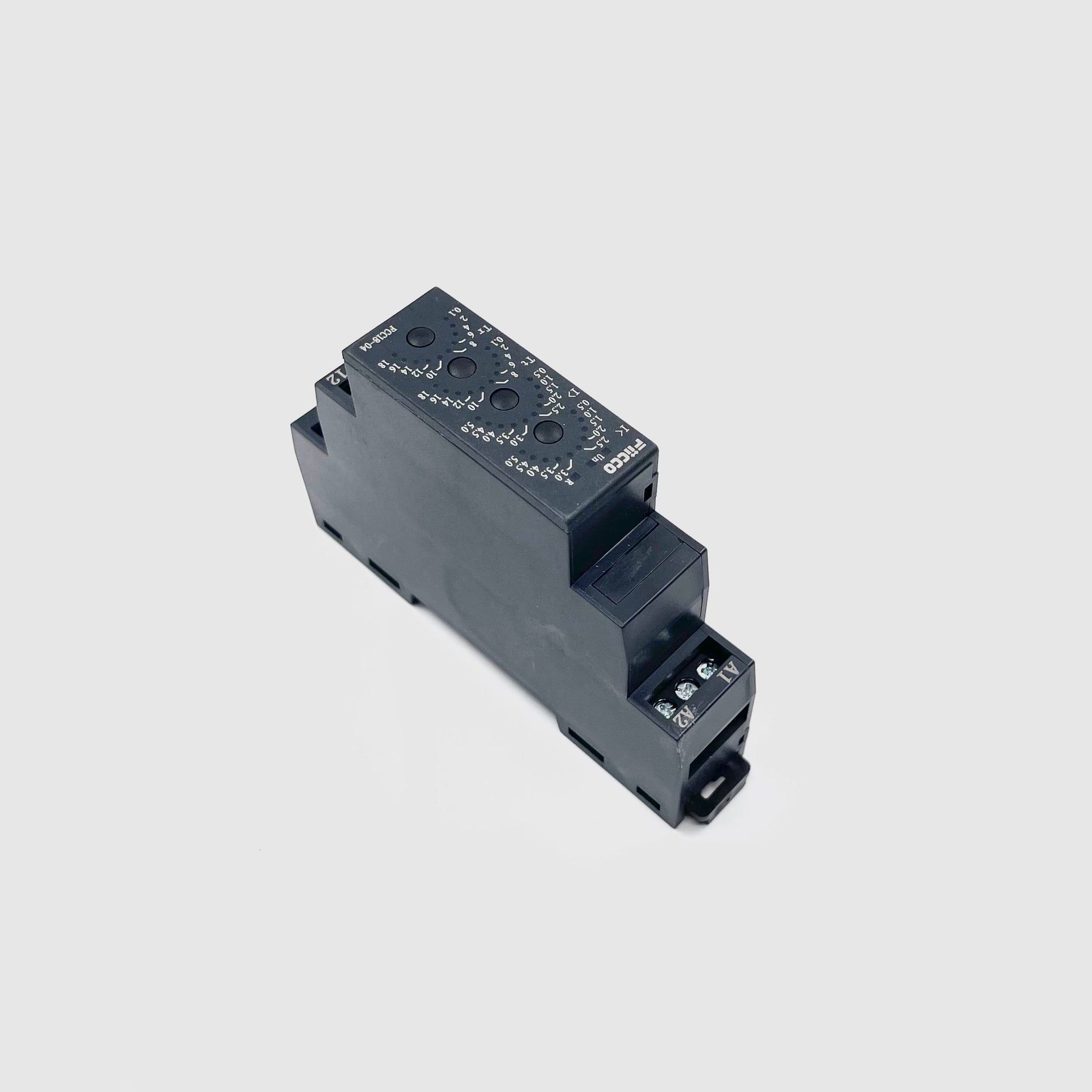

FCC18-04-D5W Over & Under Current Relay - Monitoring Relay
FCC18-04-D5W Over & Under Current Relay - Monitoring Relay
Regular price
$42.68 NZD
Regular price
Sale price
$42.68 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
FCC18-04-D5W
The FCC18-04-D5W Over & Under Current Relay is designed to provide reliable protection against abnormal current levels in industrial and automation systems. With adjustable settings from 0.1 to 20 seconds, a broad input voltage range of AC/DC 12–240V, and precise measurement capability, this relay ensures safe and efficient equipment operation. Compact and DIN rail mountable, it meets international standards and includes clear LED indicators for operational status.
Specifications
| Parameter | Details |
|---|---|
| Input Terminal | A1 - A2 |
| Voltage Range | AC 230V / DC24V / AC/DC 12-240V |
| Power Consumption | AC 3.5VA / DC 2.0W |
| Voltage Tolerance | -15% ~ +10% |
| Supply Indication | Green LED |
| Relay Indication | Red LED |
| Time Ranges | 0.1 s - 20 s |
| Setting | Button |
| Setting Deviation | 0.1% |
| Measurement Accuracy | 5% / $0.1A |
| Temperature Coefficient | 0.05%/°C, at = 20°C (0.05%/°F = 68°F) |
| Output Contact | 1*SPDT |
| Rated Current | 1*16A |
| Mechanical Life | 1*10' |
| Electrical Life | 1*105 |
| Ambient Temperature | -20 ... +60°C / -40 ... +85°C |
| Mounting | DIN rail EN/IEC 60715 |
| IP Rating | IP20 |
| Stripping Length | 7mm (0.28in) |
| Installed Altitude | ≤2200m |
| Pollution Level | 2 |
| Max Cable Size | AWG13-20 0.4N•m |
| Dimensions | 90mm * 18mm * 64mm |
| Weight | About 90g |
| Standards | GB/T 14048.5, IEC60947-5-1, EN6812-1 |
Compatible Part Numbers:
FCC18-04-D5W
FCC18-04 Over & Under
Technical Datasheet:
