FCL18-02W Liquid Level Relay - Monitoring Relay
FCL18-02W Liquid Level Relay - Monitoring Relay
Regular price
$44.26 NZD
Regular price
Sale price
$44.26 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

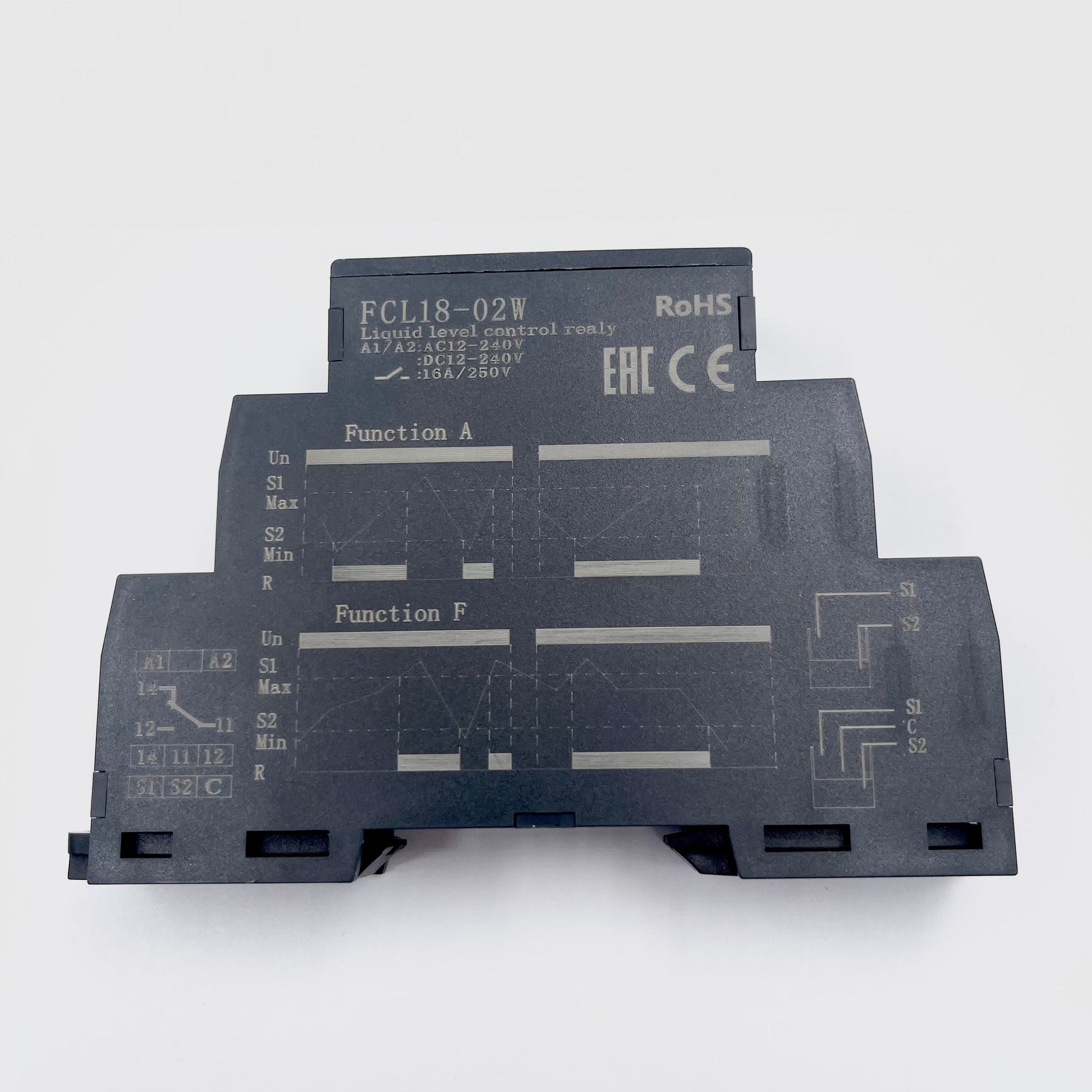

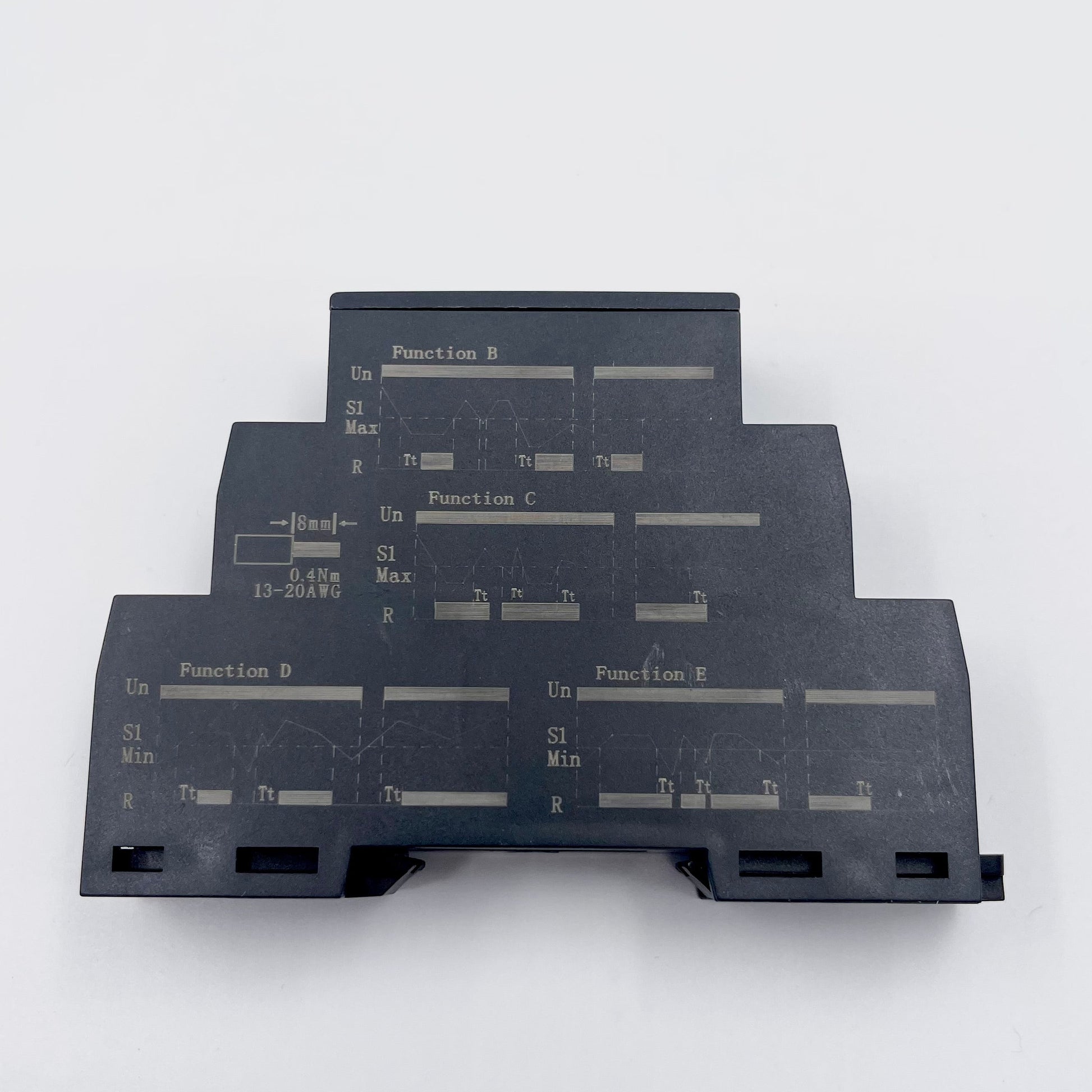

FCL18-02W
The FCL18-02W Liquid Level Relay is designed to monitor and control liquid levels in industrial and automation applications. It features adjustable timing from 0.1 to 20 seconds, a wide input voltage range of AC/DC 12–240V, and reliable SPDT output contacts. With compact DIN rail mounting, LED status indicators, and compliance with international standards, this relay ensures accurate level detection and dependable operation.
Specifications:
| Parameter | Details |
|---|---|

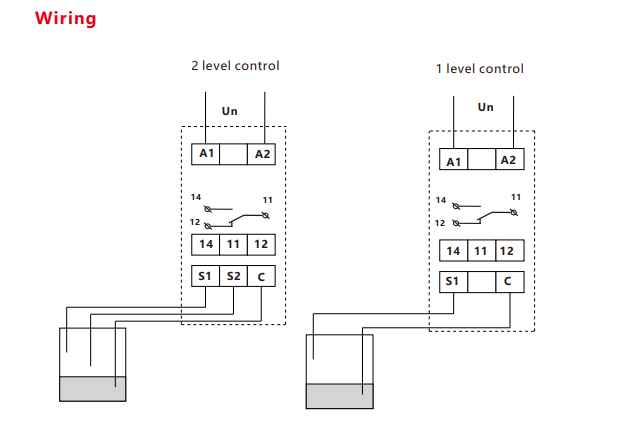

| Input Terminal | A1 - A2 |
| Voltage Range | AC 230V / DC24V / AC/DC 12-240V |
| Power Consumption | AC 3.5 VA / DC 2.0W |
| Voltage Tolerance | -15% ~ +10% |
| Supply Indication | Green LED |
| Relay Indication | Red LED |

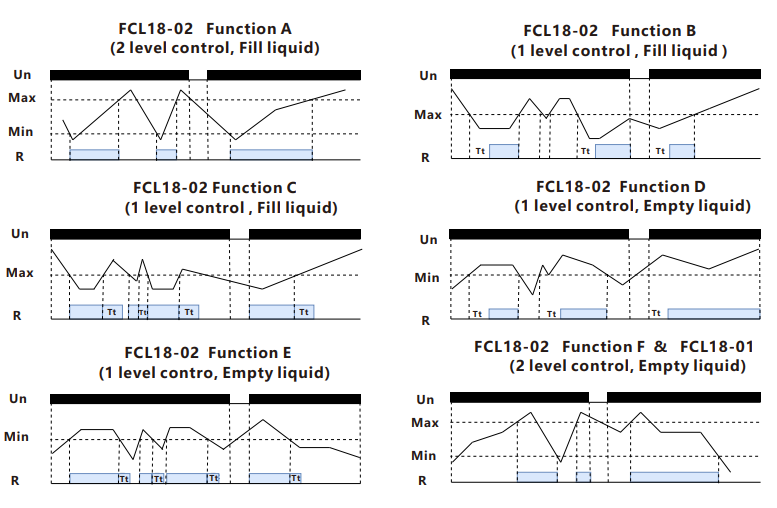

| Time Ranges | 0.1 s - 20 s |
| Time Setting | Button |
| Time Deviation | 0.1% |
| Repeat Accuracy | ≤1% |
| Temperature Coefficient | 0.05%/°C, at = 20°C (0.05%/°F, = 68°F) |
| Output Contact | 1 *SPDT |
| Rated Current | 1*16A |
| Mechanical Life | 1*10' |
| Electrical Life | 1*105 |
| Ambient Temperature | -20 ... +60 °C / -40 ... +85 °C |
| Mounting | DIN rail EN/IEC 60715 |
| IP Rating | IP20 |
| Stripping Length | 7mm (0.28in) |
| Installed Altitude | ≤2200m |
| Pollution Level | 2 |
| Max Cable Size | AWG13-20 0.4N-m |
| Dimensions | 90mm * 18mm * 64mm |
| Weight | About 90g |
| Standards | GB/T 14048.5, IEC60947-5-1, EN6812-1 |
Compatible Part Numbers:
FCL18-02W
FCL18-02 Liquid Level Relay
Technical Datasheet:
