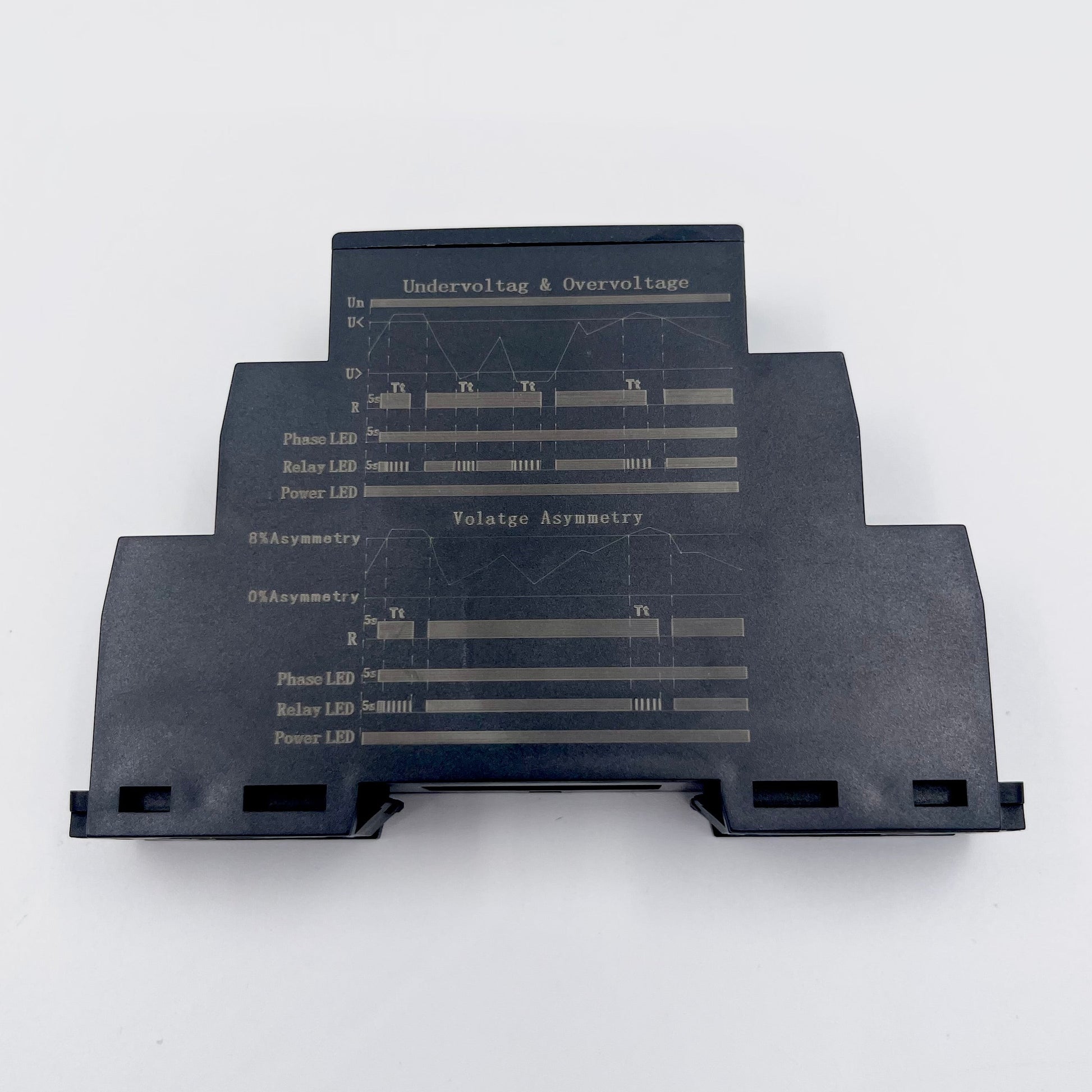

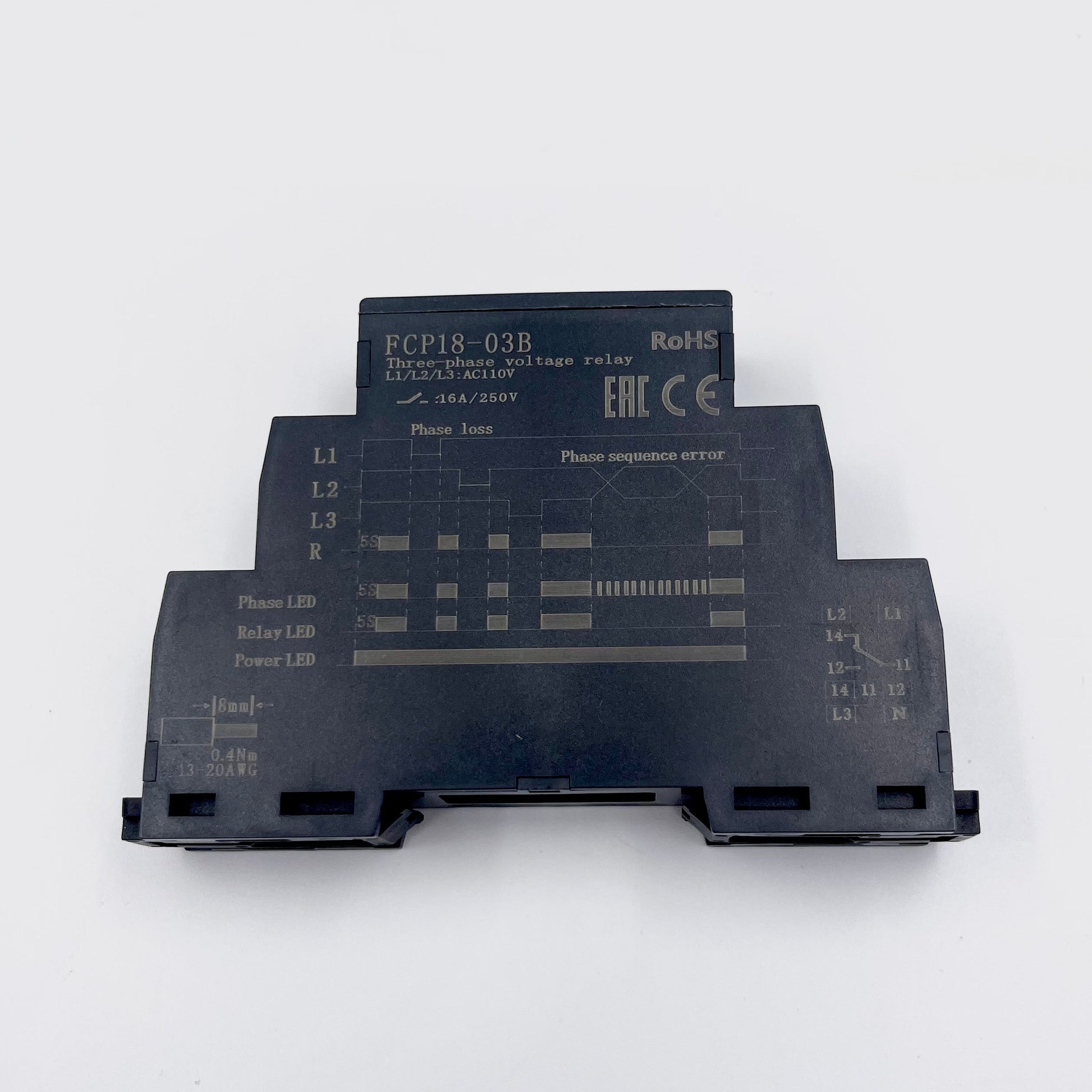

FCP18-03-B Protection Relay - Monitoring Relay
FCP18-03-B Protection Relay - Monitoring Relay
Regular price
$47.42 NZD
Regular price
Sale price
$47.42 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
FCP18-03-B
The FCP18-03-B Protection Relay is engineered for voltage and phase monitoring in industrial systems. Designed to protect equipment from abnormal conditions, it supports a wide supply frequency range of 45Hz to 65Hz, precise timing adjustment between 0.15 and 30 seconds, and reliable output switching. With compact DIN rail mounting, LED indicators, and compliance with international standards, it ensures dependable operation in demanding environments.
Specifications
| Parameter | Details |
|---|---|
| Monitoring Terminal | L1 - L2 - L3 - N |
| Supply Terminal | L1 - L2 - L3 - N |
| Rated Supply Frequency | 45Hz - 65Hz |
| Voltage Tolerance | 15% ~ +10% |
| Supply Indication | Green LED |
| Relay Indication | Red LED |
| Time Ranges | 0.15 - 30 s |
| Time Setting Method | Button |
| Time Deviation | 0.1% |
| Repeat Accuracy | 1% |
| Temperature Coefficient | 0.05%/°C, at = 20°C (0.05%/°F, = 68°F) |
| Output Contact | 1*SPDT |
| Rated Current | 1*16A |
| Mechanical Life | 1*10' |
| Electrical Life | 1*105 |
| Ambient Temperature | -20 ... +60°C / -40 ... +85°C |
| Mounting | DIN rail EN/IEC 60715 |
| IP Rating | IP20 |
| Stripping Length | 7mm (0.28in) |
| Installed Altitude | ≤2200m |
| Pollution Level | 2 |
| Max Cable Size | AWG13-20 0.4N-m |
| Dimensions | 90mm * 18mm * 64mm |
| Weight | About 90g |
| Standards | GB/T 14048.5, IEC60947-5-1, EN6812-1 |
Compatible Part Numbers:
FCP18-03-B
FCP18-03-B Protection Relay
Technical Datasheet:
