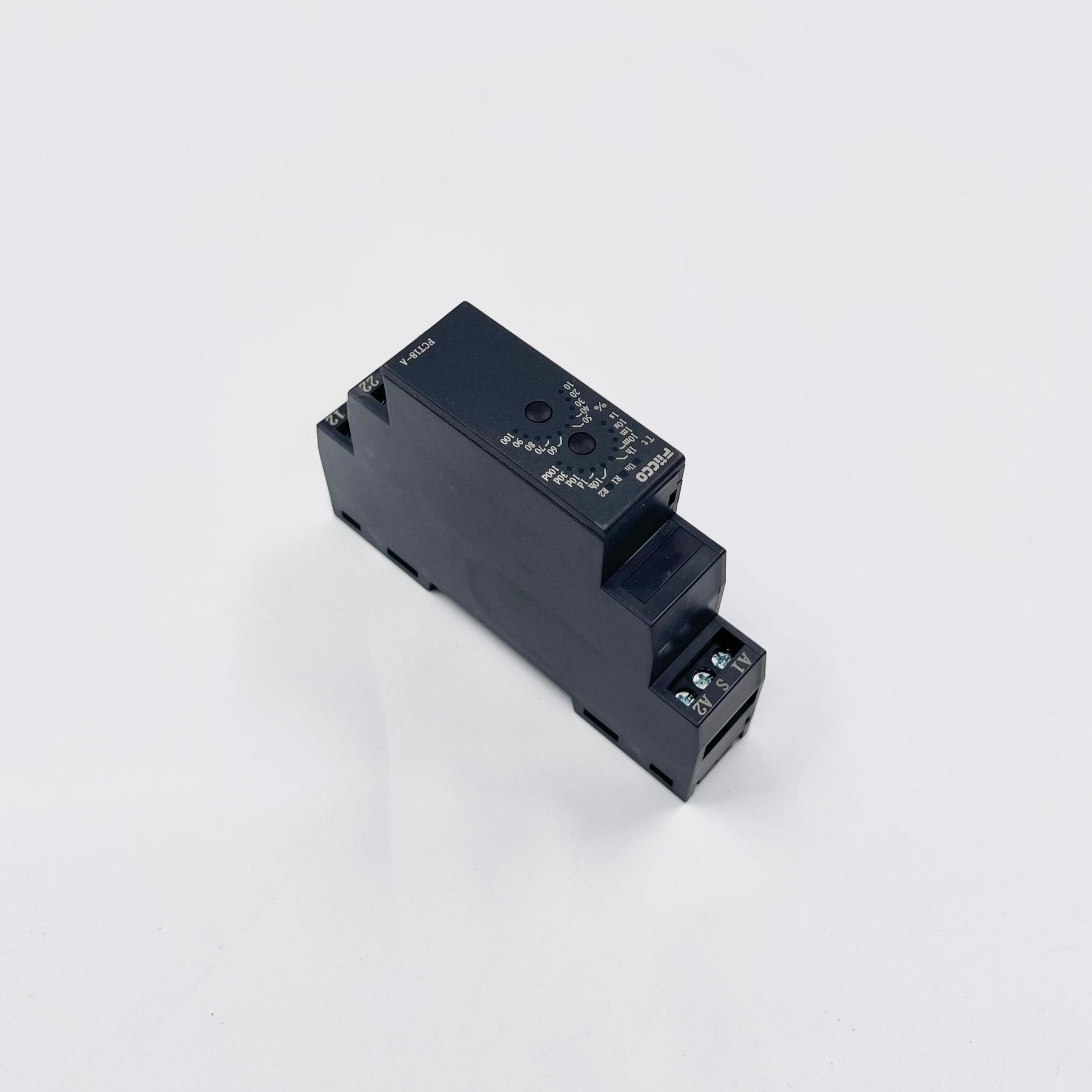

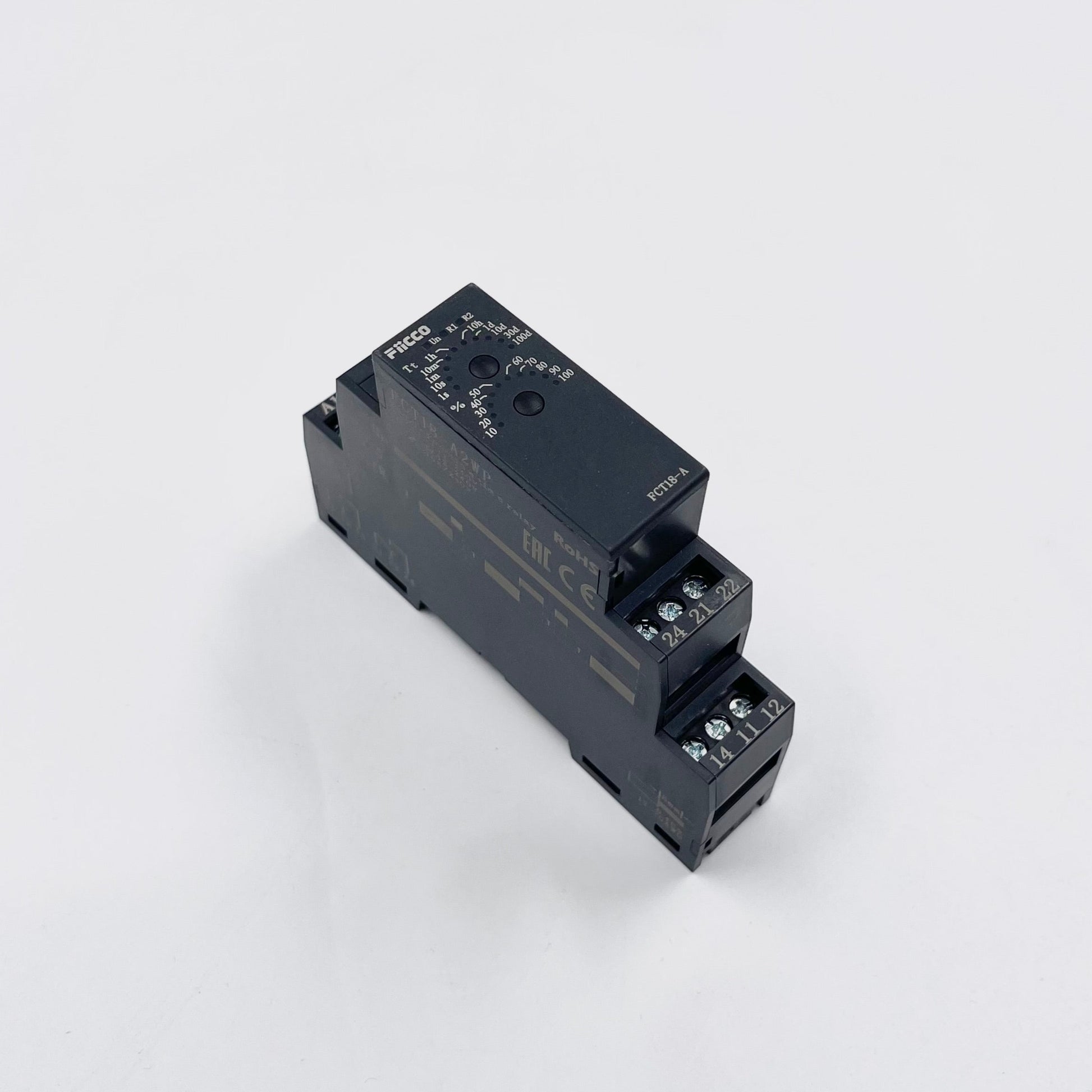

FCT18-A2WP On-Delay Timer Relay - Monitoring Relay
FCT18-A2WP On-Delay Timer Relay - Monitoring Relay
Regular price
$41.12 NZD
Regular price
Sale price
$41.12 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
FCT18-A2WP
The FCT18-A2WP On-Delay Timer Relay is engineered for reliable timing control in automation and monitoring applications. With a broad input voltage range of AC/DC 12–240V, selectable output contacts, and flexible time settings from 0.1 seconds to 100 days, it ensures precision and versatility. Its compact DIN rail design and LED indicators for supply and relay status provide easy installation and operation, while compliance with international standards guarantees long-lasting performance in demanding environments.
Specifications
| Parameter | Details |
|---|---|
| Input Terminal | A1 - A2 |
| Voltage Range | AC 230V / DC24V / AC/DC 12-240V |
| Power Consumption | AC 3.5 VA / DC 2.0 W |
| Voltage Tolerance | -15% ~ +10% |
| Supply Indication | Green LED |
| Relay Indication | Red LED |
| Time Ranges | 0.1 s - 100 days |
| Time Setting | Button |
| Time Deviation | 0.1% |
| Repeat Accuracy | 0.5% |
| Temperature Coefficient | 0.05%/°C, at = 20°C (0.05%/°F = 68°F) |
| Output Contact | 1SPDT / 2SPDT |
| Rated Current | 116A / 216A |
| Mechanical Life | 1*10' |
| Electrical Life | 1*105 |
| Ambient Temperature | -20 ... +60°C / -40 ... +85°C |
| Mounting | DIN rail EN/IEC 60715 |
| IP Rating | IP20 |
| Stripping Length | 7mm (0.28in) |
| Installed Altitude | ≤2200m |
| Pollution Level | 2 |
| Max Cable Size | AWG13-20 0.4N.m |
| Dimensions | 90mm * 18mm * 64mm |
| Weight | about 90g |
| Standards | GB/T 14048.5, IEC60947-5-1, EN6812-1 |
Compatible Part Numbers:
FCT18-A2WP
FCT18-A2 On-Delay Timer
Technical Datasheet:
