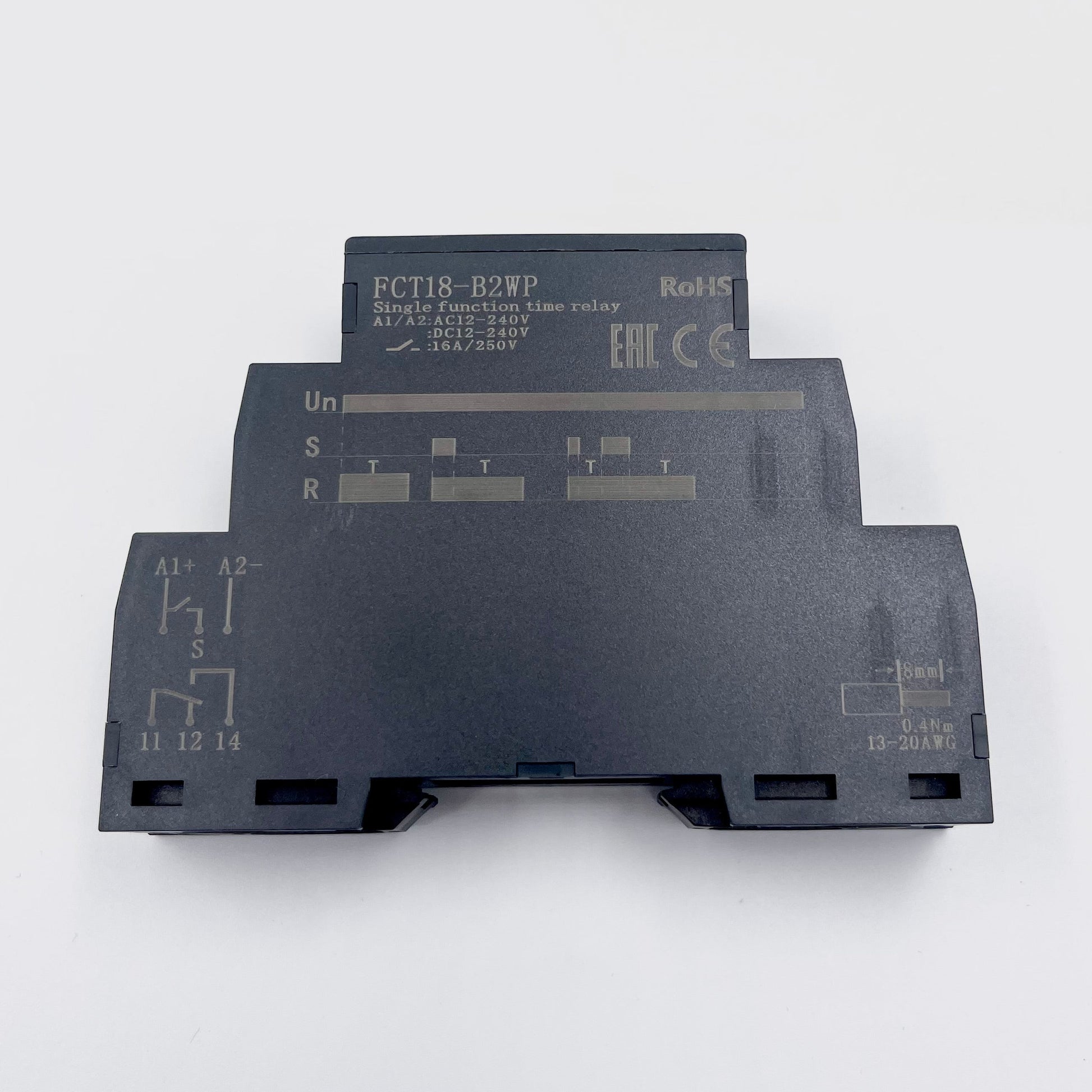

FCT18-B2WP Off-Delay Timer Relay - Monitoring Relay
FCT18-B2WP Off-Delay Timer Relay - Monitoring Relay
Regular price
$41.12 NZD
Regular price
Sale price
$41.12 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
FCT18-B2WP
The FCT18-B2WP Off-Delay Timer Relay is designed to deliver precise off-delay timing control for a wide range of industrial and monitoring applications. With its versatile AC/DC 12–240V input voltage range, selectable output contact options, and time settings adjustable from 0.1 seconds to 100 days, this relay provides flexibility and reliability. Its compact DIN rail design, clear LED status indicators, and compliance with international standards make it a dependable choice for automation systems.
Specifications
| Parameter | Details |
|---|---|
| Input Terminal | A1 - A2 |
| Voltage Range | AC 230V / DC24V / AC/DC 12-240V |
| Power Consumption | AC 3.5VA / DC 2.0W |
| Voltage Tolerance | -15% ~ +10% |
| Supply Indication | Green LED |
| Relay Indication | Red LED |
| Time Ranges | 0.1 s - 100 days |
| Time Setting | Button |
| Time Deviation | 0.1% |
| Repeat Accuracy | 0.5% |
| Temperature Coefficient | 0.05%/°C, at = 20°C (0.05%/°F = 68°F) |
| Output Contact | 1SPDT / 2SPDT |
| Rated Current | 116A / 216A |
| Mechanical Life | 1*10' |
| Electrical Life | 1*105 |
| Ambient Temperature | -20 ... +60°C / -40... +85°C |
| Mounting | DIN rail EN/IEC 60715 |
| IP Rating | IP20 |
| Stripping Length | 7mm (0.28in) |
| Installed Altitude | ≤2200m |
| Pollution Level | 2 |
| Max Cable Size | AWG13-20 0.4N•m |
| Dimensions | 90mm * 18mm * 64mm |
| Weight | about 90g |
| Standards | GB/T 14048.5, IEC60947-5-1, EN6812-1 |
Compatible Part Numbers:
FCT18-B2WP
FCT18-B2 Off-Delay Timer
