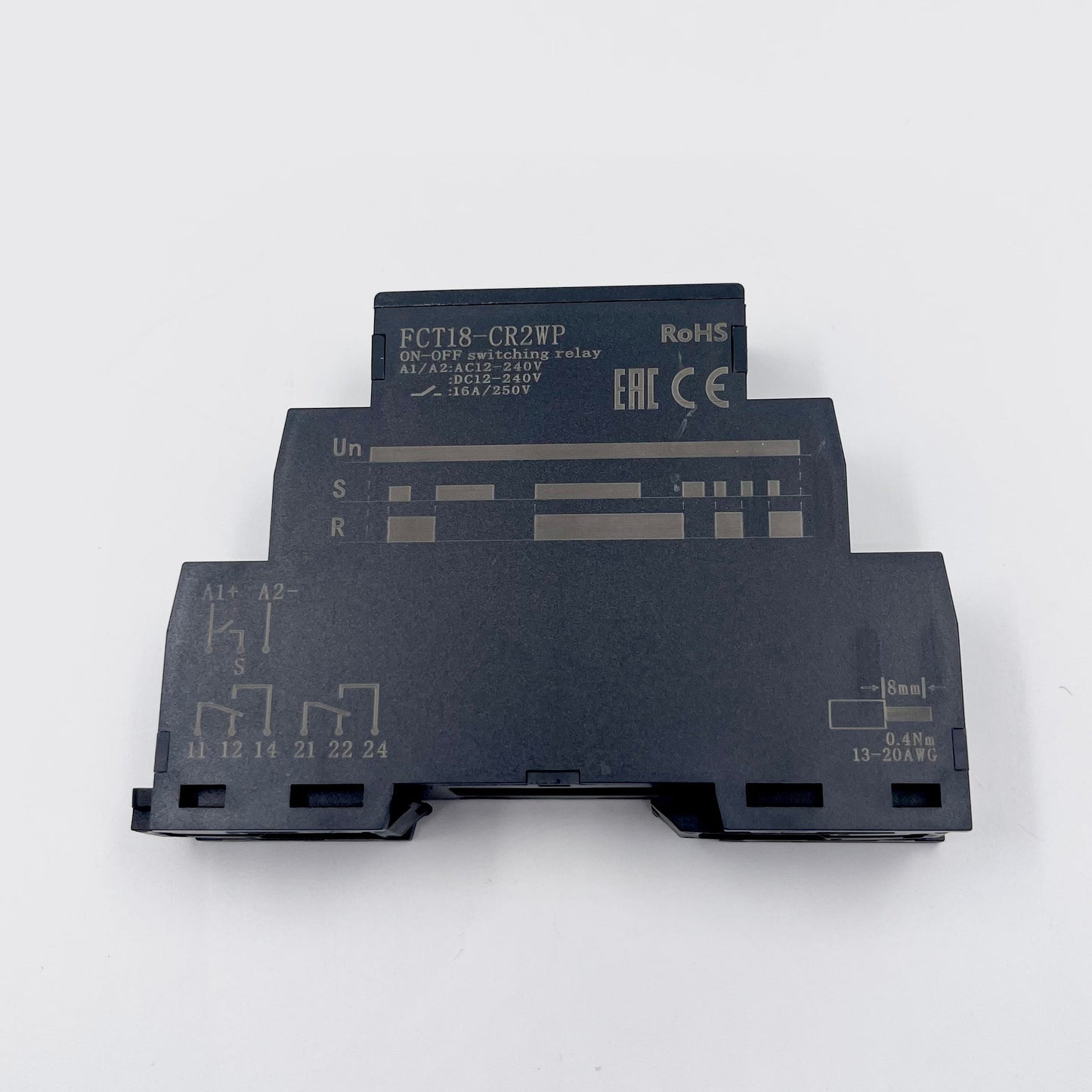

FCT18-CR2WP Bistable Timer Relay - Monitoring Relay
FCT18-CR2WP Bistable Timer Relay - Monitoring Relay
Regular price
$41.12 NZD
Regular price
Sale price
$41.12 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
FCT18-CR2WP
The FCT18-CR2WP Bistable Timer Relay is designed for switching applications where stable relay operation is required on alternate triggers. With a wide input voltage range of AC/DC 12–240V, selectable SPDT contacts, and compact DIN rail mounting, it is ideal for industrial automation systems. The unit features LED indicators for supply and relay status, robust construction, and compliance with international standards to ensure reliable performance in various environments.
Specifications
| Parameter | Details |
|---|---|
| Input Terminal | A1 - A2 |
| Voltage Range | AC 230V / DC24V / AC/DC 12-240V |
| Power Consumption | AC 3.5VA / DC 2.0W |
| Voltage Tolerance | -15% ~ +10% |
| Supply Indication | Green LED |
| Relay Indication | Red LED |
| Time Ranges | N/A |
| Time Setting | Button |
| Time Deviation | 0.1% |
| Repeat Accuracy | 0.5% |
| Temperature Coefficient | 0.05%/°C, at = 20°C (0.05%/°F = 68°F) |
| Output Contact | 1SPDT / 2SPDT |
| Rated Current | 116A / 216A |
| Mechanical Life | 1*10' |
| Electrical Life | 1*105 |
| Ambient Temperature | -20 ... +60°C / -40 ... +85°C |
| Mounting | DIN rail EN/IEC 60715 |
| IP Rating | IP20 |
| Stripping Length | 7mm (0.28in) |
| Installed Altitude | ≤2200m |
| Pollution Level | 2 |
| Max Cable Size | AWG13-20 0.4N•m |
| Dimensions | 90mm * 18mm * 64mm |
| Weight | about 90g |
| Standards | GB/T 14048.5, IEC60947-5-1, EN6812-1 |
Compatible Part Numbers:
FCT18-CR2WP
FCT18-CR2 Bistable Timer
