FCT18-M2WP Multifunction Timer Relay - Monitoring Relay
FCT18-M2WP Multifunction Timer Relay - Monitoring Relay
Regular price
$42.68 NZD
Regular price
Sale price
$42.68 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
FCT18-M2WP

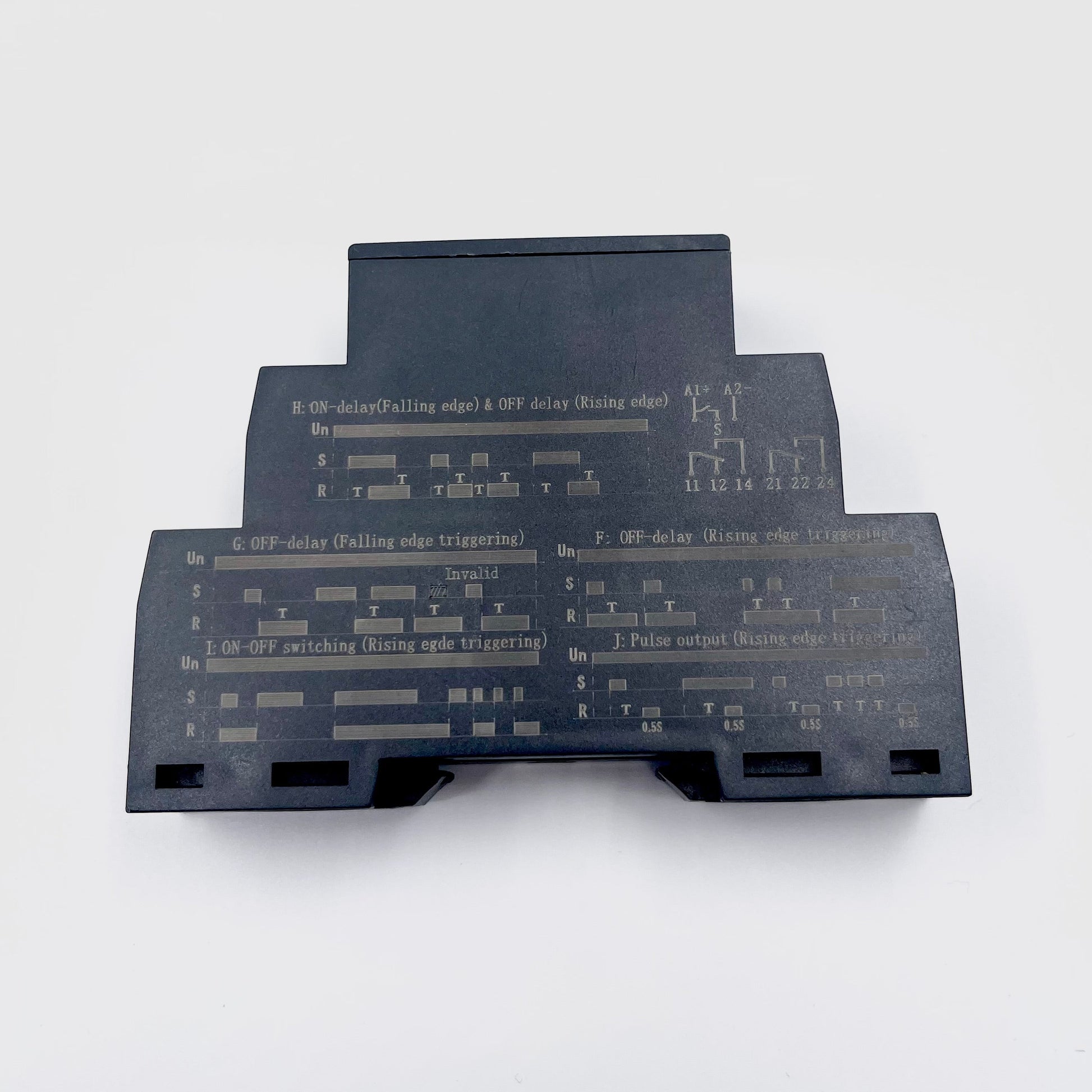

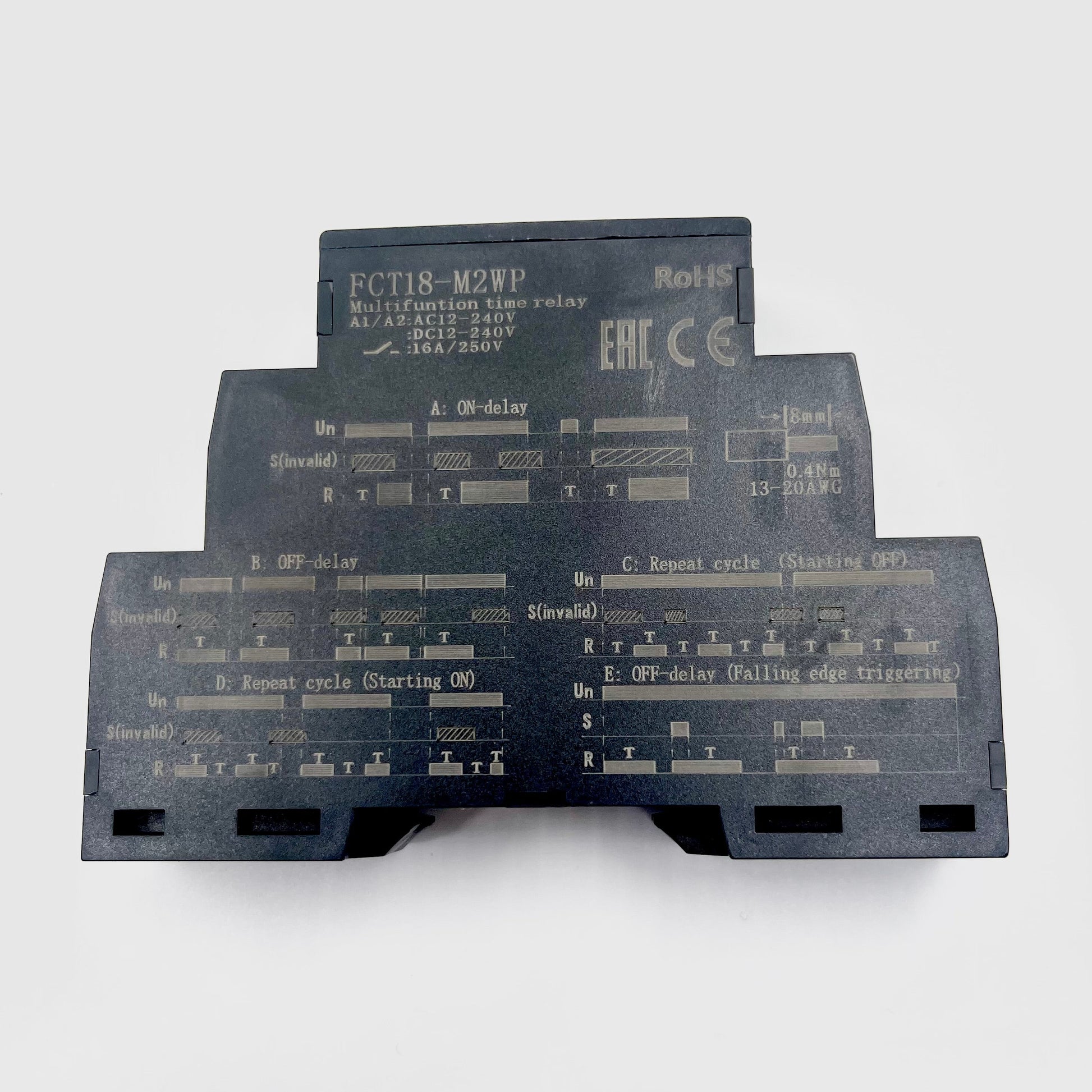

The FCT18-M2WP Multifunction Timer is a compact and versatile solution for precise timing control in industrial and commercial applications. This monitoring Relay supports a wide voltage range of AC/DC 12–240V, it offers adjustable timing from 0.1 seconds to 100 days. With DIN rail mounting, selectable output contacts, and LED status indicators, it ensures easy installation and reliable operation. Built to meet international standards, the FCT18-M2 delivers dependable performance in demanding environments.
Specifications
| Parameter | Details |
|---|---|
| Input Terminal | A1 - A2 |
| Voltage Range | AC 230V / RC24V / AC/DC 12–240V |
| Power Consumption | AC 3.5VA / DC 2.0W |
| Voltage Tolerance | 15% ~ +10% |
| Supply Indication | Green LED |
| Relay Indication | Red LED |
| Time Ranges | 0.1 s - 100 days |
| Time Setting | Button |
| Time Deviation | 0.1% |
| Repeat Accuracy | 0.5% |
| Temperature Coefficient | 0.05%/°C, at = 20°C (0.05%/°F = 68°F) |
| Output Contact | 1SPDT / 2SPDT |
| Rated Current | 116A / 216A |
| Mechanical Life | 1*10' |
| Electrical Life | 1*105 |
| Ambient Temperature | -20.. +60 °C / -40 ... +85 °C |
| Mounting | DIN rail EN/IEC 60715 |
| IP Rating | IP20 |
| Stripping Length | 7mm (0.28in) |
| Installed Altitude | ≤2200m |
| Pollution Level | 2 |
| Max Cable Size | AWG13-20 0.4N•m |
| Dimensions | 90mm * 18mm * 64mm |
| Weight | about 90g |
| Standards | GB/T 14048.5, IEC60947-5-1, EN6812-1 |
Compatible Part Numbers:
FCT18-M2WP
FCT18-M2 Multifunction Timer
Technical Datasheet:
1 in stock
