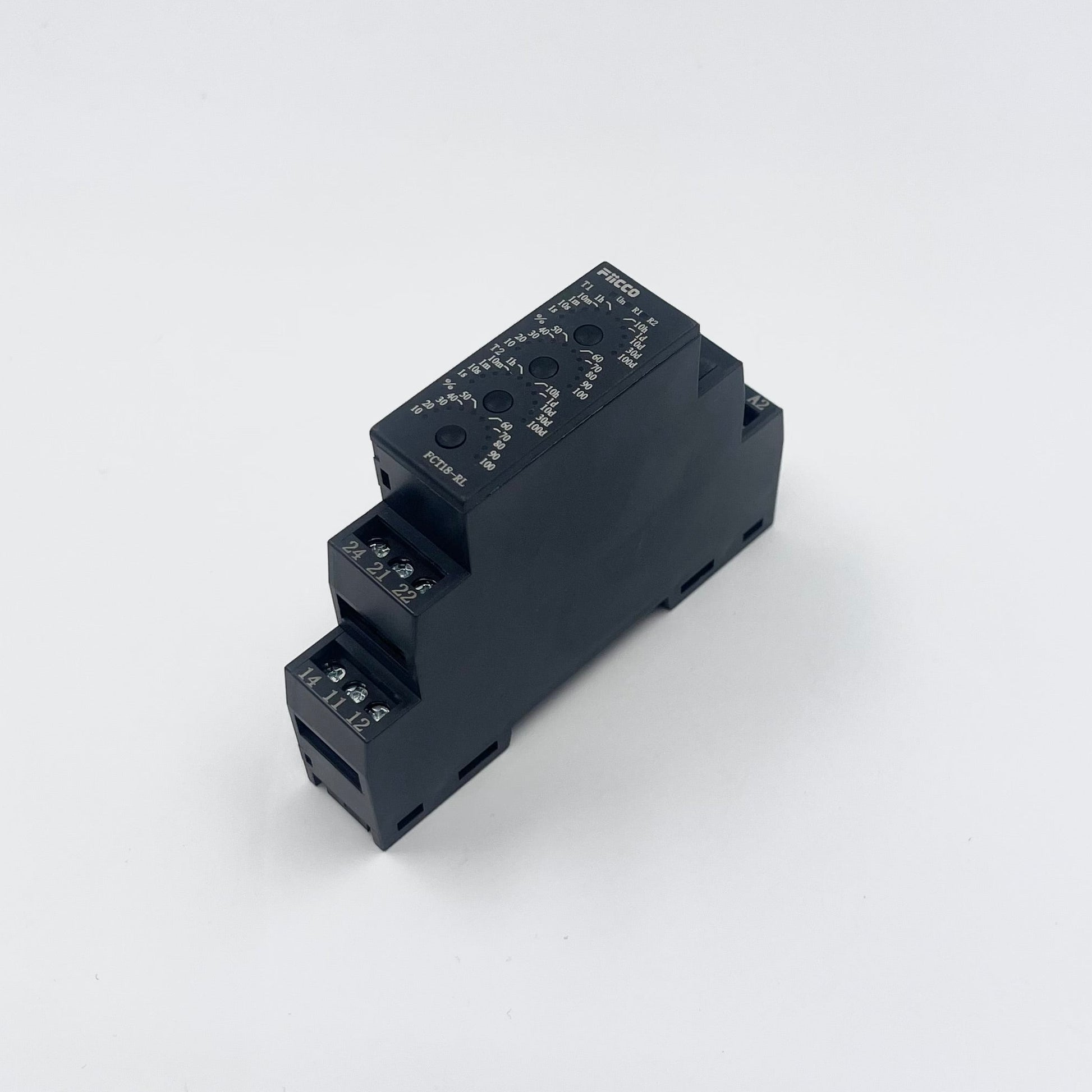

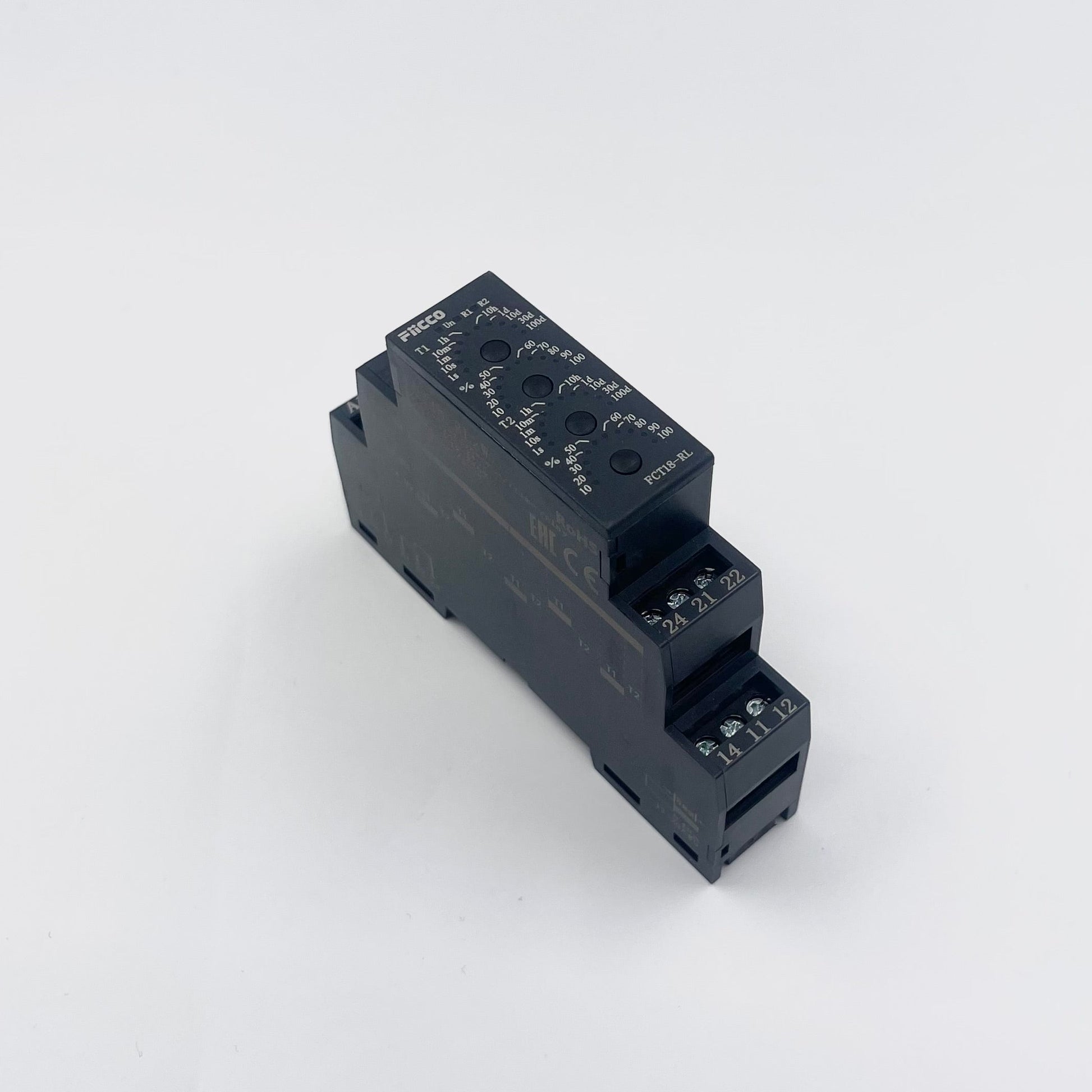

FCT18-RLWP Alternation Timer Relay - Monitoring Relay
FCT18-RLWP Alternation Timer Relay - Monitoring Relay
Regular price
$45.32 NZD
Regular price
Sale price
$45.32 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
FCT18-RLWP
The FCT18-RLWP Alternation Timer Relay is designed for applications that require alternating load control, ensuring balanced wear on equipment such as pumps or motors. Featuring a wide input voltage range of AC/DC 12–240V, adjustable timing from 0.1 seconds to 100 days, and selectable output contacts, it delivers flexible and dependable performance. With compact DIN rail mounting, LED indicators for supply and relay status, and compliance with international standards, the FCT18-RL is a robust solution for industrial automation systems.
Specifications
| Parameter | Details |
|---|---|
| Input Terminal | A1 - A2 |
| Voltage Range | AC 230V / DC24V / AC/DC 12-240V |
| Power Consumption | AC 3.5 VA / DC 2.0W |
| Voltage Tolerance | -15% ~ +10% |
| Supply Indication | Green LED |
| Relay Indication | Red LED |
| Time Ranges | 0.1 s - 100 day |
| Time Setting | Button |
| Time Deviation | 0.1% |
| Repeat Accuracy | 0.5% |
| Temperature Coefficient | 0.05%/°C, at = 20°C (0.05%/°F, = 68°F) |
| Output Contact | 2*SPDT |
| Rated Current | 2*16A |
| Mechanical Life | 1*10' |
| Electrical Life | 1*105 |
| Ambient Temperature | -20 ... +60°C / -40 ... +85°C |
| Mounting | DIN rail EN/IEC 60715 |
| IP Rating | IP20 |
| Stripping Length | 7mm (0.28in) |
| Installed Altitude | ≤2200m |
| Pollution Level | 2 |
| Max Cable Size | AWG13-20 0.4N•m |
| Dimensions | 90mm * 18mm * 64mm |
| Weight | about 90g |
| Standards | GB/T 14048.5, IEC60947-5-1, EN6812-1 |
Compatible Part Numbers:
FCT18-RLWP
FCT18-RL Alternation Timer
