FCT18-X2WP Multifunction Timer Relay - Monitoring Relay
FCT18-X2WP Multifunction Timer Relay - Monitoring Relay
Regular price
$46.36 NZD
Regular price
Sale price
$46.36 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
FCT18-X2WP

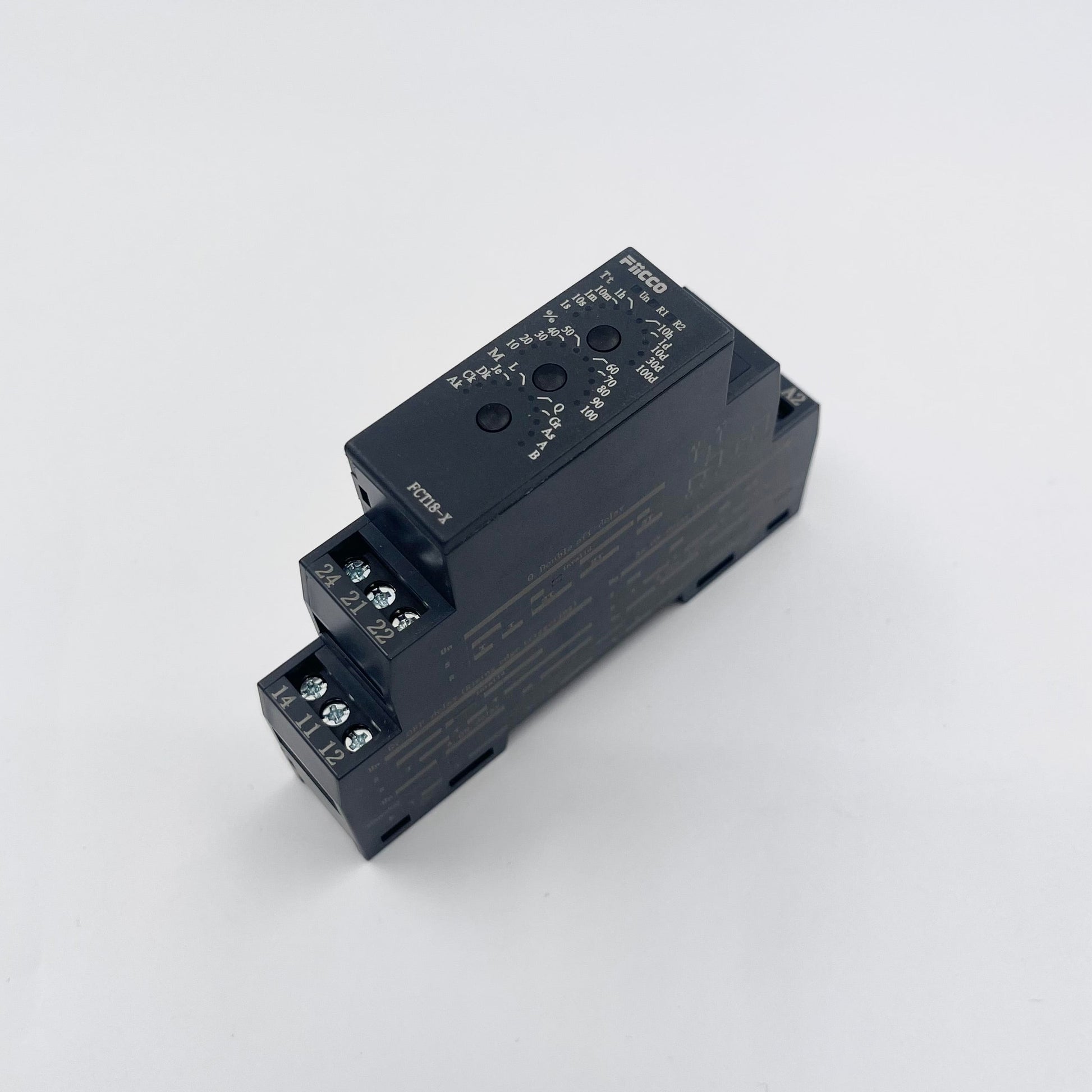

The FCT18-X2WP Multifunction Timer Relay is a reliable and flexible solution for precision timing and monitoring tasks in industrial and commercial automation systems. Designed for easy DIN rail installation, it supports a wide input voltage range of AC/DC 12–240V and offers time setting from 0.1 seconds to 100 days. The FCT18-X2 features selectable output contacts, LED indicators for quick status checks, and robust construction built to international standards for long-term, dependable performance.
Specifications
| Parameter | Details |
|---|---|
| Input Terminal | A1 - A2 |
| Voltage Range | AC 230V / DC24V / AC/DC 12–240V |
| Power Consumption | AC 3.5VA / DC 2.0W |
| Voltage Tolerance | -15% ~ +10% |
| Supply Indication | Green LED |
| Relay Indication | Red LED |
| Time Ranges | 0.1 s - 100 days |
| Time Setting | Button |
| Time Deviation | 0.1% |
| Repeat Accuracy | 0.5% |
| Temperature Coefficient | 0.05%/°C, at = 20°C (0.05%/°F, = 68°F) |
| Output Contact | 1SPDT / 2SPDT |
| Rated Current | 116A / 216A |
| Mechanical Life | 1*10' |
| Electrical Life | 1*105 |
| Ambient Temperature | -20 ... +60°C / -40... +85°C |
| Mounting | DIN rail EN/IEC 60715 |
| IP Rating | IP20 |
| Stripping Length | 7mm (0.28in) |
| Installed Altitude | ≤2200m |
| Pollution Level | 2 |
| Max Cable Size | AWG13-20 0.4N.m |
| Dimensions | 90mm * 18mm * 64mm |
| Weight | about 90g |
| Standards | GB/T 14048.5, IEC60947-5-1, EN6812-1 |
Compatible Part Numbers:
FCT18-X2WP
FCT18-X2 Multifunction Timer
Technical Datasheet:
