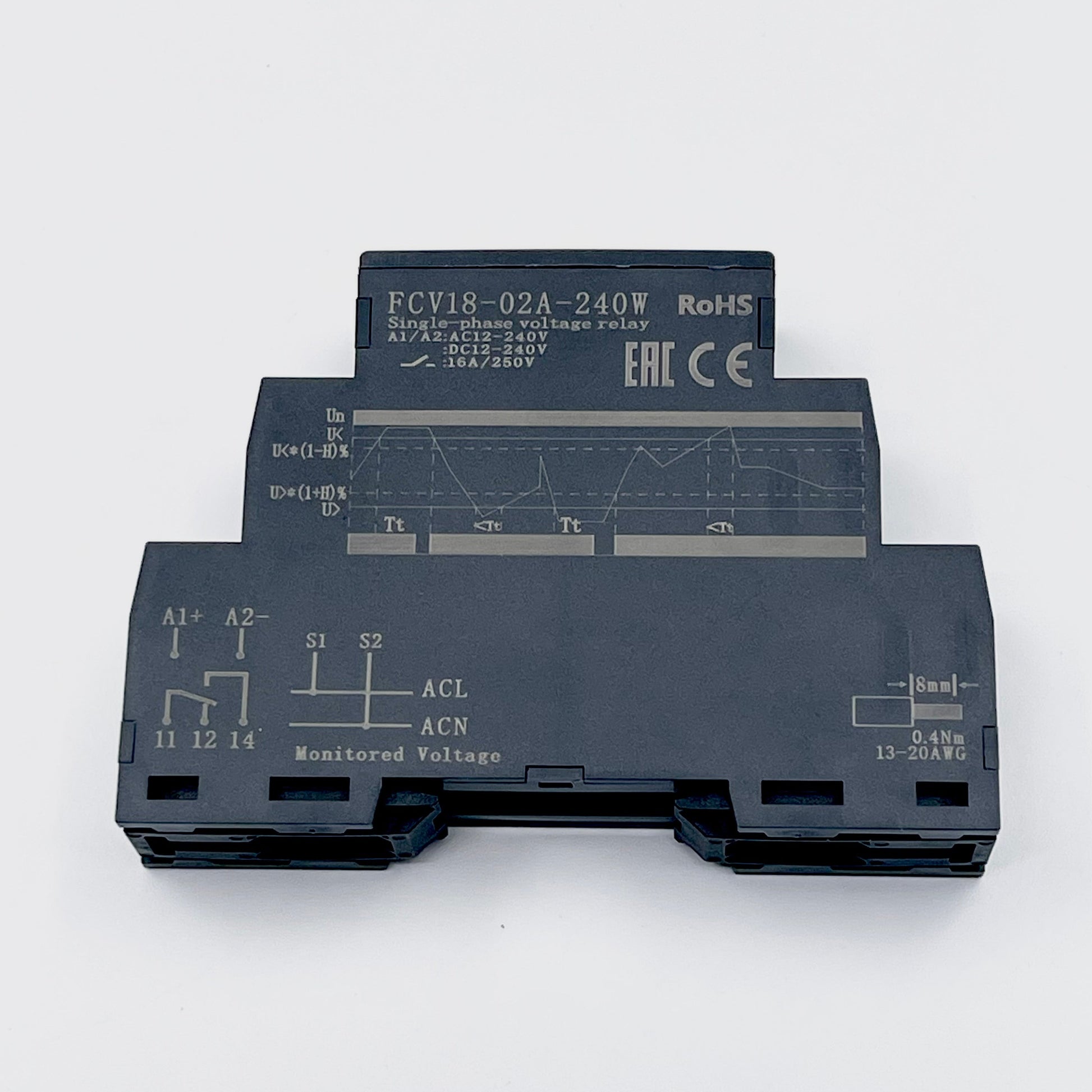

FCV18-02-A240 Single Phase Relay - Monitoring Relay
FCV18-02-A240 Single Phase Relay - Monitoring Relay
Regular price
$41.64 NZD
Regular price
Sale price
$41.64 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
FCV18-02-A240
The FCV18-02-A240 Single Phase Relay is designed for precise single-phase voltage monitoring and protection in industrial and automation systems. It offers adjustable time settings from 0.1 to 20 seconds, a wide input voltage range of AC/DC 12–240V, and reliable SPDT output. With compact DIN rail mounting, LED status indicators, and compliance with international standards, the FCV18-02 ensures dependable performance for critical applications.
Specifications
| Parameter | Details |
|---|---|
| Input Terminal | A1 - A2 |
| Voltage Range | AC 230V / DC24V / AC/DC 12-240V |
| Power Consumption | AC 3.5VA / DC 2.0W |
| Voltage Tolerance | -15% ~ +10% |
| Supply Indication | Green LED |
| Relay Indication | Red LED |
| Time Ranges | 0.1 s - 20 s |
| Setting | Button |
| Setting Deviation | 0.1% |
| Measurement Accuracy | ≤1% |
| Temperature Coefficient | 0.05%/°C, at = 20°C (0.05%/°F = 68°F) |
| Output Contact | 1*SPDT |
| Rated Current | 1*16A |
| Mechanical Life | 1*10' |
| Electrical Life | 1*105 |
| Ambient Temperature | -20 ... +60°C / -40 +85°C |
| Mounting | DIN rail EN/IEC 60715 |
| IP Rating | IP20 |
| Stripping Length | 7mm (0.28in) |
| Installed Altitude | ≤2200m |
| Pollution Level | 2 |
| Max Cable Size | AWG13-20 0.4N-m |
| Dimensions | 90mm * 18mm * 64mm |
| Weight | About 90g |
| Standards | GB/T 14048.5, IEC60947-5-1, EN6812-1 |
Compatible Part Numbers:
FCV18-02-A240
FCV18-02 Single Phase Relay
Technical Datasheet:
