GLV18-55/59/103/159 - PF 192656 - Retroreflective Sensor
GLV18-55/59/103/159 - PF 192656 - Retroreflective Sensor
Regular price
$211.44 NZD
Regular price
Sale price
$211.44 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

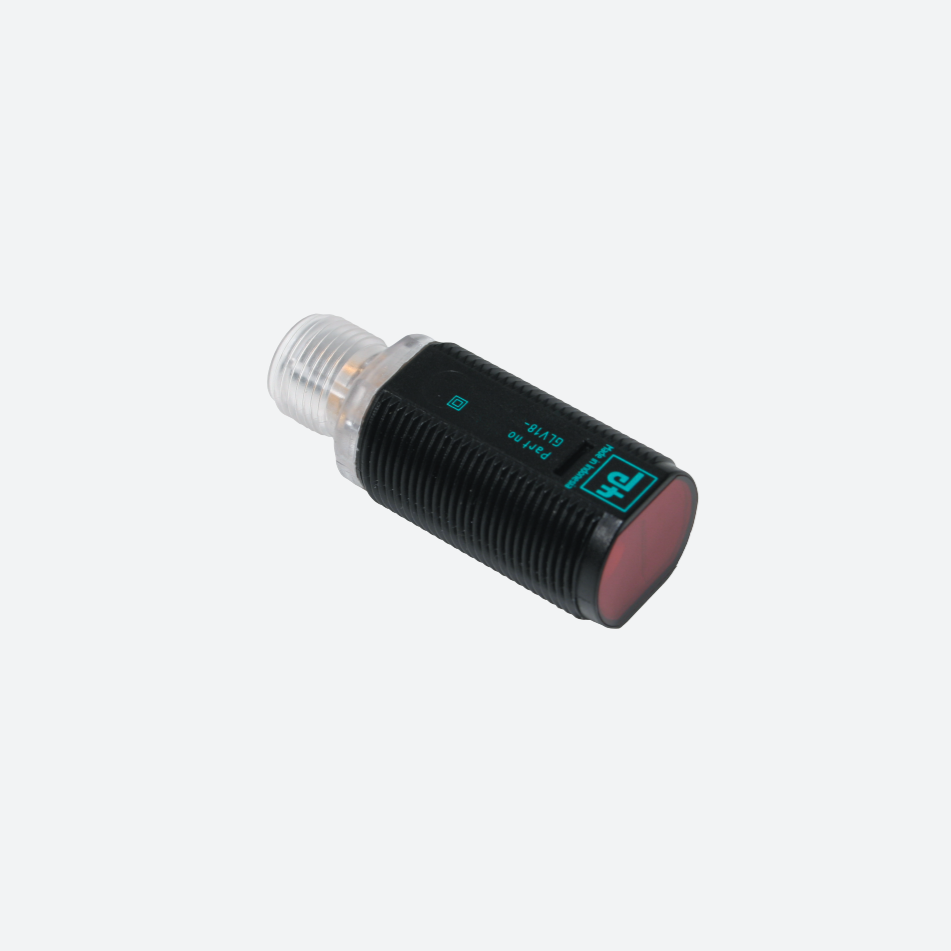

Retroreflective Sensor, GLV18-55/59/103/159 - PF 192656
- Efficient Line in a short M18 plastic housing for standard applications
- Very high detection range
- 4 LEDs indicator for 360° visibility
- Version with front optical face
- DC voltage version
Details: GLV18-55/59/103/159 - PF 192656
Retroreflective sensor with polarization filter, M18 threaded housing design, plastic housing, front optical face, 4 m detection range, red light, dark on, DC version, PNP output, M12 plug
Compatible Part Numbers:
192656
GLV18-55/59/103/159
Technical Datasheet:
Datasheet excerpt: Technical data of GLV18-55/59/103/159 / PF 192656
| General specifications | ||
|---|---|---|
| Effective detection range | 0 ... 4 m | |
| Reflector distance | 0.05 ... 4 m | |
| Threshold detection range | 5.5 m | |
| Reference target | reflector C110-2 | |
| Light source | LED | |
| Light type | modulated visible red light , 640 nm | |
| Polarization filter | yes | |
| Diameter of the light spot | approx. 200 mm at 5.5 m | |
| Opening angle | approx. 2 ° | |
| Optical face | frontal | |
| Ambient light limit | 30000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 920 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on | |
| Function indicator | LED yellow: lights up when receiving the light beam ; flashes when falling short of the operating reserve; OFF when light beam is interrupted | |
| Electrical specifications | ||
| Operating voltage | 10 ... 30 V DC | |
| No-load supply current | < 20 mA | |
| Output | ||
| Switching type | dark-on | |
| Signal output | 1 PNP, short-circuit protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 500 Hz | |
| Response time | ≤ 1 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| Protection class | II, Rated insulation voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 | |
| UL approval | cULus Listed, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 ... 60 °C (-13 ... 140 °F) | |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 3-pin, M12 x 1 connector | |
| Material | ||
| Housing | PC | |
| Optical face | PMMA | |
| Connector | plastic | |
| Mass | approx. 10 g | |
| Dimensions | ||
| Length | 43.9 mm | |
| Diameter | 18 mm | |
| Thread size | M18 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 9.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
