PF 38
KHE-C01-2,2-2,0-K121 / PF 805877 - Plastic Fibre Optic
KHE-C01-2,2-2,0-K121 / PF 805877 - Plastic Fibre Optic
Regular price
$306.73 NZD
Regular price
Sale price
$306.73 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

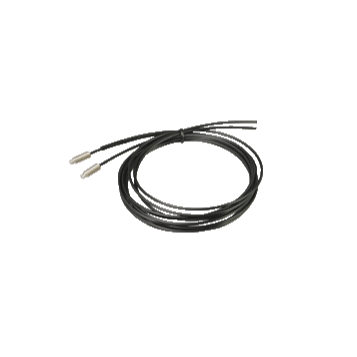

Plastic Fibre Optic, KHE-C01-2,2-2,0-K121 / PF 805877
- High flexible
- Thread M6
Details: KHE-C01-2,2-2,0-K121 / PF 805877
Plastic fiber optic - thru-beam
Compatible Part Numbers:
KHE-C01-2,2-2,0-K121
805877
Technical Datasheet:
Datasheet excerpt: Technical data of KHE-C01-2,2-2,0-K121 / PF 805877
| General specifications | ||
|---|---|---|
| Detection range | SU18: 200 mm SU18/35: 800 mm SU19: 200 mm |
|
| Fiber optic length | 2000 mm , adjustable | |
| Fiber optic diameter | 2.2 mm | |
| Adapter form | 00 | |
| End piece | thread | |
| Bending radius | min. 2 mm | |
| Fiber configuration | see dimensions | |
| Opening angle | 67 ° | |
| Accessories provided | Cutter for plastic fiber optics | |
| Ambient conditions | ||
| Ambient temperature | -55 ... 70 °C (-67 ... 158 °F) | |
| Mechanical specifications | ||
| Material | ||
| Optical face | plastic | |
| Sheathing | PVC | |
| Core | plastic | |
| End piece | Stainless steel 1.4305 / AISI 303 | |
| General information | ||
| Scope of delivery | Fiber optic cables packaged in pairs | |
| Fiber optic amplifiers | ||
| Device series | SU18 ; SU18/35 ; SU19 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273606 |
| ECLASS 12.0 | 27273606 |
| ECLASS 11.0 | 27273606 |
| ECLASS 10.0.1 | 27273606 |
| ECLASS 9.0 | 27273606 |
| ECLASS 8.0 | 27279208 |
| ECLASS 5.1 | 27279208 |
| ETIM 9.0 | EC001476 |
| ETIM 8.0 | EC001476 |
| ETIM 7.0 | EC002651 |
| ETIM 6.0 | EC001476 |
| ETIM 5.0 | EC002651 |
| UNSPSC 12.1 | 39121528 |
Out of stock
