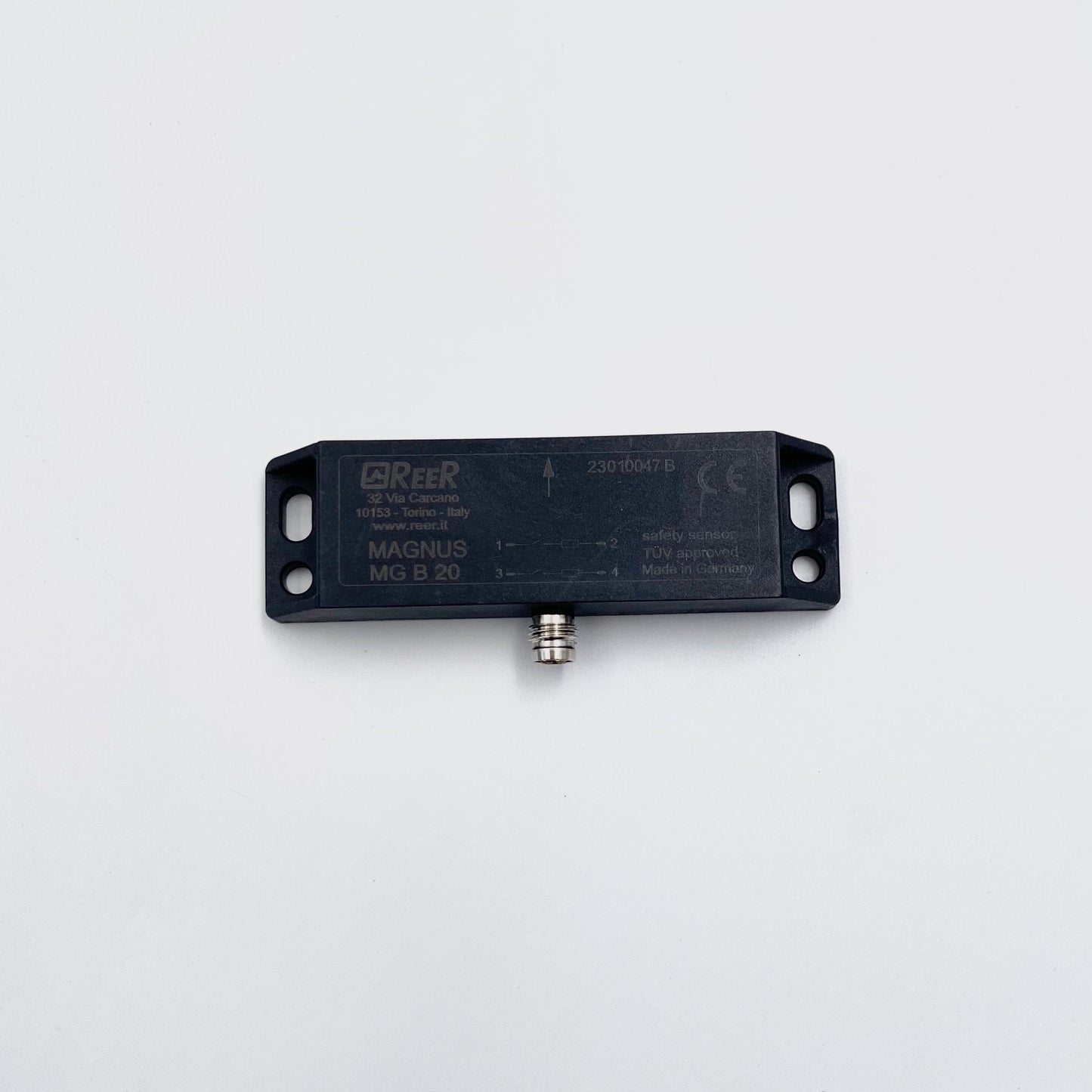

MAGNUS MG B 20 - Safety Devices

MAGNUS MG B 20 - Safety Devices

Regular price $57.12 NZD
Regular price Sale price $57.12 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

MAGNUS MG B 20

Magnetic Safety Switch. Sensor Only. 2 NO sensors. M8 connector. Interaxis 78 mm.

Compatible Part Numbers:

1291010

Features:

Operating temperature (°C) - 25 ... 75
Sensor type Magnetic switches
Connections M8 4-pole connector
Packaging dimensions HxLxW (mm) 14 x 150 x 110
Product class C
Custom tariff 9032890
Connection type Connector



Mechanical Data:

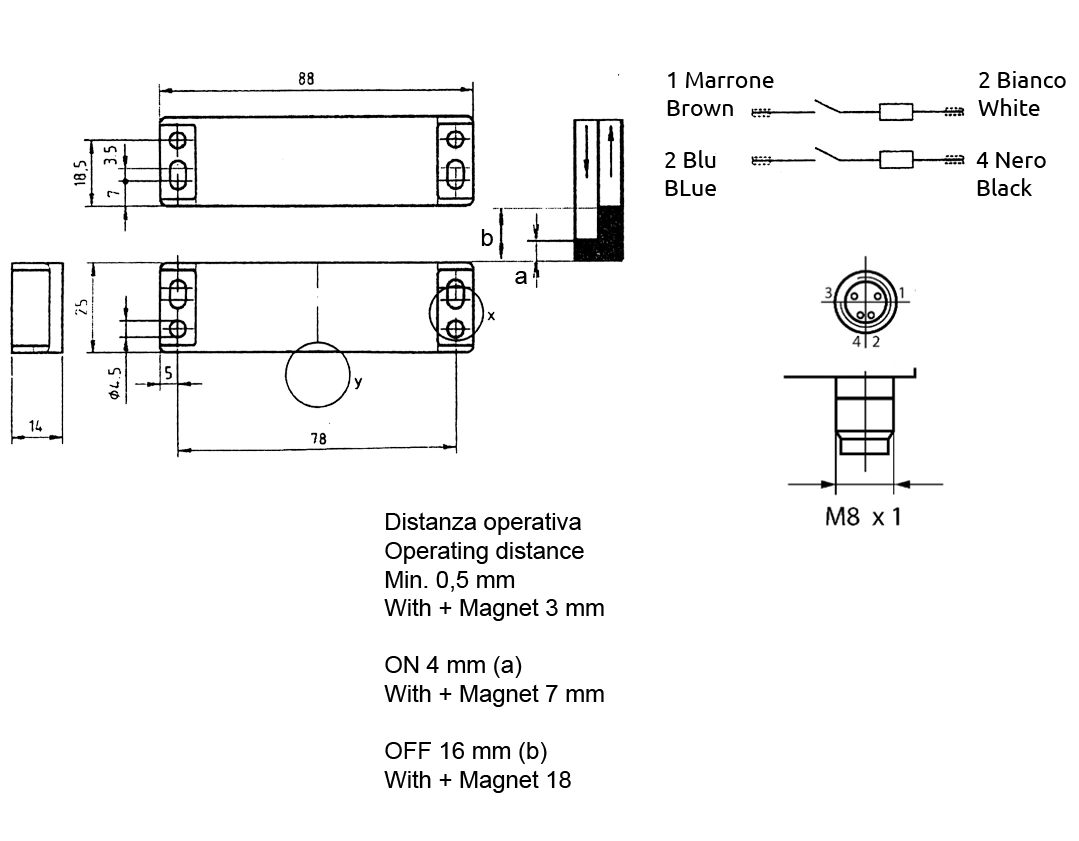

Dimensions HxWxD (mm) 88 x 25 x 14
Degree of protection IP67
Fastening M4 screws with flat head (e.g. M4 cheese head screws ISO 4762)
Contacts 2 NO contacts
Housing Thermoplastic enclosure (PBT)
Gross weight (g) 50
Switching distance (mm) 4 ... 16 / 7 ... 18 (with MG B M+)
Size 78 mm interaxis











2 in stock
