ReeR 1291011 - MAGNUS MG B M - Safety Devices
ReeR 1291011 - MAGNUS MG B M - Safety Devices
Regular price
$34.76 NZD
Regular price
Sale price
$34.76 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

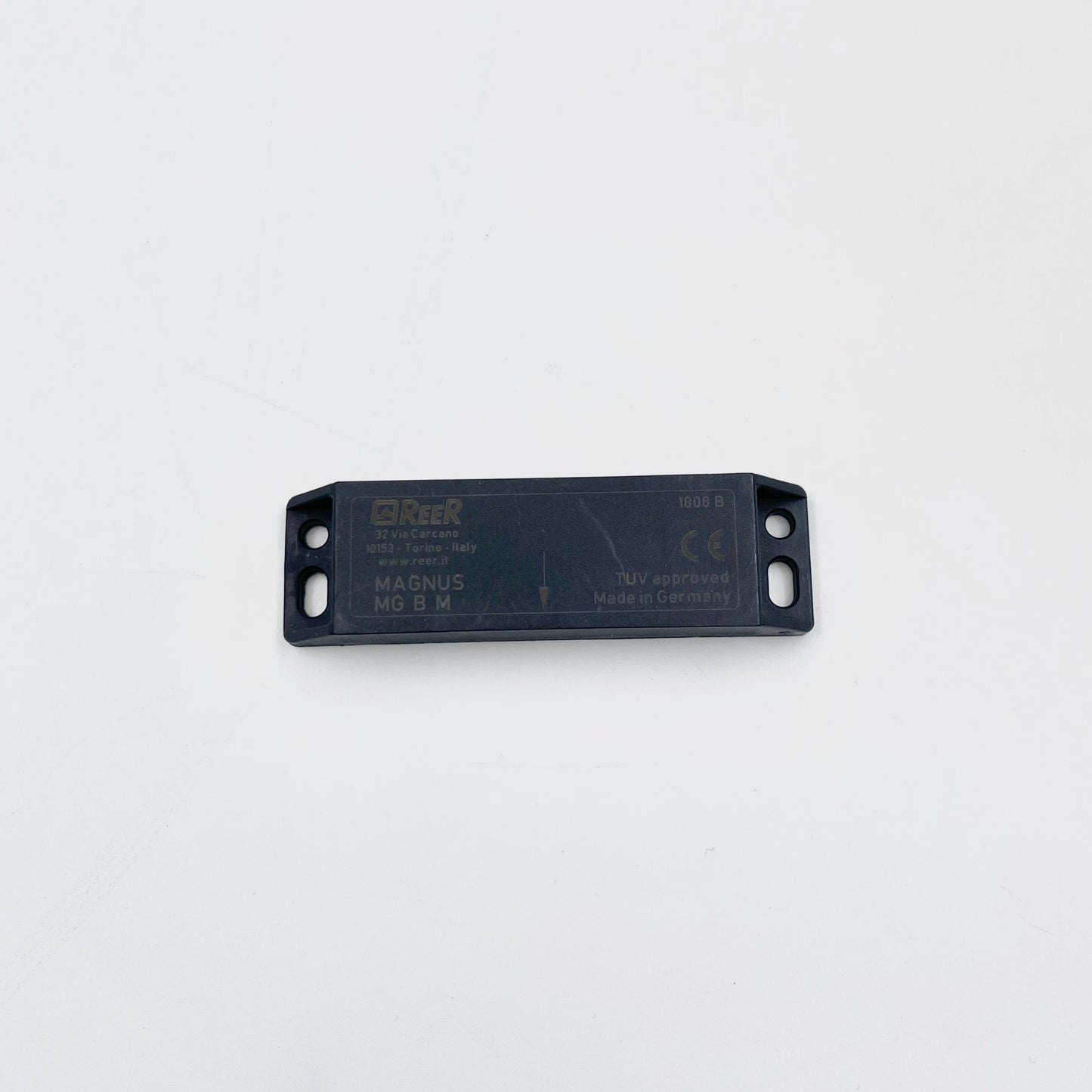

MAGNUS MG B M
Magnetic Safety Switch. Actuator Magnet. Interaxis 78 mm.
Features:
| Operating temperature (°C) | - 25 ... 75 |
| Sensor type | Magnetic switches |
| Packaging dimensions HxLxW (mm) | 15 x 130 x 100 |
| Product class | C |
| Custom tariff | 9032890 |
Electrical Data:
| Power supply (VDC) | 24 ± 20% |
Mechanical Data:
| Dimensions HxWxD (mm) | 88 x 25 x 14 |
| Degree of protection | IP67 |
| Fastening | M4 screws with flat head (e.g. M4 cheese head screws ISO 4762) |
| Housing | Thermoplastic enclosure (PBT) |
| Gross weight (g) | 40 |
| Switching distance (mm) | 4 ... 16 |
| Size | 78 mm interaxis |
Compatible Part Numbers:
1291011
MAGNUS MG B M
ReeR 1291011

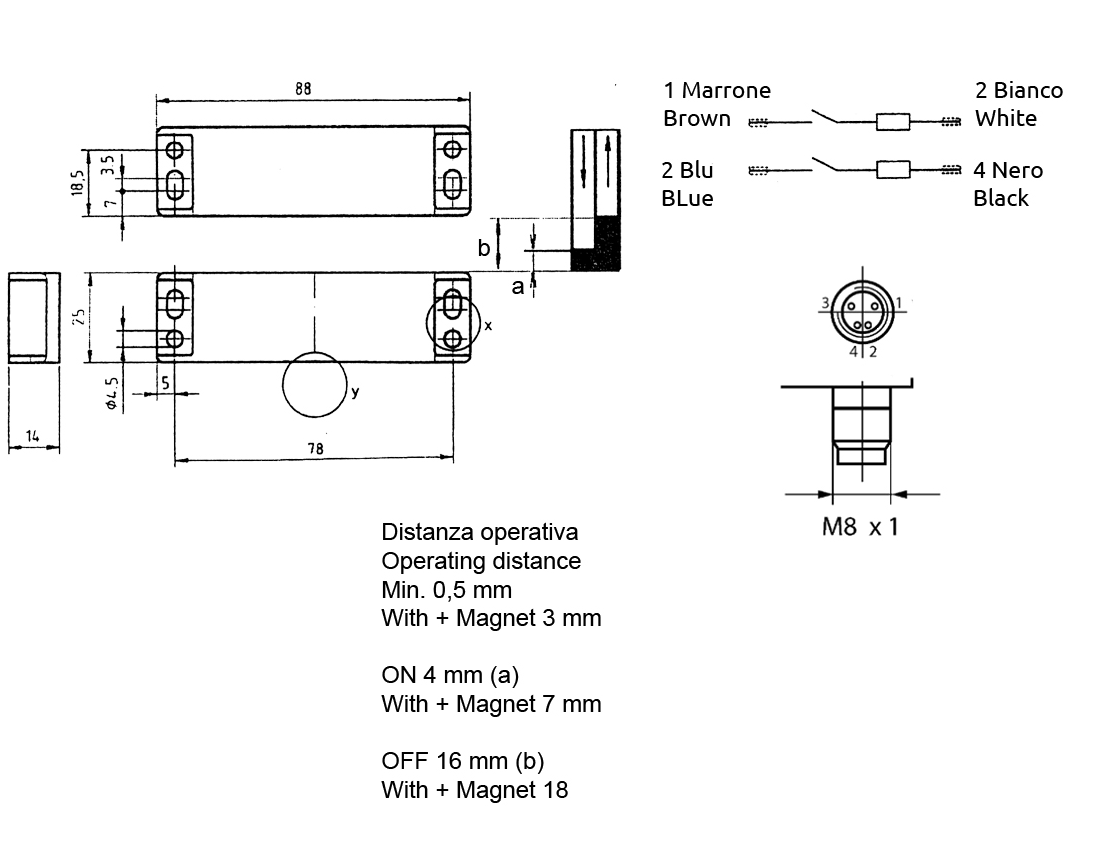

Technical Datasheet:
4 in stock
