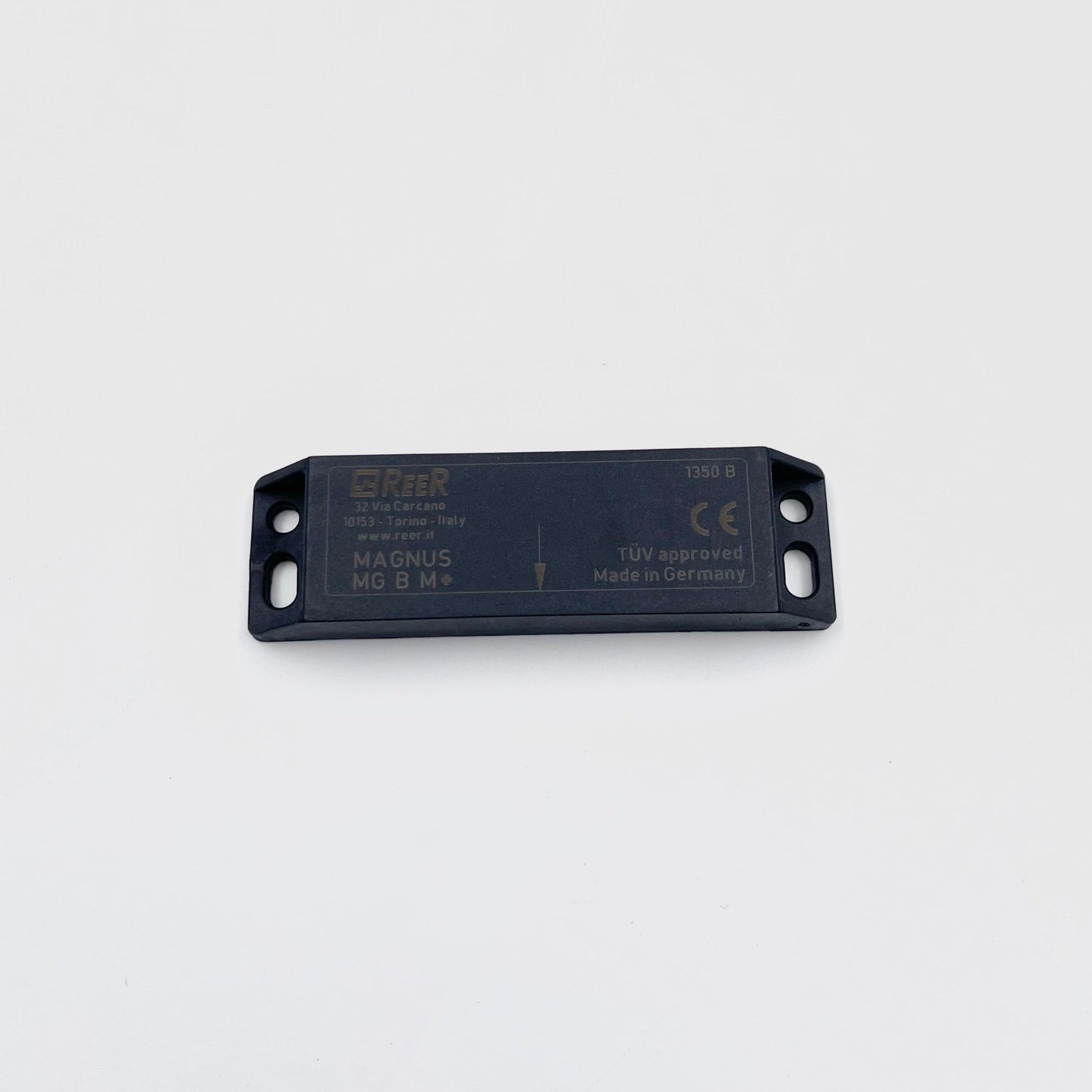

MAGNUS MG B M+
Magnetic Safety Switch. Actuator Magnet. Increased Switching Range. Interaxis 78 mm.
Features:
| Operating temperature (°C) | - 25 ... 75 |
| Sensor type | Magnetic switches |
| Packaging dimensions HxLxW (mm) | 15 x 140 x 100 |
| Product class | C |
| Custom tariff | 9032890 |
Electrical Data:
| Power supply (VDC) | 24 ± 20% |
Mechanical Data:

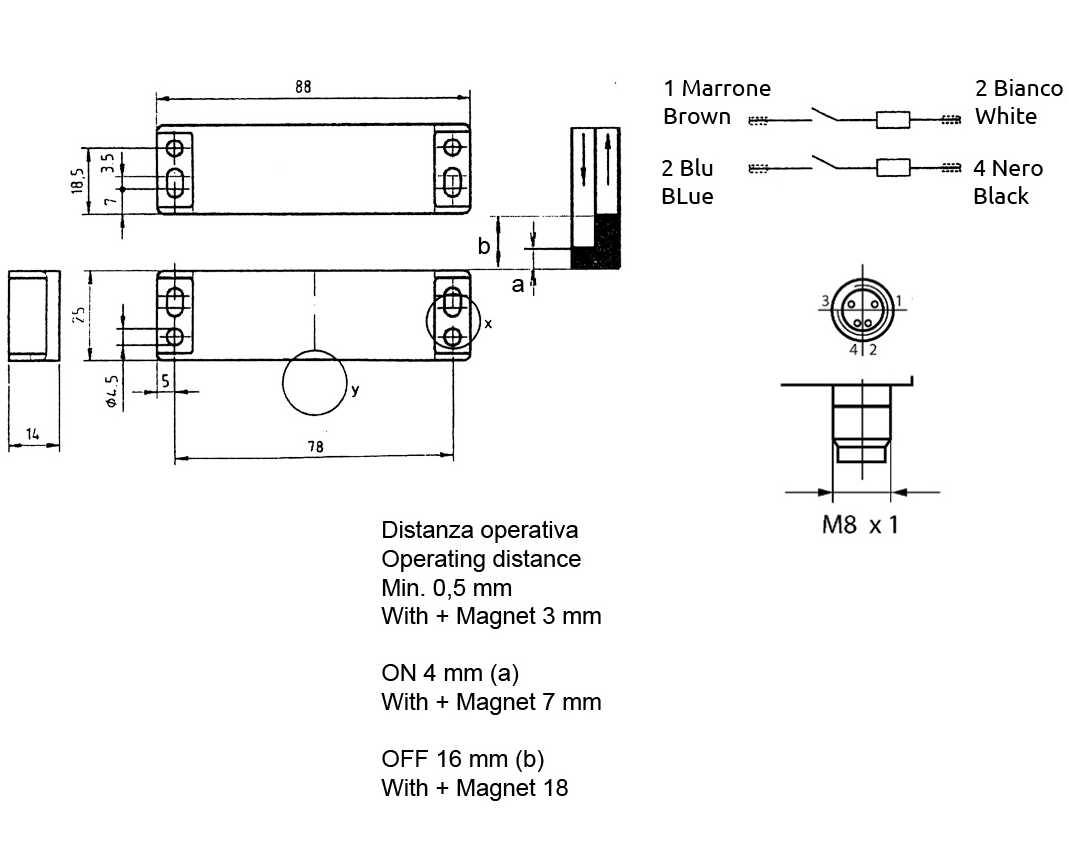

| Dimensions HxWxD (mm) | 88 x 25 x 14 |
| Degree of protection | IP67 |
| Fastening | M4 screws with flat head (e.g. M4 cheese head screws ISO 4762) |
| Housing | Thermoplastic enclosure (PBT) |
| Gross weight (g) | 60 |
| Switching distance (mm) | 7 ... 18 |
| Size | 78 mm interaxis |
Compatible Part Numbers:
1291012
MAGNUS MG B M+
ReeR 1291012
Technical Datasheet:
