ReeR 1291020 - MAGNUS MG M 20 - Safety Devices
ReeR 1291020 - MAGNUS MG M 20 - Safety Devices
Regular price
$179.20 NZD
Regular price
Sale price
$179.20 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

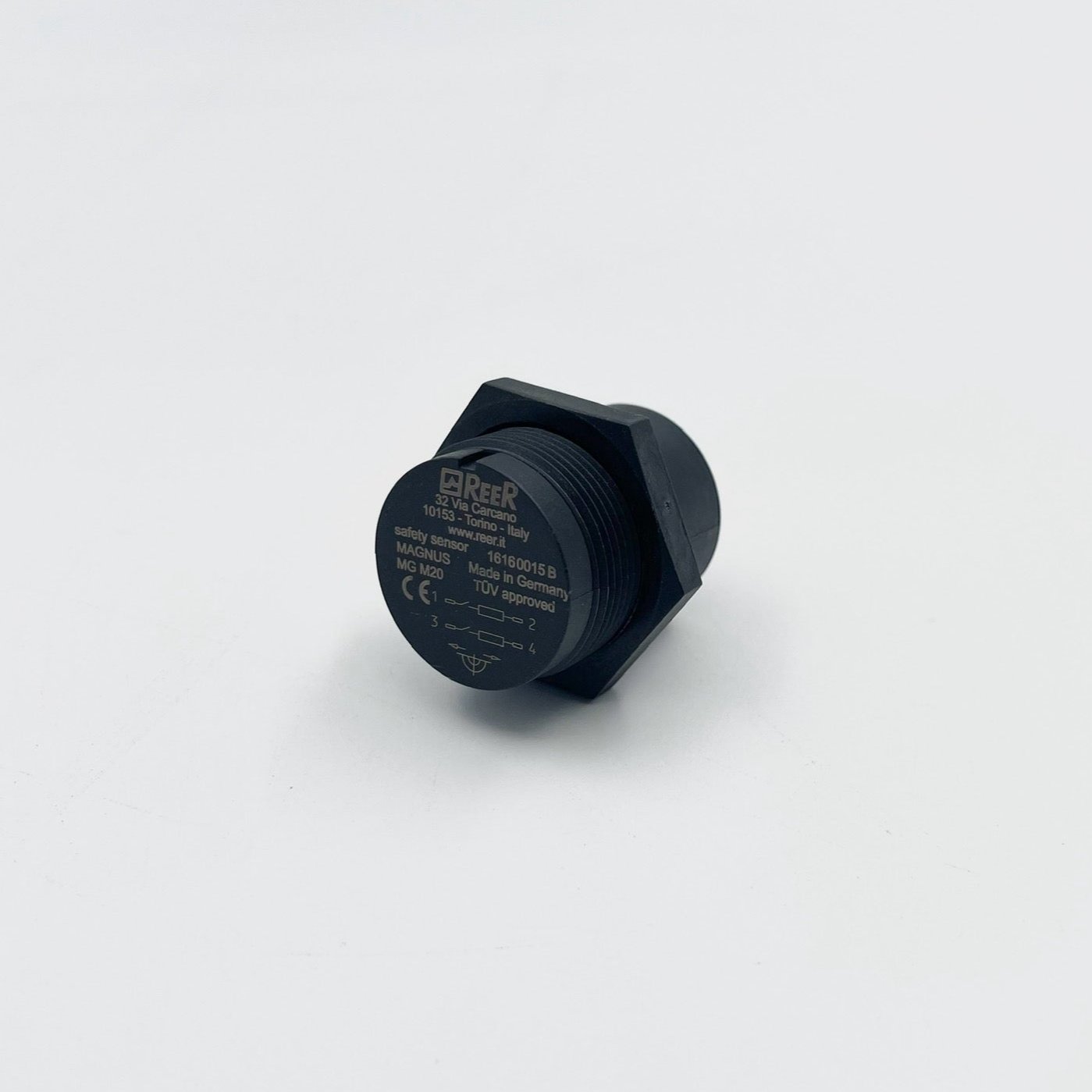

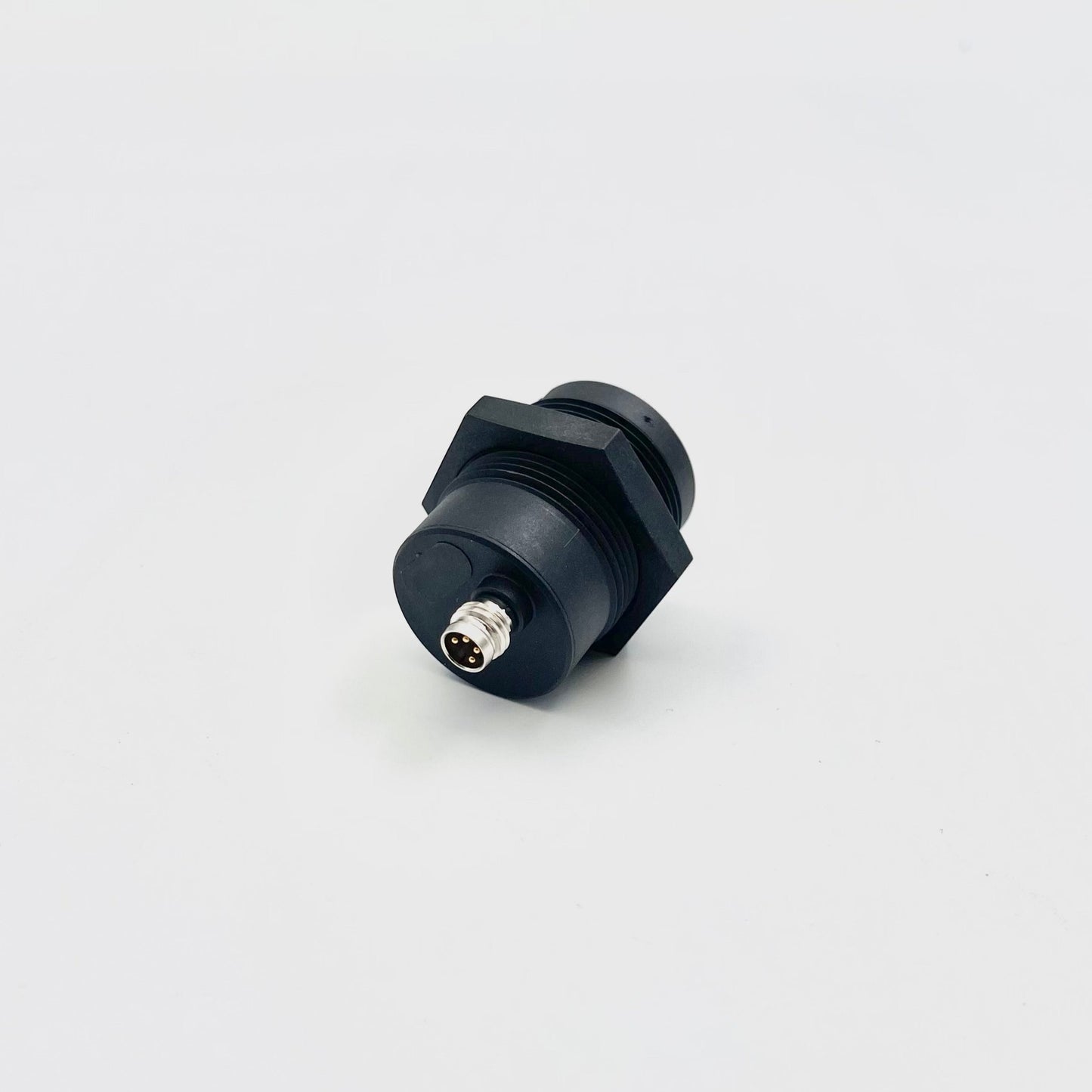

MAGNUS MG M 20
Magnetic Safety Switch. Sensor Only. Round. 2 NO contacts. M8 connector. Diameter M30.
Features:
| Operating temperature (°C) | - 25 ... 75 |
| Sensor type | Magnetic switches |
| Connections | M8 4-pole connector |
| Packaging dimensions HxLxW (mm) | 50 x 250 x 180 |
| Product class | C |
| Custom tariff | 9032890 |
| Connection type | Connector |
Electrical Data:
| Power supply (VDC) | 24 ± 20% |
Mechanical Data:
| Degree of protection | IP67 |
| Fastening | 2 M30 fixing nuts |
| Contacts | 2 NO contacts |
| Housing | Thermoplastic enclosure (PBT) |
| Gross weight (g) | 42 |
| Switching distance (mm) | 4 ... 16 / 7 ... 20 (with MG M M+) |
| Size | Cylindrical M30 |
Compatible Part Numbers:
1291020
MAGNUS MG M 20
ReeR 1291020

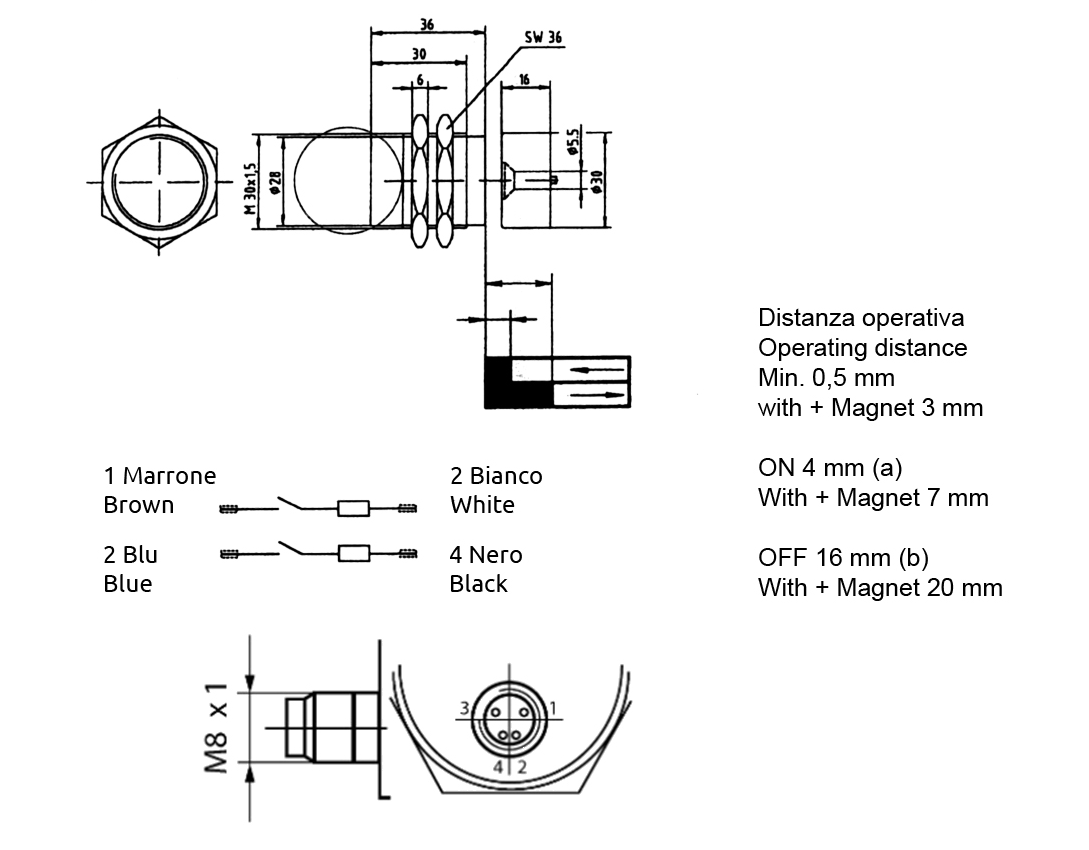

Technical Datasheet:
2 in stock
