ReeR 1291022 MAGNUS MG M M+ - Safety Devices
ReeR 1291022 MAGNUS MG M M+ - Safety Devices
Regular price
$89.60 NZD
Regular price
Sale price
$89.60 NZD
Unit price
/
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

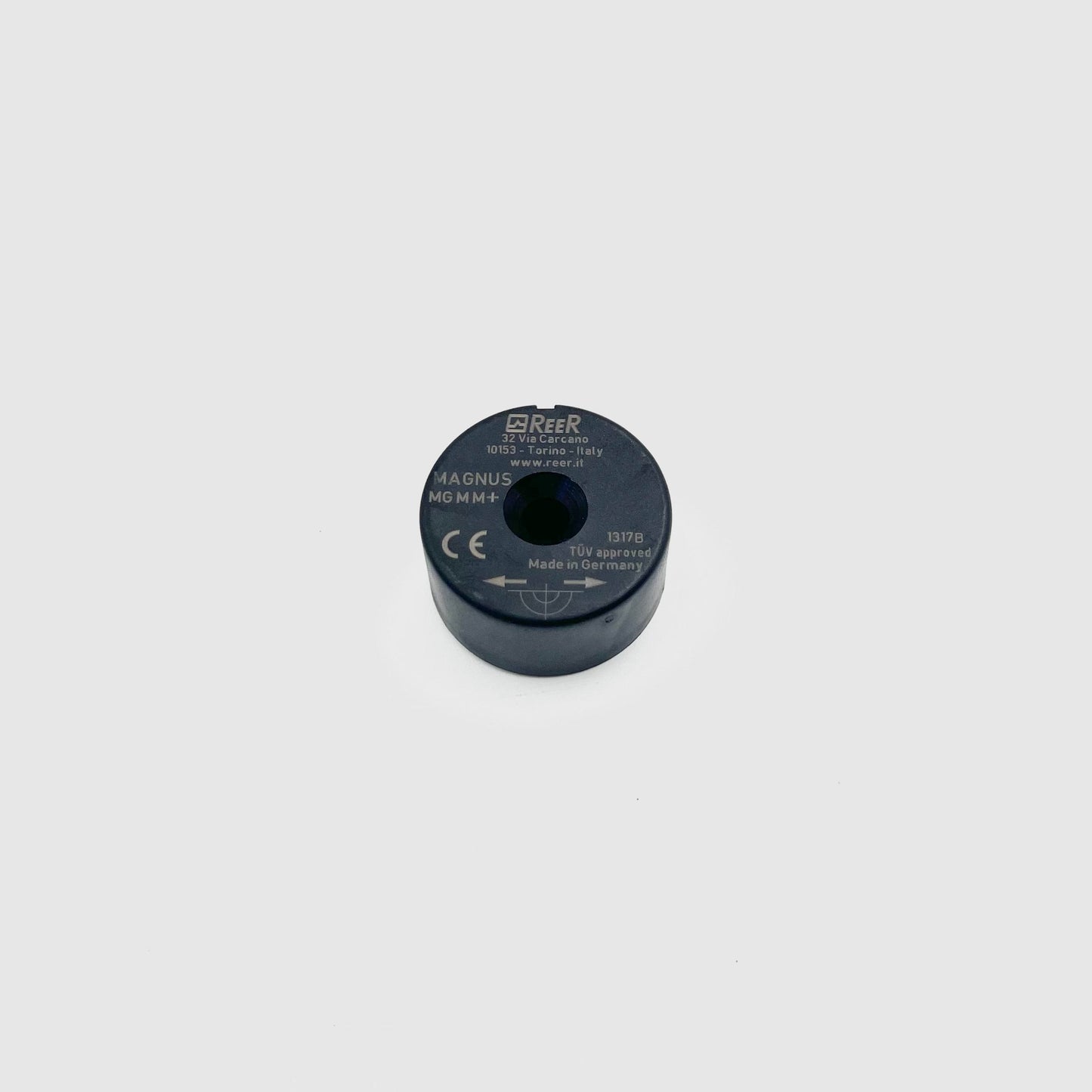

MAGNUS MG M M+

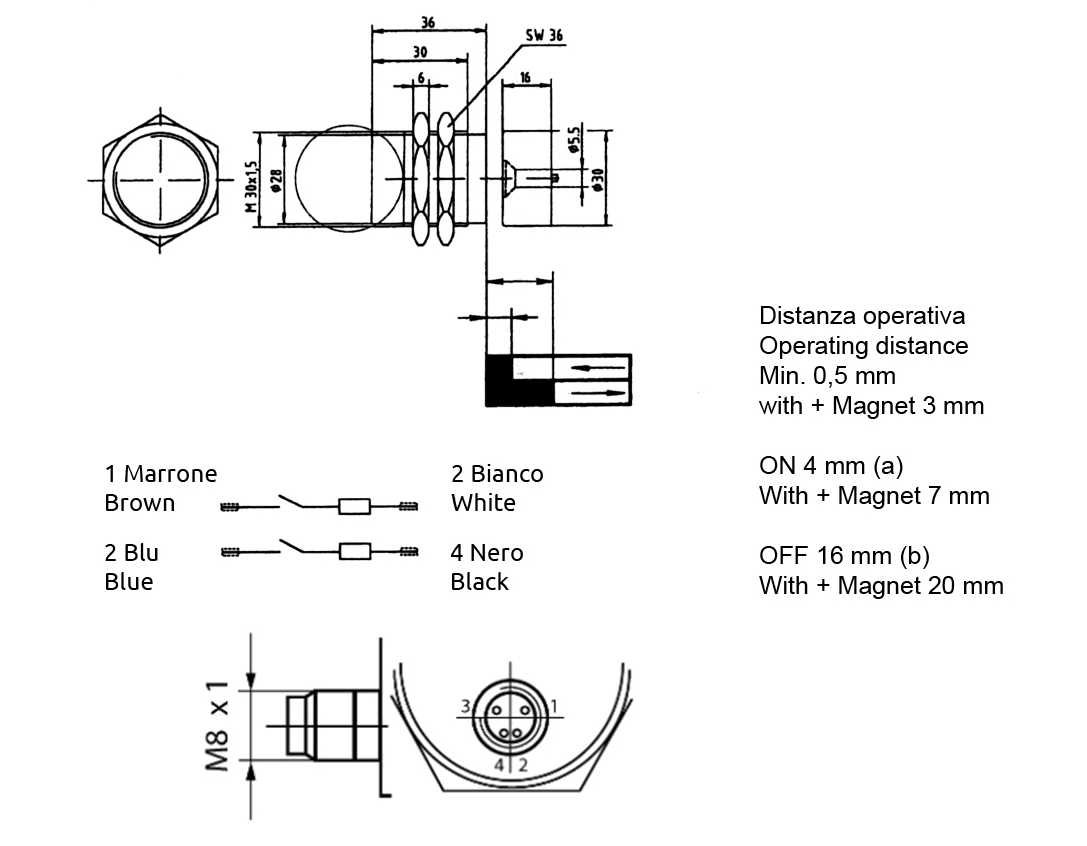

Magnetic Safety Switch. Actuator Magnet. Round. Increased Switching Range. Diameter M30.
Compatible Part Numbers:
1291022
Features:
Operating temperature (°C) | - 25 ... 75 |
Sensor type | Magnetic switches |
Packaging dimensions HxLxW (mm) | 15 x 150 x 100 |
Product class | C |
Custom tariff | 9032890 |
Electrical Data:
Power supply (VDC) | 24 ± 20% |
Mechanical Data:
Degree of protection | IP67 |
Fastening | M4 screws with flat head (e.g. M4 cheese head screws ISO 4762) |
Housing | Thermoplastic enclosure (PBT) |
Gross weight (g) | 35 |
Switching distance (mm) | 7 ... 20 |
Size | Cylindrical M30 |
6 in stock
