ReeR 1291000 MAGNUS MG S 20 - Safety Devices
ReeR 1291000 MAGNUS MG S 20 - Safety Devices
Regular price
$230.40 NZD
Regular price
Sale price
$230.40 NZD
Unit price
/
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

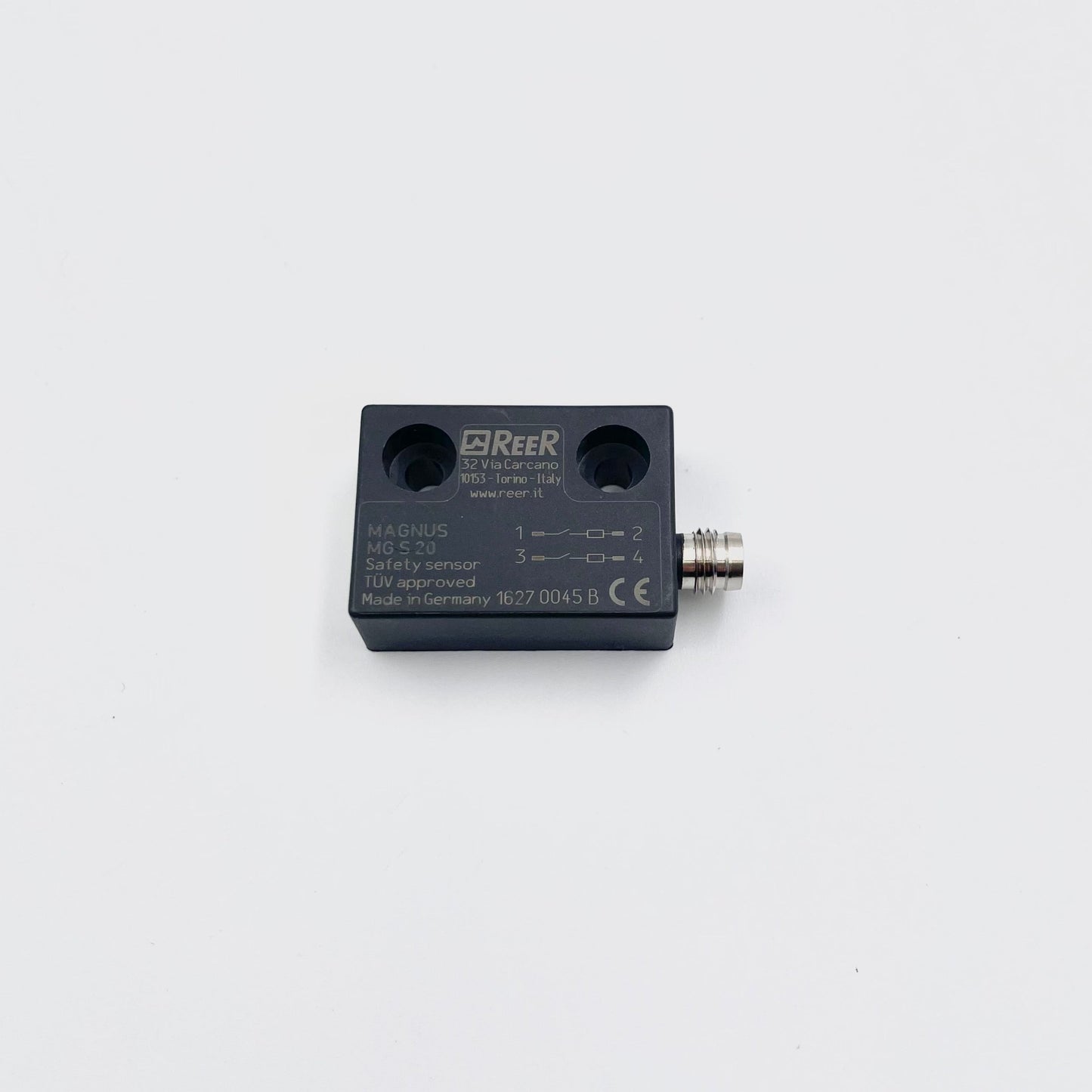

MAGNUS MG S 20
Magnetic Safety Switch. Sensor Only. 2 NO contacts. M8 connector. Interaxis 22 mm.
Compatible Part Numbers:
1291000
Features:
| Operating temperature (°C) | - 25 ... 75 |
| Sensor type | Magnetic switches |
| Connections | M8 4-pole connector |
| Packaging dimensions HxLxW (mm) | 15 x 150 x 110 |
| Product class | C |
| Custom tariff | 9032890 |
| Connection type | Connector |

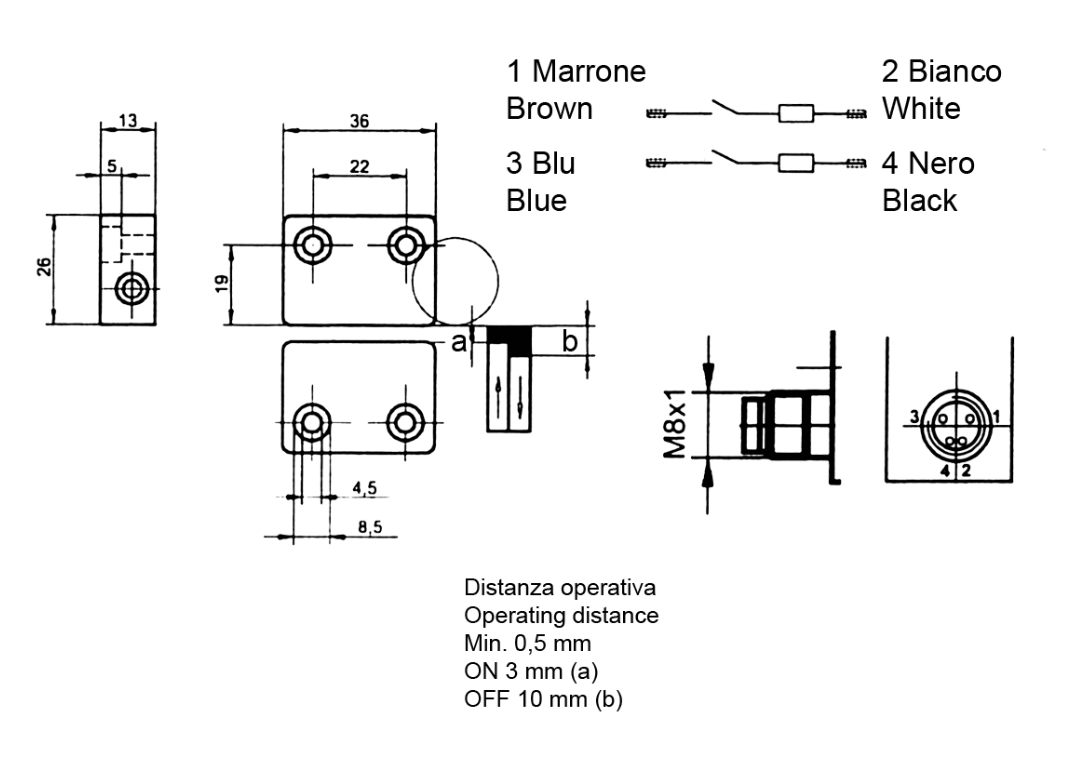

Mechanical Data:
| Dimensions HxWxD (mm) | 36 x 26 x 13 |
| Degree of protection | IP67 |
| Fastening | M4 screws with flat head (e.g. M4 cheese head screws ISO 4762) |
| Contacts | 2 NO contacts |
| Housing | Thermoplastic enclosure (PBT) |
| Gross weight (g) | 30 |
| Switching distance (mm) | 3 ... 10 |
| Size | 22 mm interaxis |
