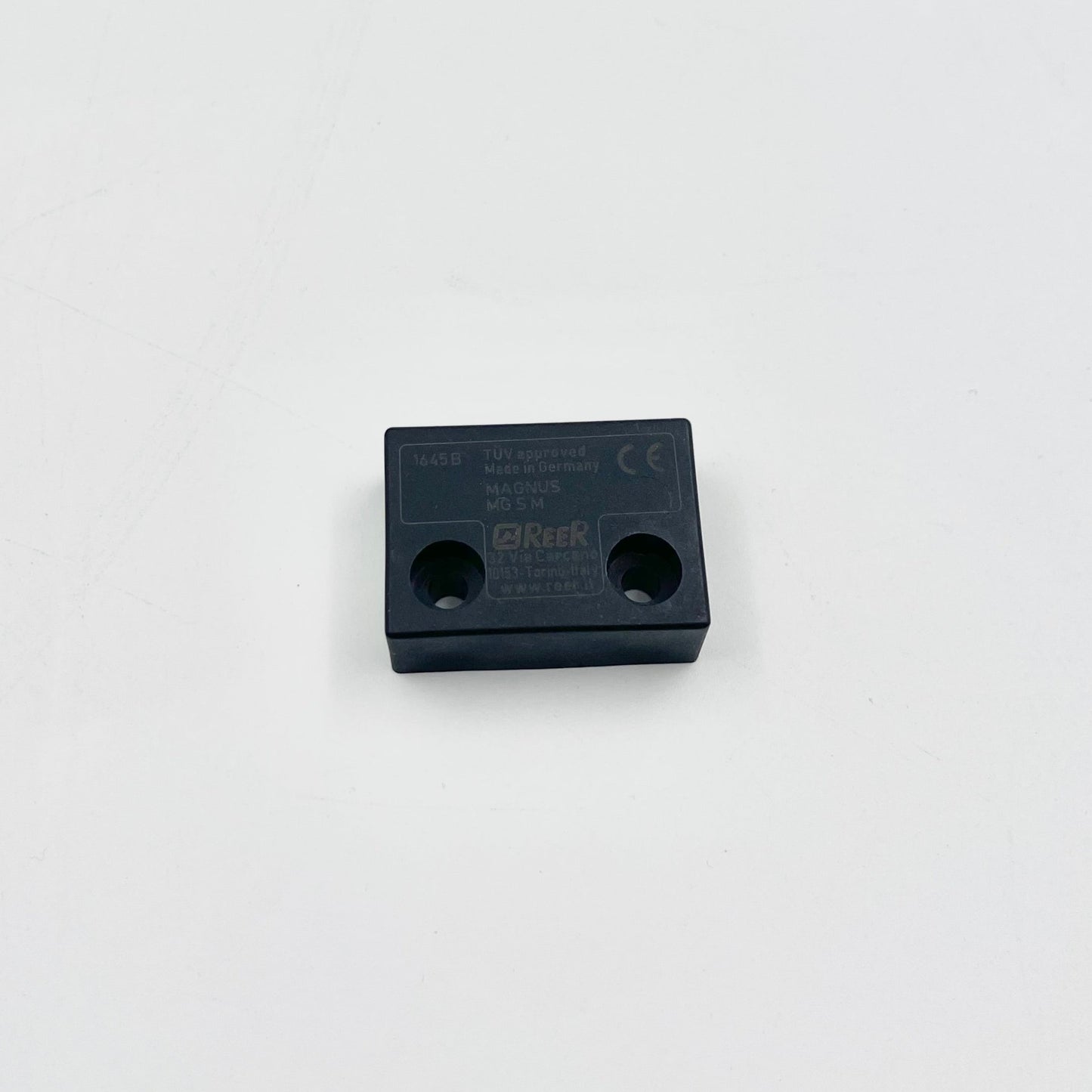

MAGNUS MG S M
Magnetic Safety Switch. Actuator Magnet. Interaxis 22 mm.
Compatible Part Numbers:
1291001
Features:
Operating temperature (°C) | - 25 ... 75 |
Sensor type | Magnetic switches |
Packaging dimensions HxLxW (mm) | 14 x 37 x 30 |
Product class | C |
Custom tariff | 9032890 |
Mechanical Data:

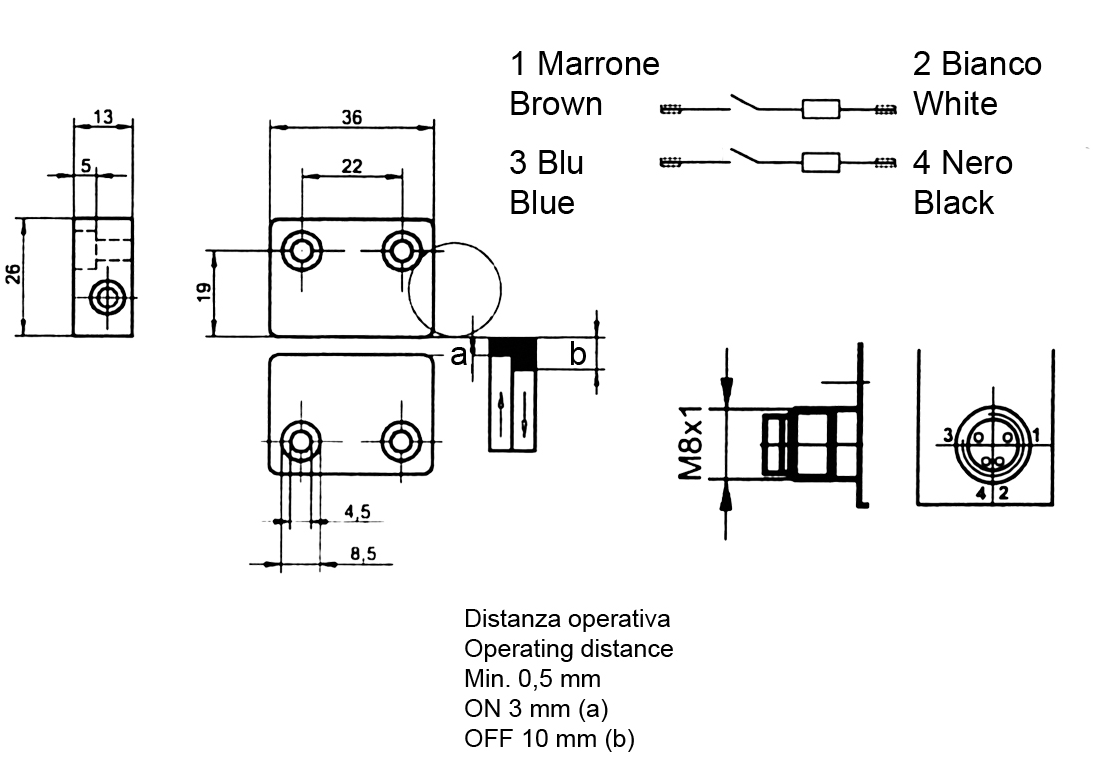

Dimensions HxWxD (mm) | 36 x 26 x 13 |
Degree of protection | IP67 |
Fastening | M4 screws with flat head (e.g. M4 cheese head screws ISO 4762) |
Housing | Thermoplastic enclosure (PBT) |
Gross weight (g) | 17 |
Switching distance (mm) | 3 ... 10 |
Size | 22 mm interaxis |
