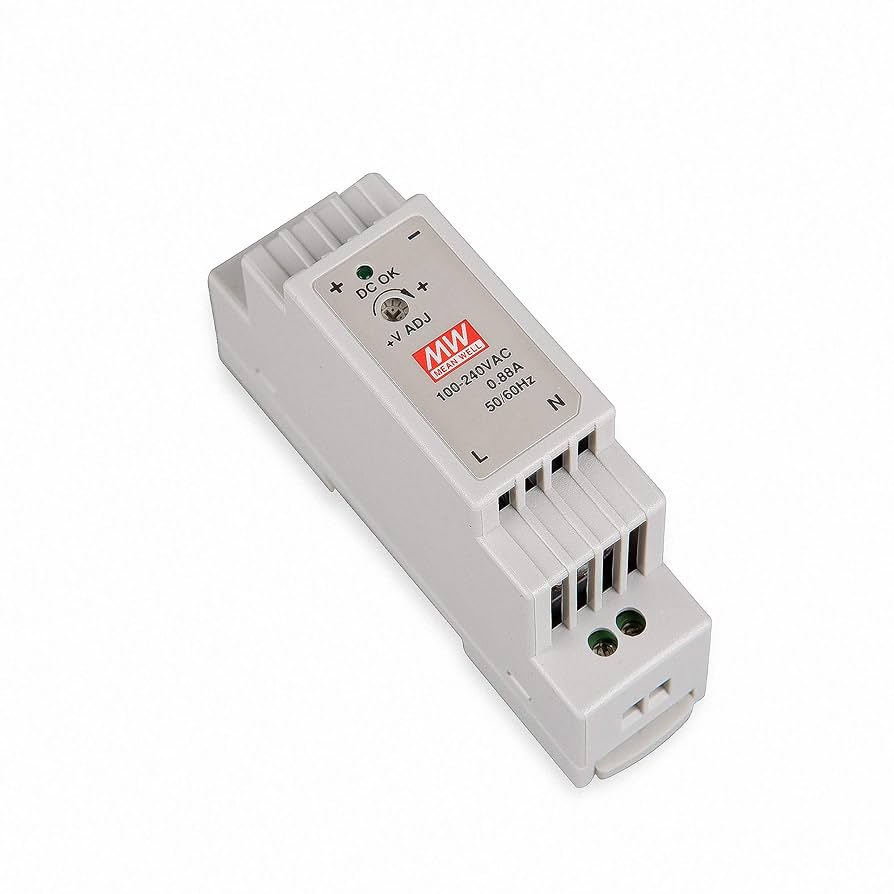

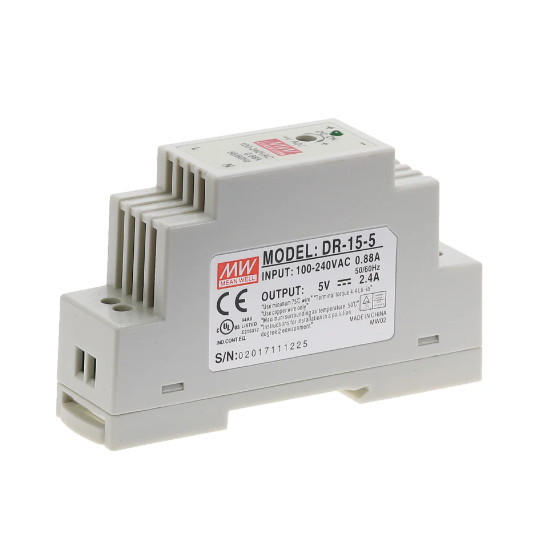

ST DR-15-5 PSU
The ST DR-15-5 is a 15W DIN rail power supply designed for industrial applications. It accepts a wide 100-240VAC input range and provides a regulated 5V DC output at 2.4A. Compact and reliable, the DR-15-5 includes built-in protections against short circuit, overload, and overvoltage, making it suitable for control panels, automation, and instrumentation systems.
Technical Data Of: MEANWELL DR-15-5 PSU
| Specification | Detail |
| Model | DR-15-5 |
| Brand | Mean Well |
| Input Voltage |
100–240VAC, 50/60Hz
|
| Input Current | 0.88A |
| Output Voltage | 5V DC |
| Output Current | 2.4A |
| Output Power | 15W |
| Mounting Type | DIN Rail |
| Protection Features |
Short circuit, overload, overvoltage
|
| Operating Temperature | -20°C to +60°C |
| Dimensions (L x W x H) |
22.5 x 90 x 100 mm (approx.)
|
| Weight |
0.18 kg (approx.)
|
| Certifications | CE, UL |
Compatible Part Numbers:
MEANWELL DR-15-5 PSU
DR-15-5
Installation Manual:
Southern Technology Approved Compatible Part
