MH 01-M18 / PF 096532 - Mounting Aid
MH 01-M18 / PF 096532 - Mounting Aid
Regular price
$28.48 NZD
Regular price
Sale price
$28.48 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

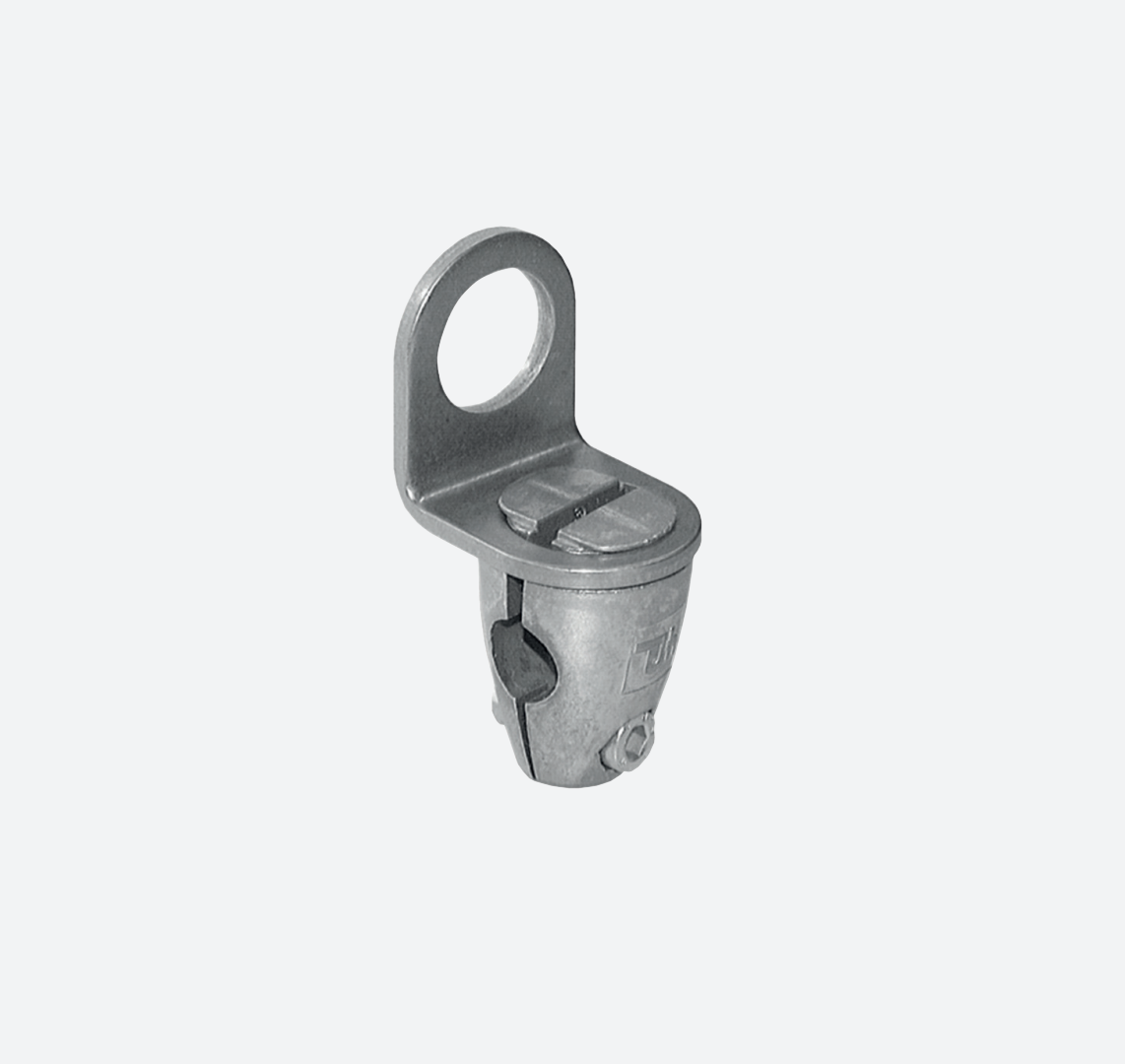

Mounting Aid, MH 01-M18 / PF 096532
- Suitable for M18 sensors
- Simple and fast mounting
Details: MH 01-M18 / PF 096532
Mounting brackets for sensors
Compatible Part Numbers:
096532
MH 01-M18
Technical Datasheet:
Datasheet excerpt: Technical data of MH 01-M18 / PF 096532
| General specifications | ||
|---|---|---|
| Inside diameter | 18 mm | |
| Mechanical specifications | ||
| Material | Clamping cylinder: Die-cast zinc Support bracket: Steel |
|
| Dimensions | ||
| Height | 66.5 mm | |
| Width | 28 mm | |
| Length | 34 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 31162301 |
Out of stock
