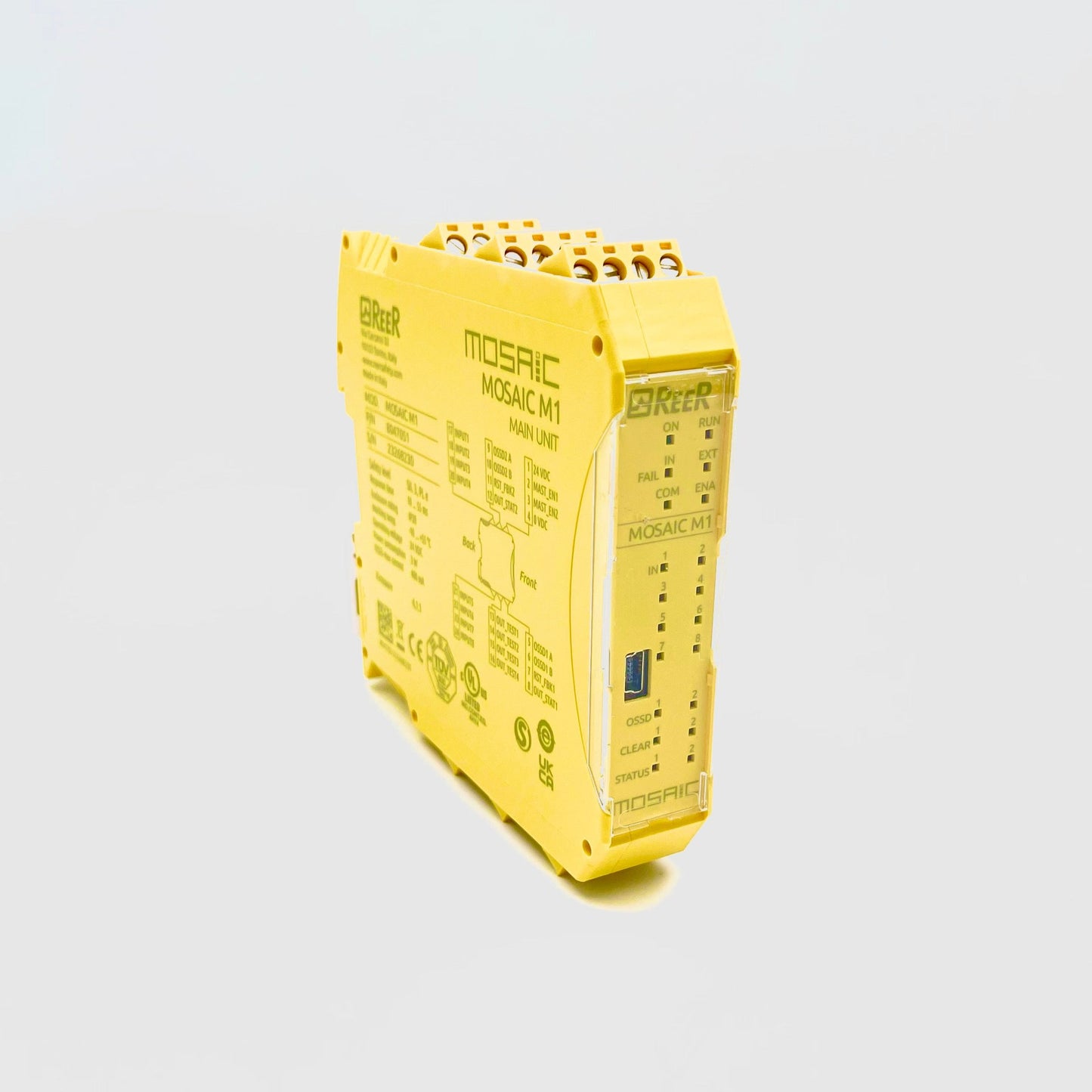

MOSAIC M1

Standard Master Unit. 8 Inputs. 2 OSSD pairs (SIL 3). Screw Terminal Blocks.

Mosaic is a safety controller able to manage all safety functions of machinery. It is configurable and scalable by providing cost reductions and minimal wiring.

Compatible Part Numbers:

1100000

Characteristics:

Modular

Configurable

Status Display

Configuration Software

Memory Card

System Capabilities:

	DIGITAL INPUTS Up tp 128
	ANALOGUE INPUTS Up to 16 (with expansion)
	SAFETY OUTPUTS Up to 32 (SIL 3)
	STATUS OUTPUTS Up to 48 (SIL 1)
	SAFETY RELAY OUTPUT Up to 32 (with expansion)
	LOGICAL OPERATORS 128

ESPANSION UNITS

	Safety relay
	Safety speed monitoring
	Analogue sensors
	Industrial fieldbus
	High-current output

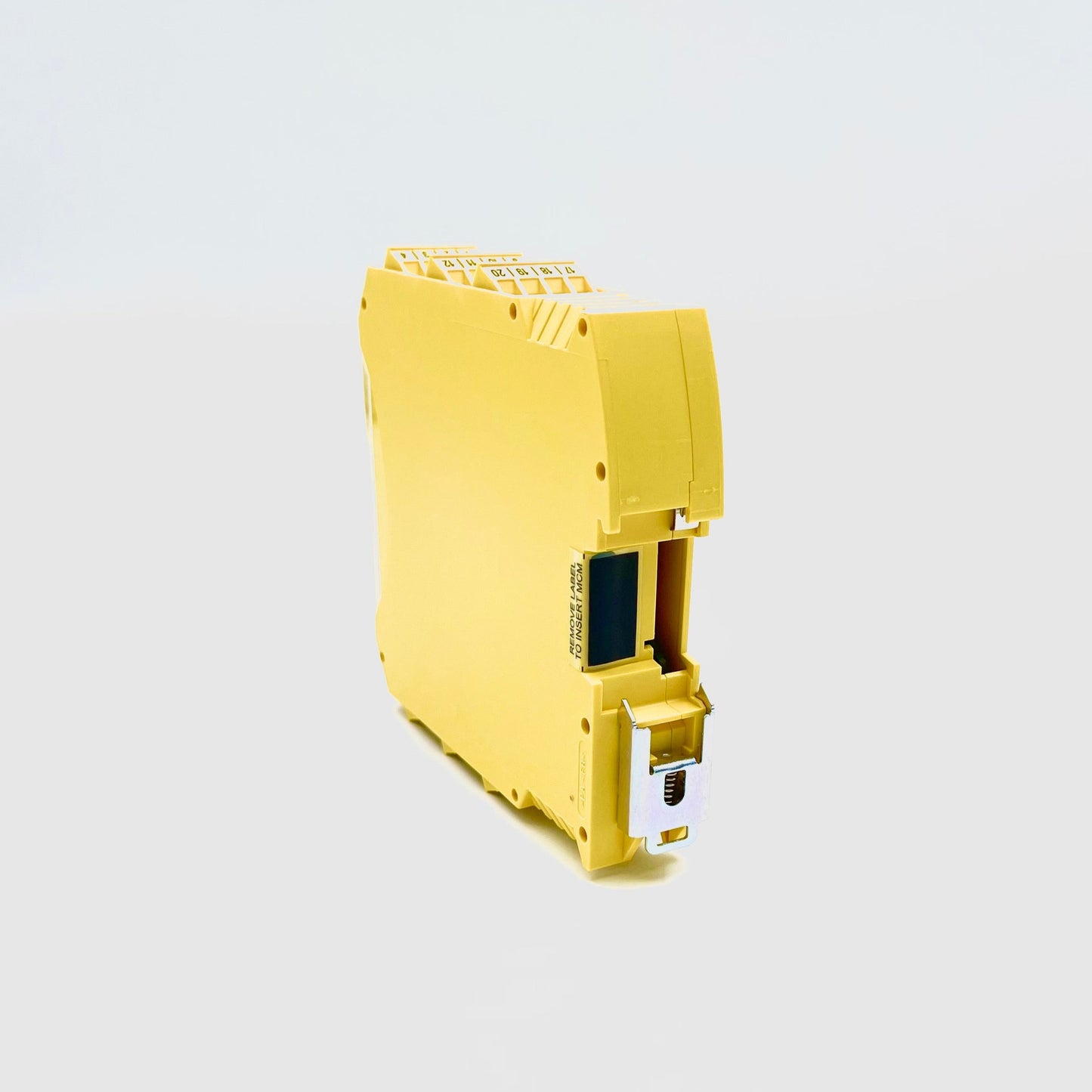

FASTENING DIN RAIL

TERMINAL BLOCKS Screws, Clamps

SAFETY LEVEL PL e - SILCL 3 - Cat. 4

IP RATING IP20



Manual:

Quick Start Manual:

Mosaic Programming Software:
