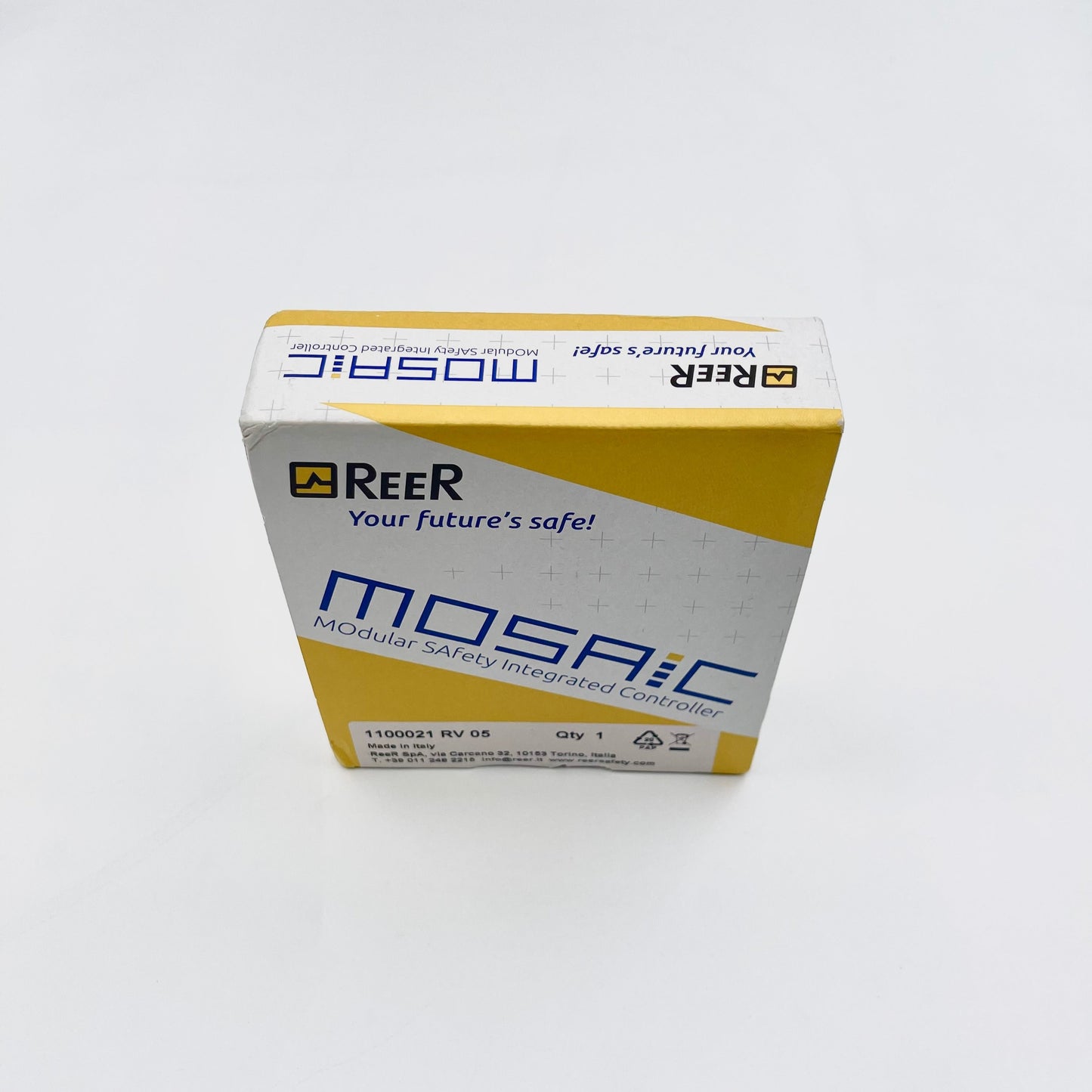

ReeR 1100021 MOSAIC MI16 - Saftey Devices - ReeR
ReeR 1100021 MOSAIC MI16 - Saftey Devices - ReeR
Regular price
$539.92 NZD
Regular price
Sale price
$539.92 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
MOSAIC MI16
Mosaic is a modular, configurable safety controller for protecting machines or plants. It is capable of monitoring several safety sensors and commands, such as safety light curtains, laser scanners, photocells, mechanical switches, mats, emergency stops, two-hand controls, concentrating management of these in a single, flexible device.
Compatible Part Numbers:
1100021
MOSAIC MI16
Details: MOSAIC MI16 - 1100021
| Safety level | PL e |
| Safety inputs | 16 digital inputs |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | - 10 ... 55 |
| Signalling | LEDs indication for operating status and fault diagnosis. LED indication of the inputs condition |
| Connections | Removable terminal blocks, screw contacts |
| MTTFD (ISO13849) years | 30 ... 100 |
| PFHD (IEC 61508) | 4,94E-09 |
| Test outputs | 4 |
| Storage temperature (°C) | -20 ... +85 |
| MSC connector provided | Yes |
| Connection with MSC BUS | Yes |
| Packaging dimensions HxLxW (mm) | 36 x 127 x 113 |
| Product class | C |
| Custom tariff | 85371091 |
Electrical Data:
| Power supply (VDC) | 24 ± 20% |
Mechanical Data:
| Dimensions HxWxD (mm) | 108 x 22,5 x 114,5 |
| Degree of protection | IP20 for housing - IP2X for terminal block |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
| Gross weight (g) | 185,4 |
Quick Instalation Guide:
Installation And Use Manual:
