MOSAIC MI8O2 - Safety Devices
MOSAIC MI8O2 - Safety Devices
Regular price
$360.00 NZD
Regular price
Sale price
$360.00 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

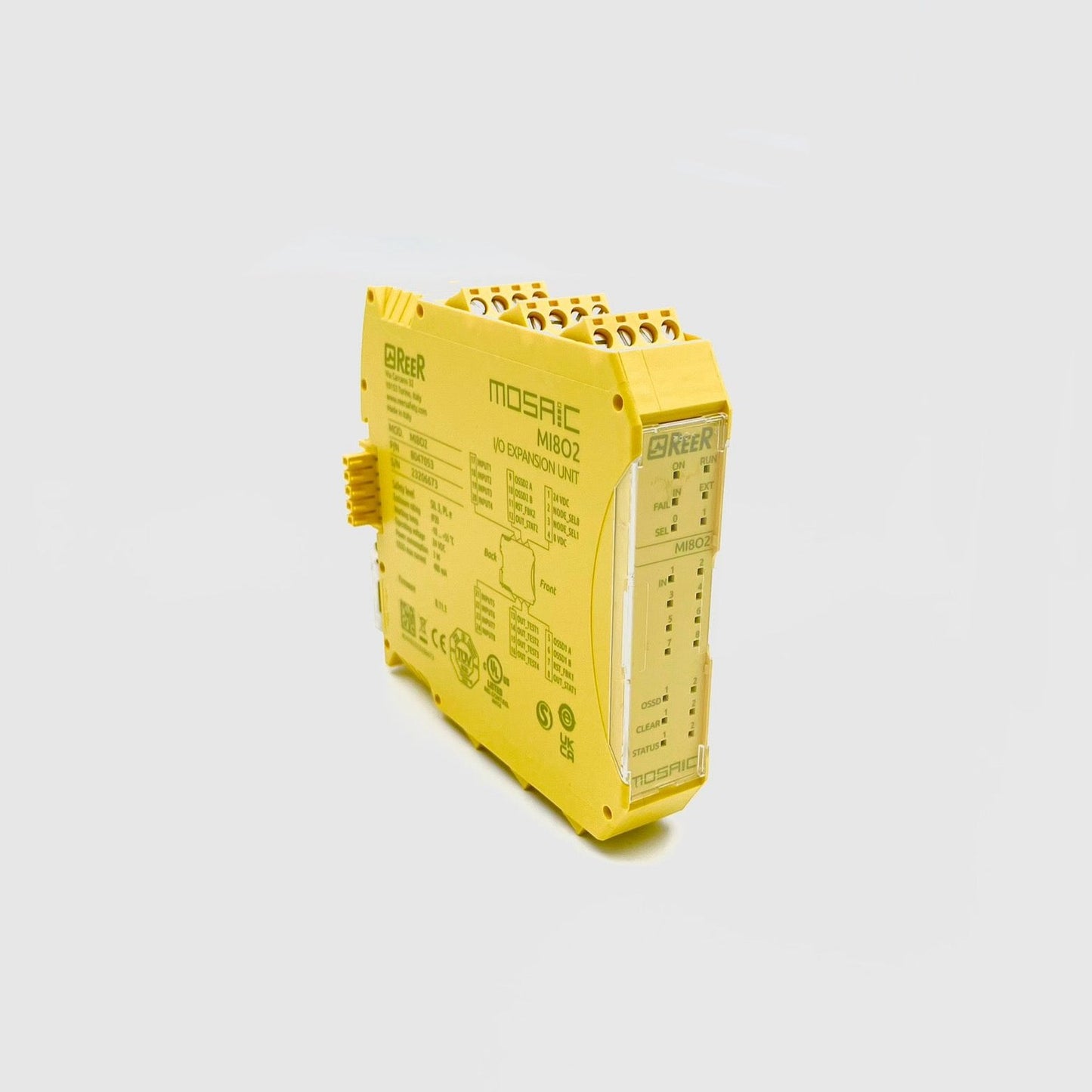

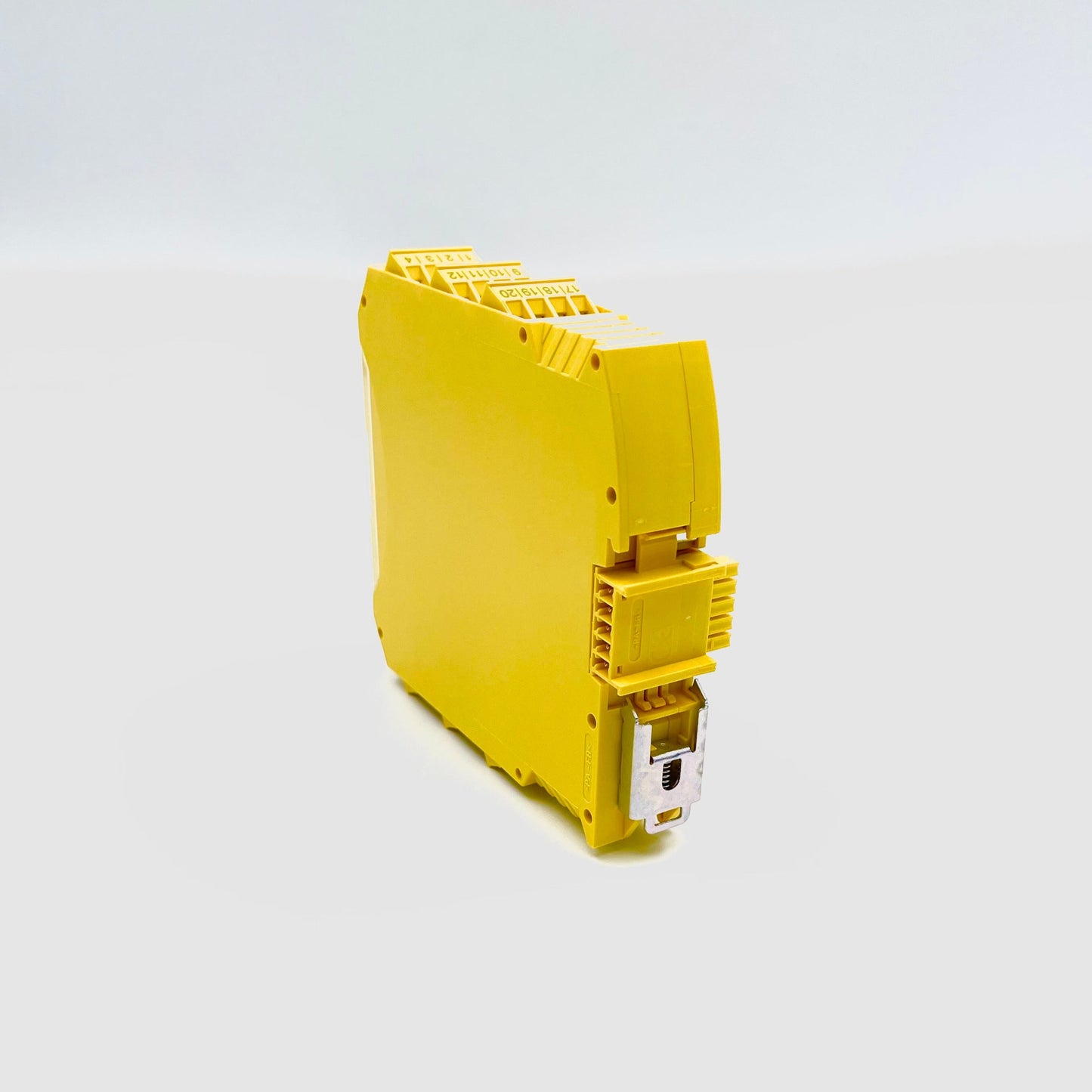

MOSAIC MI8O2
Additional I/O Expansion Unit. 8 Inputs. 2 OSSD pairs (SIL 3). Screw Terminal Blocks.
Compatible Part Numbers:
1100010
Features:
| Safety level | PL e |
| Safety inputs | 8 digital inputs |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | - 10 ... 55 |
| Signalling | LEDs indication for operating status and fault diagnosis. LED indication of the: inputs, OSSD outputs and status outputs condition |
| Safety output type | 2 OSSD PNP (400 mA at 24 VDC) with protection against short circuit, overload and reverse polarity |
| Connections | Removable terminal blocks, screw contacts |
| MTTFD (ISO13849) years | 30 ... 100 |
| PFHD (IEC 61508) | 5,68E-09 |
| Safety outputs | 2 OSSD pairs (400 mA) |
| Status outputs | 2 PNP (100 mA) |
| Test outputs | 4 |
| Storage temperature (°C) | -20 ... +85 |
| MSC connector provided | Yes |
| Connection with MSC BUS | Yes |
| Start/Restart inputs and EDM | 2 |
| Packaging dimensions HxLxW (mm) | 36 x 127 x 113 |
| Product class | C |
| Custom tariff | 85371091 |
Electrical Data
| Power supply (VDC) | 24 ± 20% |
Mechanical Data
| Dimensions HxWxD (mm) | 108 x 22,5 x 114,5 |
| Degree of protection | IP20 for housing - IP2X for terminal block |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
| Gross weight (g) | 185,4 |

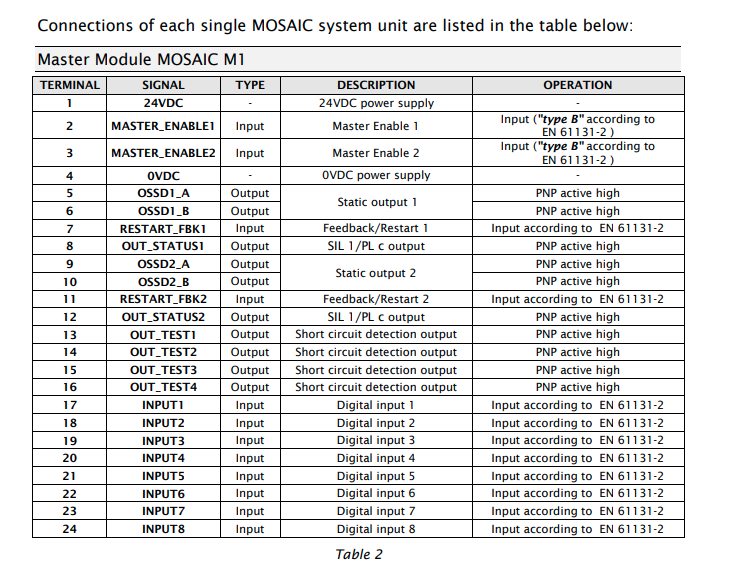

Installation and Use Manual:
Quick Installation Guide:
1 in stock
