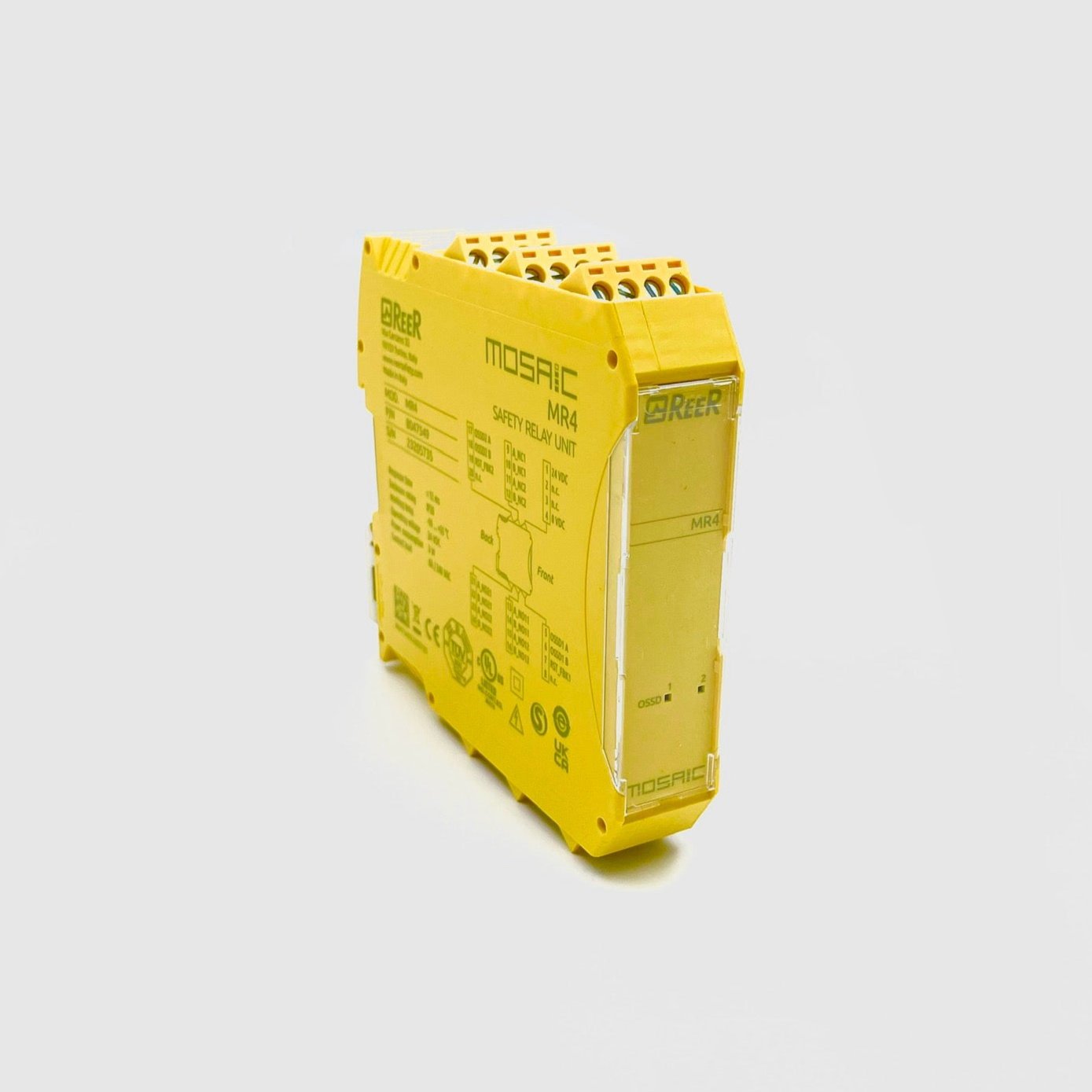

MOSAIC MR4
Safety Relay Expansion Unit. 4 Safety Relays (4 NO + 2 NC contacts). Screw Terminal Blocks.
Compatible Part Numbers:
1100041
Features:
Safety level | PL e |
Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
Operating temperature (°C) | - 10 ... 55 |
Signalling | LEDs indication for operating status and fault diagnosis. LED indication of the inputs condition |
Connections | Removable terminal blocks, screw contacts |
MTTFD (ISO13849) years | The values depend on the type of use. Refer to the technical manual |
PFHD (IEC 61508) | The values depend on the type of use. Refer to the technical manual |
Safety relay outputs | 4 NO + 2 NC (6A at 250 VAC) |
Storage temperature (°C) | -20 ... +85 |
Housing for MCM | No |
USB input | No |
Packaging dimensions HxLxW (mm) | 36 x 127 x 113 |
Product class | C |
Custom tariff | 8536490 |
Electrical Data:
Power supply (VDC) | 24 ± 20% |
Mechanical Data:
Dimensions HxWxD (mm) | 108 x 22,5 x 114,5 |
Degree of protection | IP20 for housing - IP2X for terminal block |
Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
Gross weight (g) | 230,8 |
Installation and Use Manual:
Quick Installation Guide:
