OBD200-18GM60-E5-V1-IR-1C / PF 70113328-100152 - Diffuse Mode Sensor
OBD200-18GM60-E5-V1-IR-1C / PF 70113328-100152 - Diffuse Mode Sensor
Regular price
$174.98 NZD
Regular price
Sale price
$174.98 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

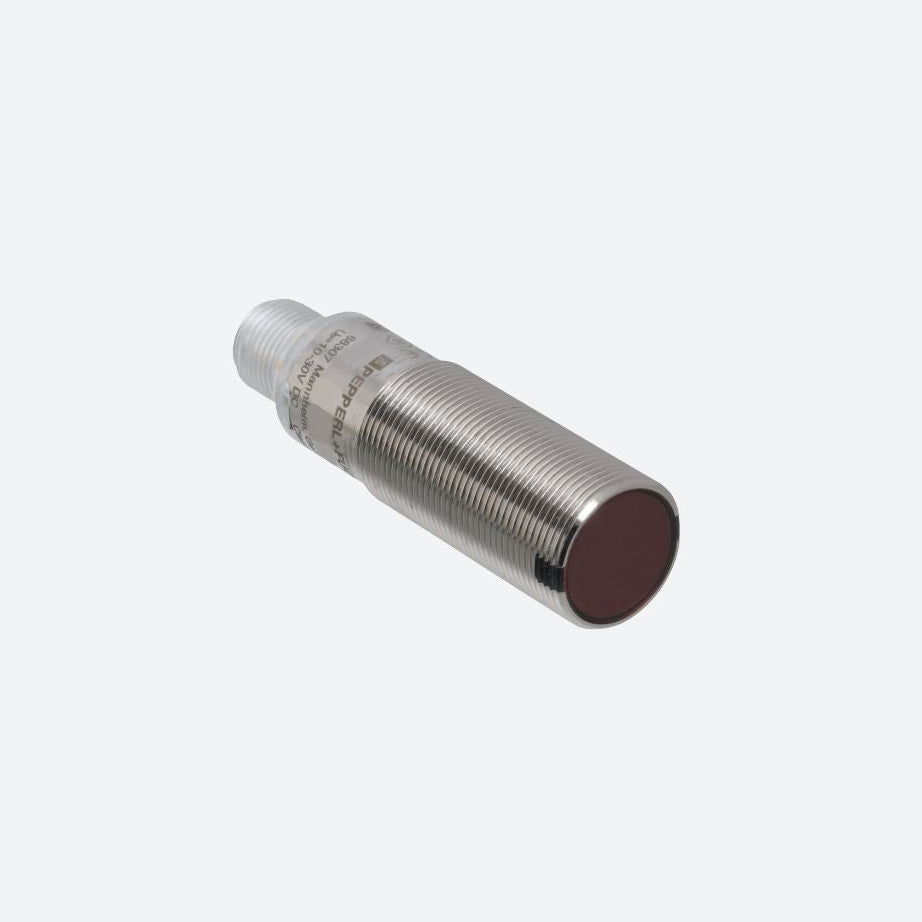

Diffuse Mode Sensor, OBD200-18GM60-E5-V1-IR-1C / PF 70113328-100152
- Strong metallic housing in cylindrical shape M18 x 1
- Operating distance adjustable
- Not sensitive to ambient light
- Degree of protection IP67
- High operating distance
Details:
Compatible Part Numbers:
OBD200-18GM60-E5-V1-IR-1C
70113328-100152
PF 70113328-100152
Technical Datasheet:
Datasheet excerpt: Technical data of OBD200-18GM60-E5-V1-IR-1C / PF 70113328-100152
| General specifications | |
|---|---|
| Detection range | 0 ... 200 mm |
| Detection range min. | 0 ... 30 mm |
| Detection range max. | 0 ... 200 mm |
| Adjustment range | 30 ... 200 mm |
| Reference target | standard white 200 mm x 200 mm |
| Light source | IRED |
| Light type | infrared |
| Diameter of the light spot | approx. 22 mm at 200 mm |
| Opening angle | approx. 2.6 ° |
| Optical face | frontal |
| Ambient light limit | EN 60947-5-2 10000 Lux |
| Functional safety related parameters | |
|---|---|
| Hysteresis H | < 15 % |
| MTTFd | 854 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
| Indicators/operating means | |
|---|---|
| Operation indicator | LED green: on = power on; flashing (4 Hz) = short circuit |
| Function indicator | LED yellow: lit = output active; off = output inactive |
| Control elements | sensitivity adjustment |
| Control elements | light/dark on electrically switchable |
| Electrical specifications | |
|---|---|
| Operating voltage UB | 10 ... 30 V DC |
| Ripple | max. 10 % |
| No-load supply current I0 | < 25 mA |
| Protection class | III |
| Output | |
|---|---|

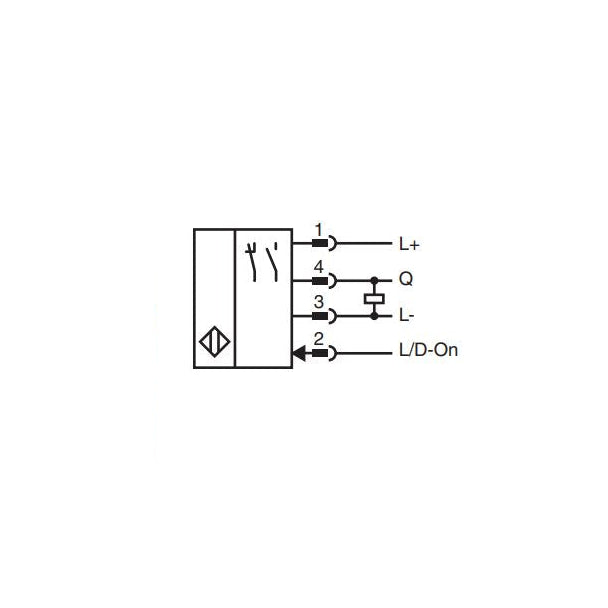

| Switching type | Adjustable; default: Q - Pin4: PNP output / light-on; L/D-On - Pin2: Low-active input |
| Signal output | 1 PNP output, short-circuit & reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA, resistive load |
| Voltage drop Ud | ≤ 2 V DC |
| Switching frequency f | 500 Hz |
| Response time | ≤ 1 ms |
| Conformity | |
|---|---|
| Product standard | EN 60947-5-2 |
| Approvals and certificates | |
|---|---|
| UL approval | E87056, cULus Listed, class 2 power supply, type rating 1 |
| Ambient conditions | |
|---|---|
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Mechanical specifications | |
|---|---|
| Degree of protection | IP67 |

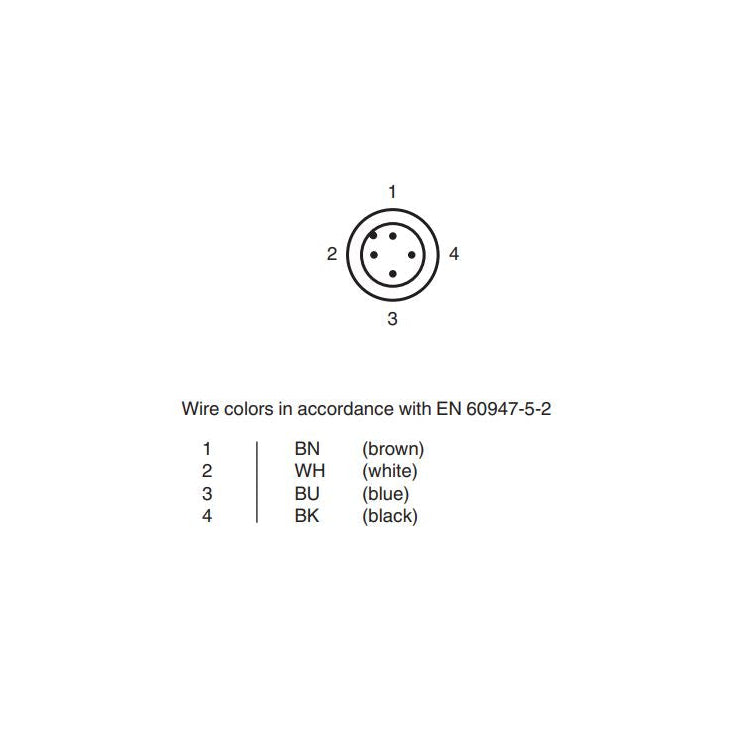

| Connection | 4-pin, M12 x 1 connector |
| Housing material | brass, nickel-plated |
| Optical face | PMMA |
| Connector | plastic |
| Mass | approx. 23 g |
| Length | 65.1 mm |
| Diameter | 18 mm |
| Thread size | M18 |
1 in stock
