OBD500-18GM60-E5-V1-IR-1C | PF70113328-100148 - Diffuse mode sensor

Name: OBD500-18GM60-E5-V1-IR-1C | PF70113328-100148 - Diffuse mode sensor
Brand: Southern Technology Ltd
Price: 151.5 NZD
Availability: InStock

$151.50 NZD

Sale Sold out

Shipping calculated at checkout.

Price (exc. GST) each

Product variants

Quantity

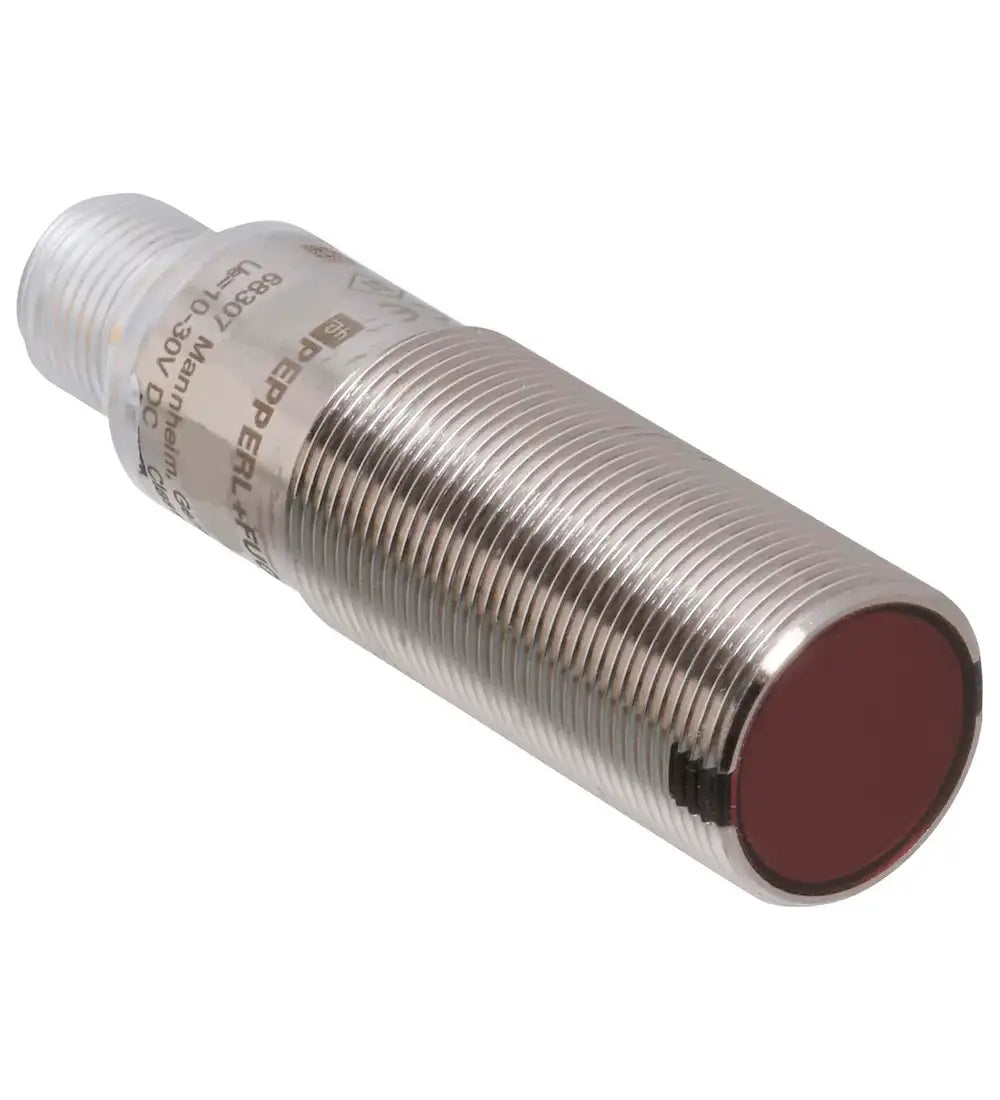

Pepperl+Fuchs OBD500-18GM60-E5-V1-IR-1C – Diffuse Mode Photoelectric Sensor featuring a rugged nickel-plated brass cylindrical M18 x 1 housing, an adjustable sensing range from 0 to 500 mm, and an infrared light source. Engineered for high performance in industrial automation, offering high immunity to ambient light, IP67 environmental protection, and electrically switchable Light-ON / Dark-ON operation.

Key Features

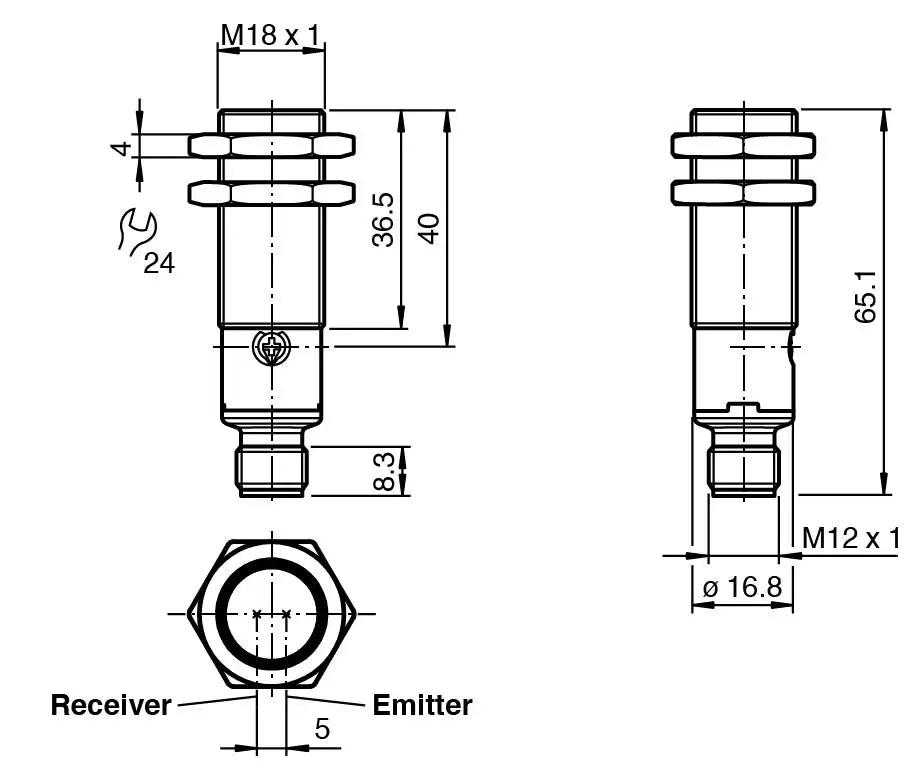

Strong Metallic Housing: Cylindrical M18 x 1 thread in durable nickel-plated brass.
Adjustable Operating Distance: 30 mm to 500 mm detection range with easy sensitivity adjustment.
High Ambient Light Immunity: Immune to external interference up to 10,000 Lux (EN 60947-5-2).
Versatile Output: 1 PNP output with short-circuit and reverse polarity protection.

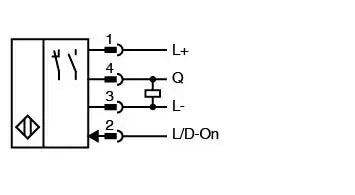

Switching Logic: Electrically switchable Light-ON / Dark-ON operation via Pin 2.
Robust Protection: IP67 rated for harsh industrial environments.
Extended Temperature Range: Operates reliably from -40 °C to +60 °C (-40 °F to +140 °F).

Technical Specifications

Manufacturer	Pepperl+Fuchs
Part Number	OBD500-18GM60-E5-V1-IR-1C
Sensor Type	Diffuse Mode Photoelectric Sensor
Detection Range	0 ... 500 mm (Adjustable: 30 ... 500 mm)
Light Source / Type	Infrared LED (IRED), 880 nm
Operating Voltage	10 ... 30 V DC
Signal Output	1 PNP output, short-circuit protected, open collector
Switching Type	Light-ON / Dark-ON electrically switchable
Response Time	≤ 1 ms

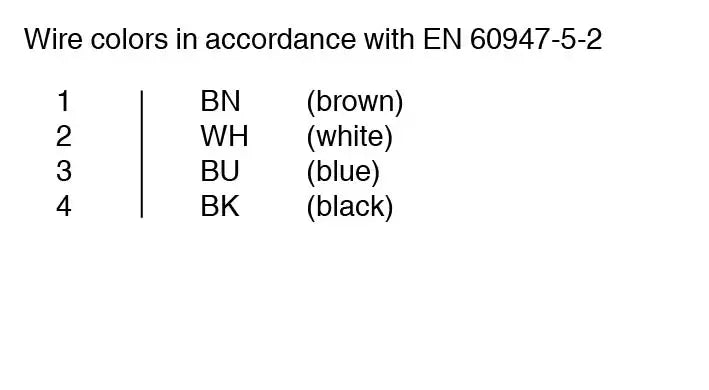

Connection Type	4-pin, M12 x 1 connector
Housing Material	Brass, nickel-plated
Optical Face	PMMA
Protection Class	IP67
Ambient Operating Temp.	-40 °C to +60 °C (-40 °F to +140 °F)
Approvals & Standards	cULus Listed (Class 2 Power), EN 60947-5-2
