ST Relay Base P2RFZ-05-E
ST Relay Base P2RFZ-05-E
Price (exc. GST) each
Couldn't load pickup availability

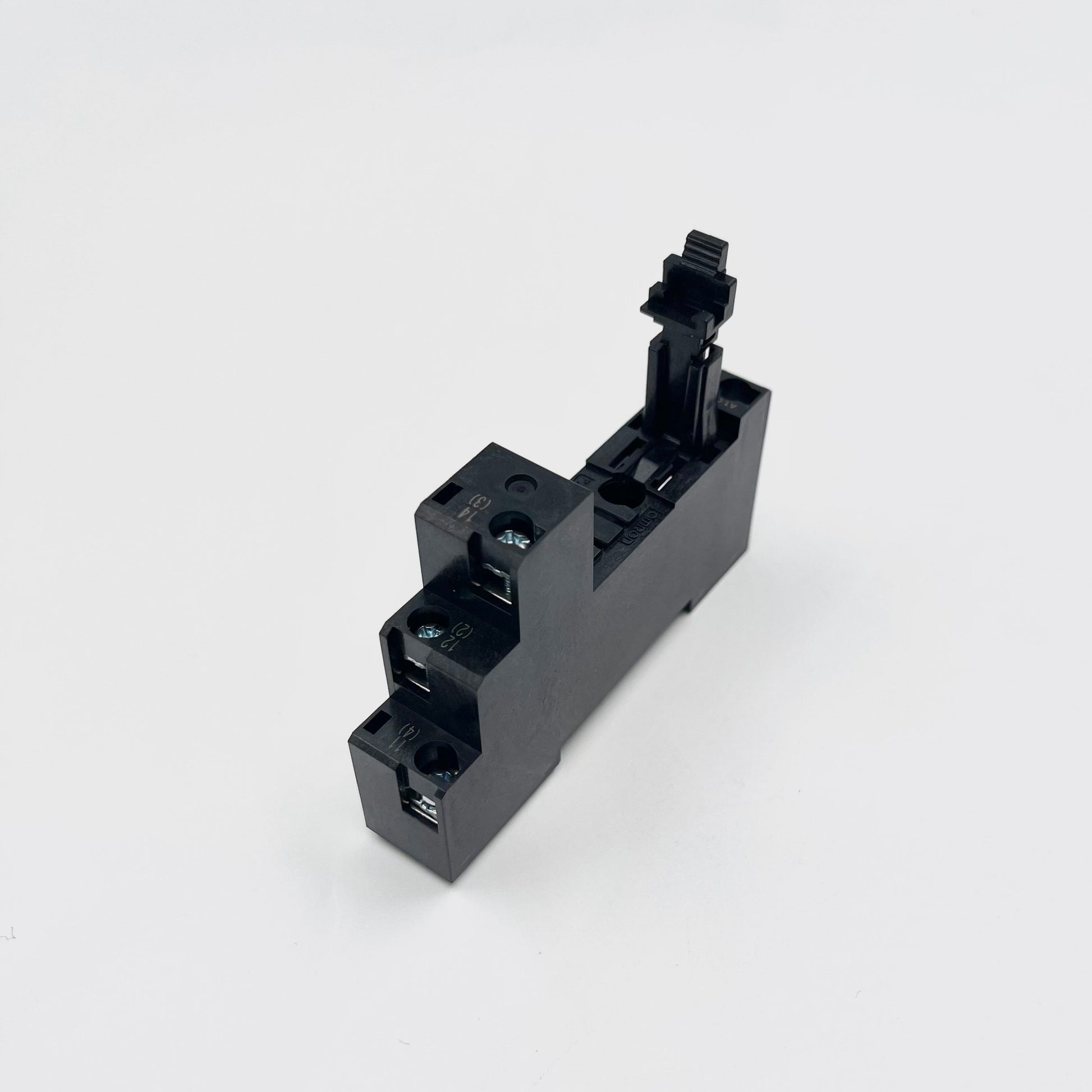

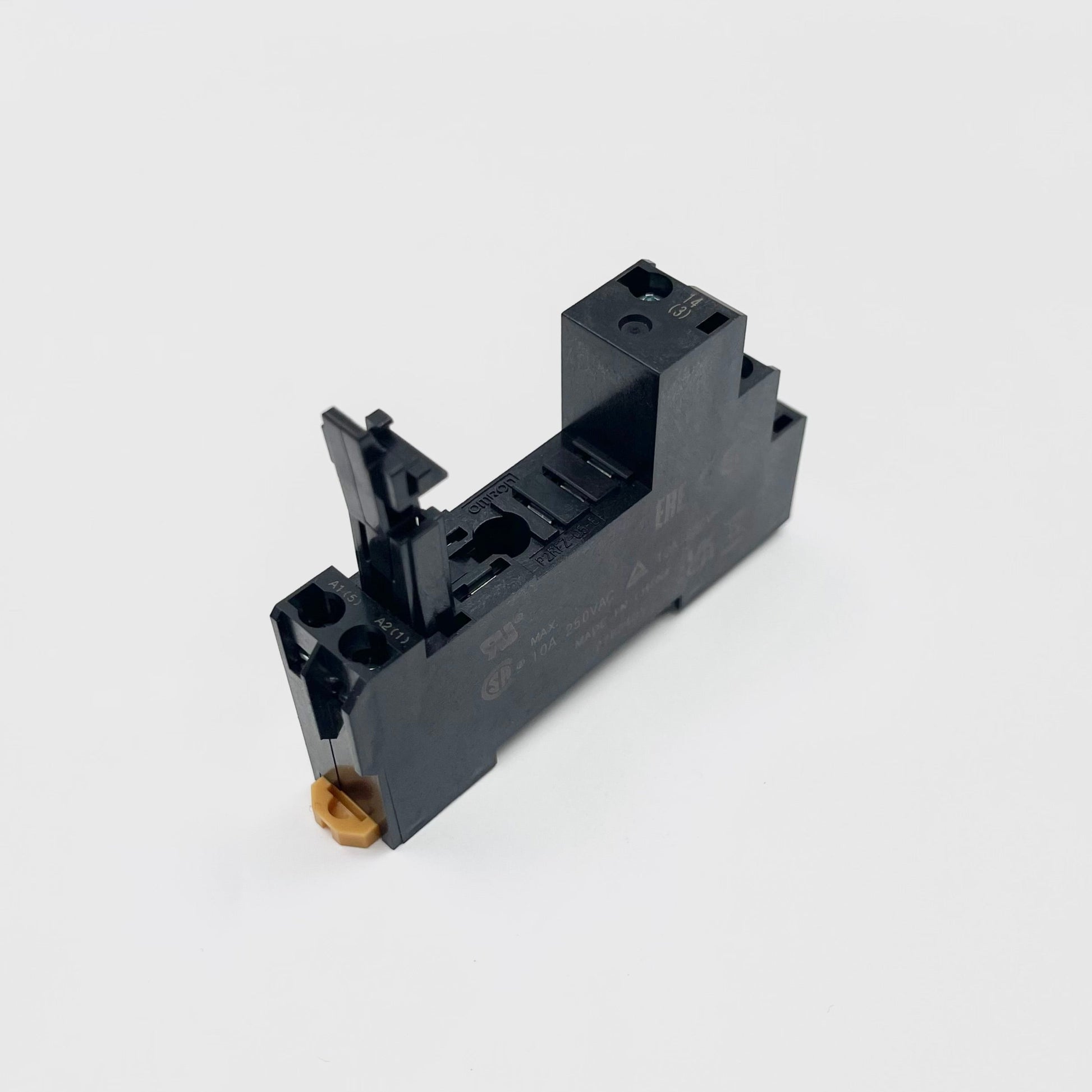

ST Relay Base P2RFZ-05-E
The P2RFZ-05-E is a compact relay socket designed for use with solid-state relays in general-purpose applications. It features a 5V DC coil voltage and provides secure mounting and reliable electrical connections for compatible relays, ensuring efficient switching and control for moderate load applications. The P2RFZ-05-E socket is designed to work with 5A switching capacity relays, making it ideal for use in industrial environments that require dependable performance.
Part of the P2RF series, the P2RFZ-05-E relay socket is known for its space-saving design and durability. It is widely used in applications where compact and secure relay mounting is essential, such as in control panels, machinery, and automation systems. The P2RF series sockets offer a combination of ease of installation and long-term reliability, making them a popular choice for systems that require efficient and dependable switching and control.
Specifications
| Applicable product family | G2R-1-S |
| Mounting method |
DIN rail/screw
|
| Product Depth (unpacked) | 61.0 mm |
| Product Height (unpacked) | 79 mm |
| Product Width (unpacked) | 15.5 mm |
| Terminal type | Screw |
| Colour | Black |
|
Hold down clip included
|
|
|
Release Lever included
|
|
| Applicable ferrules |
Forked terminals, Round terminals
|
Compatible Part Numbers:
ST Relay Base P2RFZ-05-E
P2RFZ-05-E
P2RFZ-05-E(BASE)
Omron
Technical Datasheet:
3 in stock
