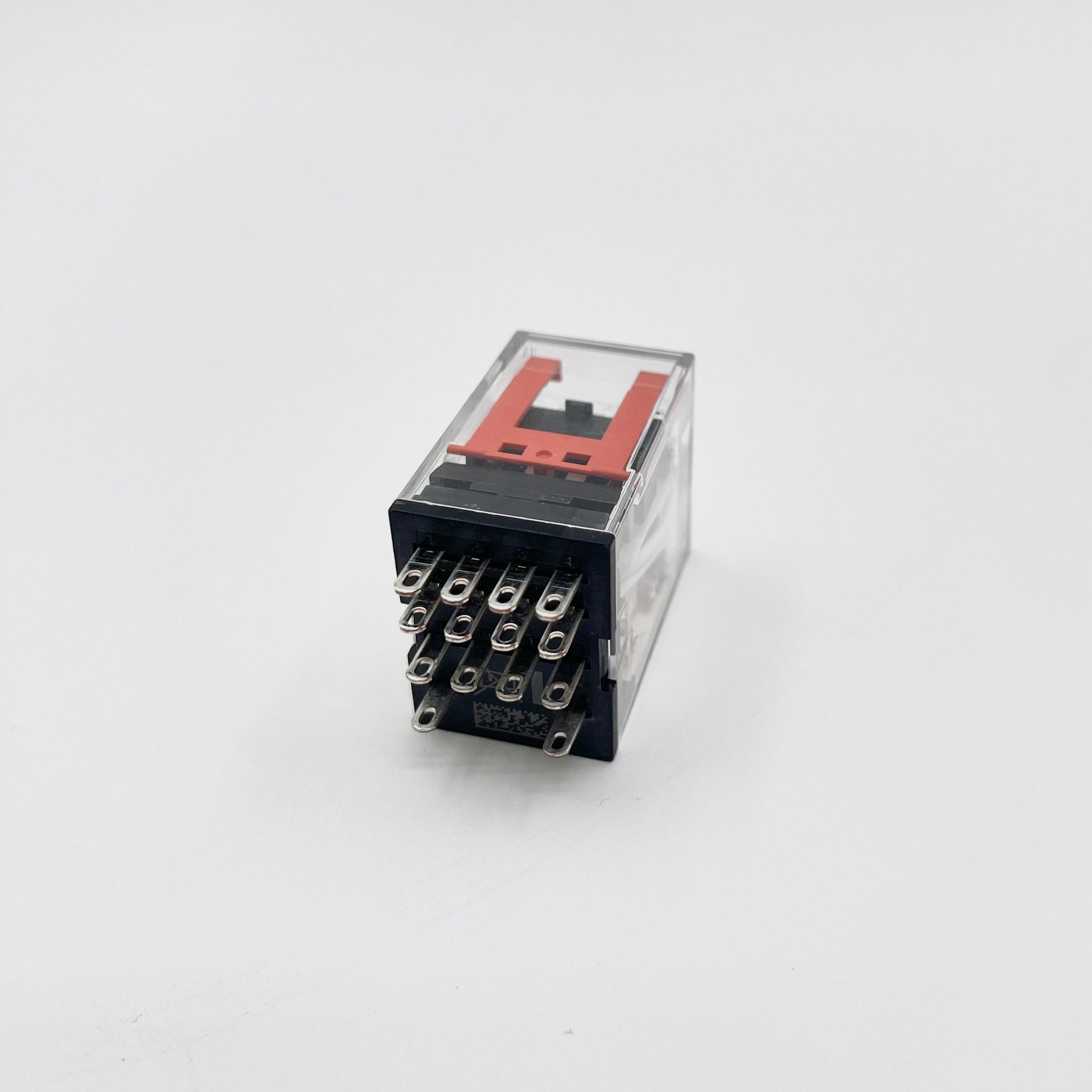

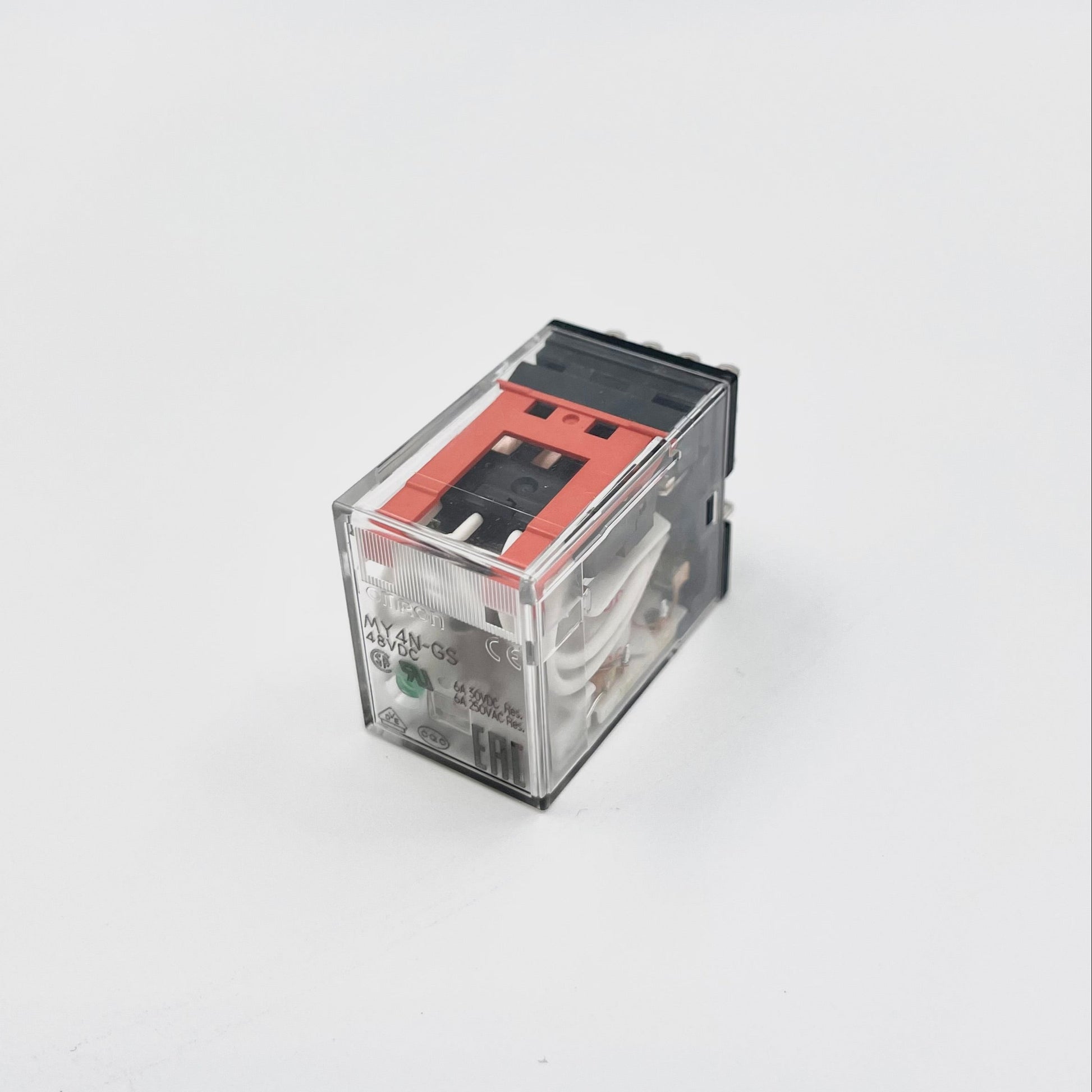

Omron Plug In Power Relay - MY4N-GS 48 VDC
The Omron MY4N-GS 48 VDC is a compact and reliable general-purpose relay designed for industrial and commercial applications. It features a 48V DC coil voltage and a four-pole, double-throw (4PDT) contact configuration, providing efficient and precise electrical switching for various load requirements. With a transparent housing for easy visual inspection and a high switching capacity, the MY4N-GS ensures stable and long-lasting performance in demanding environments.
Part of the MY series, the MY4N-GS 48 VDC relay is known for its durable construction and secure mounting. It is widely used in control panels, automation systems, and industrial equipment where dependable relay operation is essential. The MY series relays offer a combination of high performance and reliability, making them a trusted choice for applications that require efficient and durable switching control.
| Specification | Details |
| Coil Voltage | 48 VDC |
| Coil Resistance | ~2,725 Ω |
| Rated Coil Current | 17.6 mA |
| Power Consumption | ~0.9 W |
| Contact Configuration |
4PDT (Four Pole Double Throw)
|
| Contact Material |
Silver (Ag), Gold (Au)
|
| Rated Load (Resistive) |
2 A at 220 VDC, 2 A at 24 VDC
|
| Rated Carry Current | 6 A |
| Max Switching Capacity | 1,500 VA (AC), 180 W (DC) |
| Minimum Load | 1 mA at 5 VDC |
| Contact Resistance | 100 mΩ max. |
| Operation Time | 20 ms max. |
| Release Time | 20 ms max. |
| Insulation Resistance | 1,000 MΩ min. |
| Dielectric Strength |
2,000 VAC (coil to contacts)
|
| 2,000 VAC (contacts of different polarity) | |
| 1,000 VAC (contacts of same polarity) | |
| Vibration Resistance | Destruction: 10–55 Hz, 1.0 mm |
| Malfunction: 10–55 Hz, 1.0 mm | |
| Shock Resistance | Destruction: 1,000 m/s² (~100 G) |
| Malfunction: 200 m/s² (~20 G) | |
| Mechanical Endurance | 50,000,000 operations |
| Operating Temperature | -55 to 70°C |
| Ambient Humidity | 5% to 85% |
| Mounting Type | Socketable |
| Termination Style | Plug-in/Solder |
Compatible Part Numbers:
Omron Plug In Relay 48V
MY4N-GS 48 VDC
Technical Datasheet:
