Omron Power Relay 12V - MY2N-GS 12 VDC
Omron Power Relay 12V - MY2N-GS 12 VDC
Price (exc. GST) each
Couldn't load pickup availability

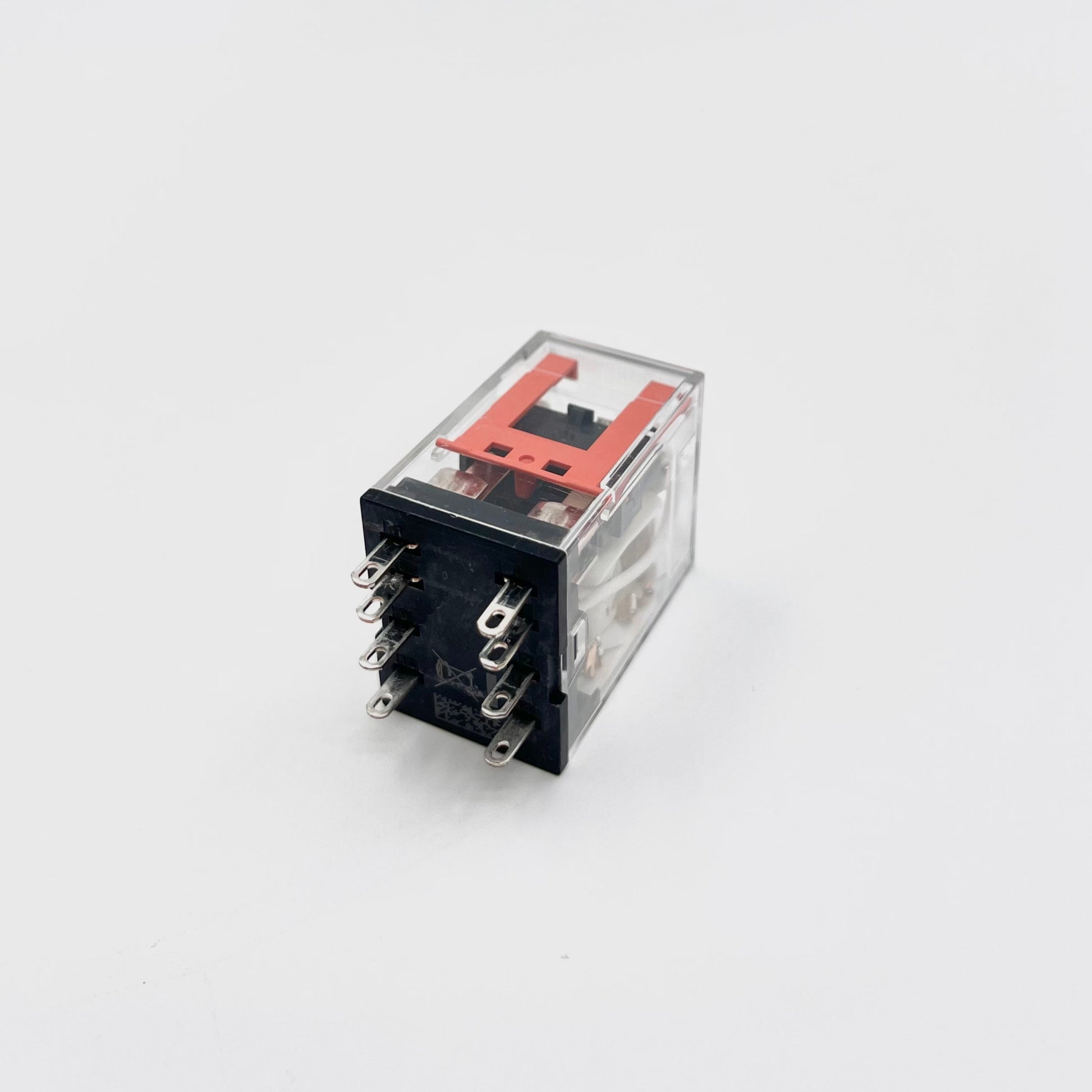

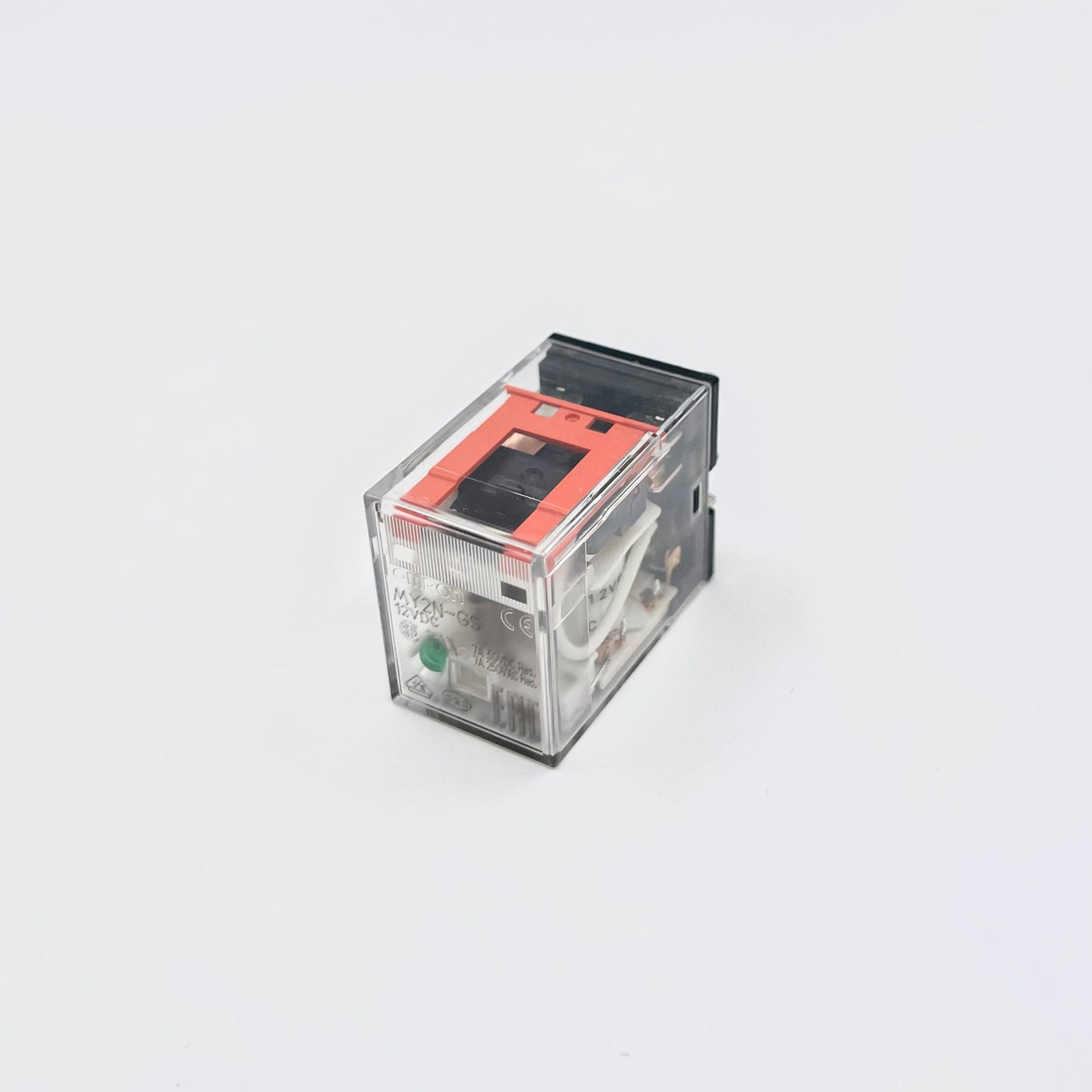

Omron Non-Latching Power Relay - MY2N-GS 12 VDC
The Omron MY2N-GS 12 VDC is a compact and reliable general-purpose relay designed for industrial and commercial applications. It features a 12V DC coil voltage and a double-pole, double-throw (DPDT) contact configuration, providing efficient and precise electrical switching for various load requirements. With a transparent housing for easy visual inspection and a high switching capacity, the MY2N-GS ensures stable and long-lasting performance in demanding environments.
Part of the MY series, the MY2N-GS 12 VDC relay is known for its durable construction and secure mounting. It is commonly used in control panels, automation systems, and industrial equipment where dependable relay operation is essential. The MY series relays offer a combination of high performance and reliability, making them a trusted choice for applications that require efficient and durable switching control.
| Item | Rated current (mA) |
Coil
resis- tance (Ω) |
Power
consumption (VA, W) |
Power
consumption (VA, W) |
||
| Rated voltage | 50 Hz | 60 Hz | ||||
|
AC
|
12 | 106.5 | 91 | 46 |
Approx. 0.9 to
1.3 (at 60 Hz) |
Approx. 0.9 to
1.3 (at 60 Hz) |
| 24 | 53.8 | 46 | 180 | |||
| 48 | 25.7 | 21.1 | 788 | |||
| 100/110 | 11.7/12.9 | 10.0/11.0 | 3,750 | |||
| 110/120 | 9.9/10.8 | 8.4/9.2 | 4,430 | |||
| 200/220 | 6.2/6.8 | 5.3/5.8 | 12,950 | |||
| 220/240 | 5.2/6.2 | 4.3/5.0 | 15,920 | |||
|
DC
|
6 | 146 (151) | 41.0 (39.8) |
Approx. 0.9
|
Approx. 0.9
|
|
| 12 | 72.7 (75) | 165 (160) |
||||
| 24 | 36.3 (37.7) | 662 (636) |
||||
| 48 | 17.6 (18.8) | 2,725 (2,560) |
||||
| 100/110 | 8.7 (9.0)/9.6 (9.9) | 11,440 (11,100) |
||||
| 220 | 3.6 | 60,394 | Approx. 0.8 | Approx. 0.8 | ||
| Coil inductance (H) |
Must- operate voltage |
Must- release voltage |
Maxi- mum voltage |
|||
| Armature OFF |
Armature ON |
Percentage of rated voltage | ||||
| 0.17 | 0.33 |
80%
max. *1 |
30%
min. *2 |
110%
|
||
| 0.69 | 1.3 | |||||
| 3.22 | 5.66 | |||||
| 14.54 | 24.6 | |||||
| 19.2 | 32.1 | |||||
| 54.75 | 94.07 | |||||
| 83.5 | 136.4 | |||||
| 0.17 | 0.33 |
10%
min. *2 |
||||
| 0.73 | 1.37 | |||||
| 3.2 | 5.72 | |||||
| 10.6 | 21 | |||||
| 45.6 | 86.2 | |||||
| 362.3 | 452.9 | |||||
Compatible Part Numbers:
Omron Power Relay 12V
MY2N-GS 12 VDC
Technical Datasheet:
