Omron Power Relay 220/240V - MY2N-GS 220/240VDC
Omron Power Relay 220/240V - MY2N-GS 220/240VDC
Price (exc. GST) each
Couldn't load pickup availability
Omron Non-Latching Power Relay - MY2N-GS 220/240VDC

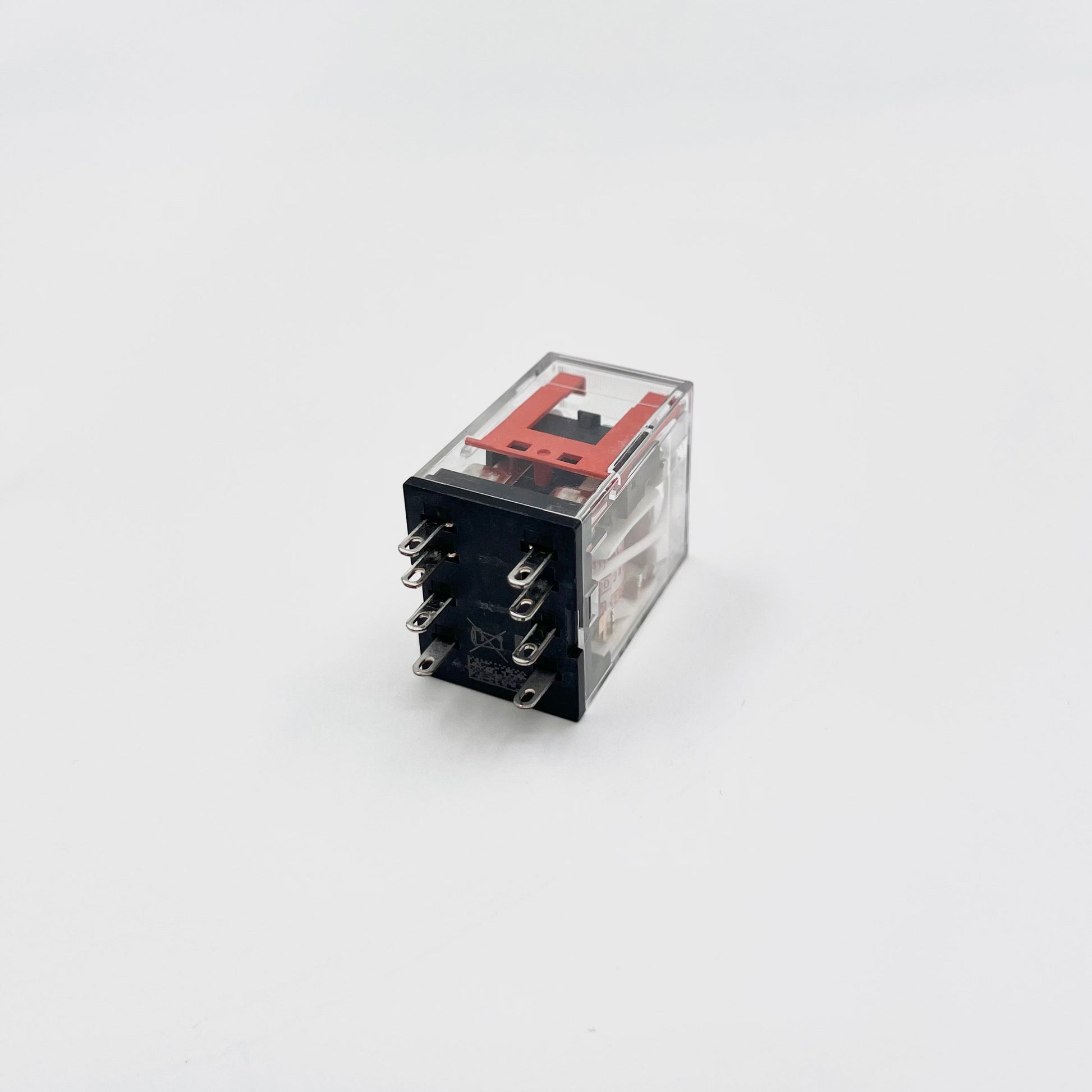

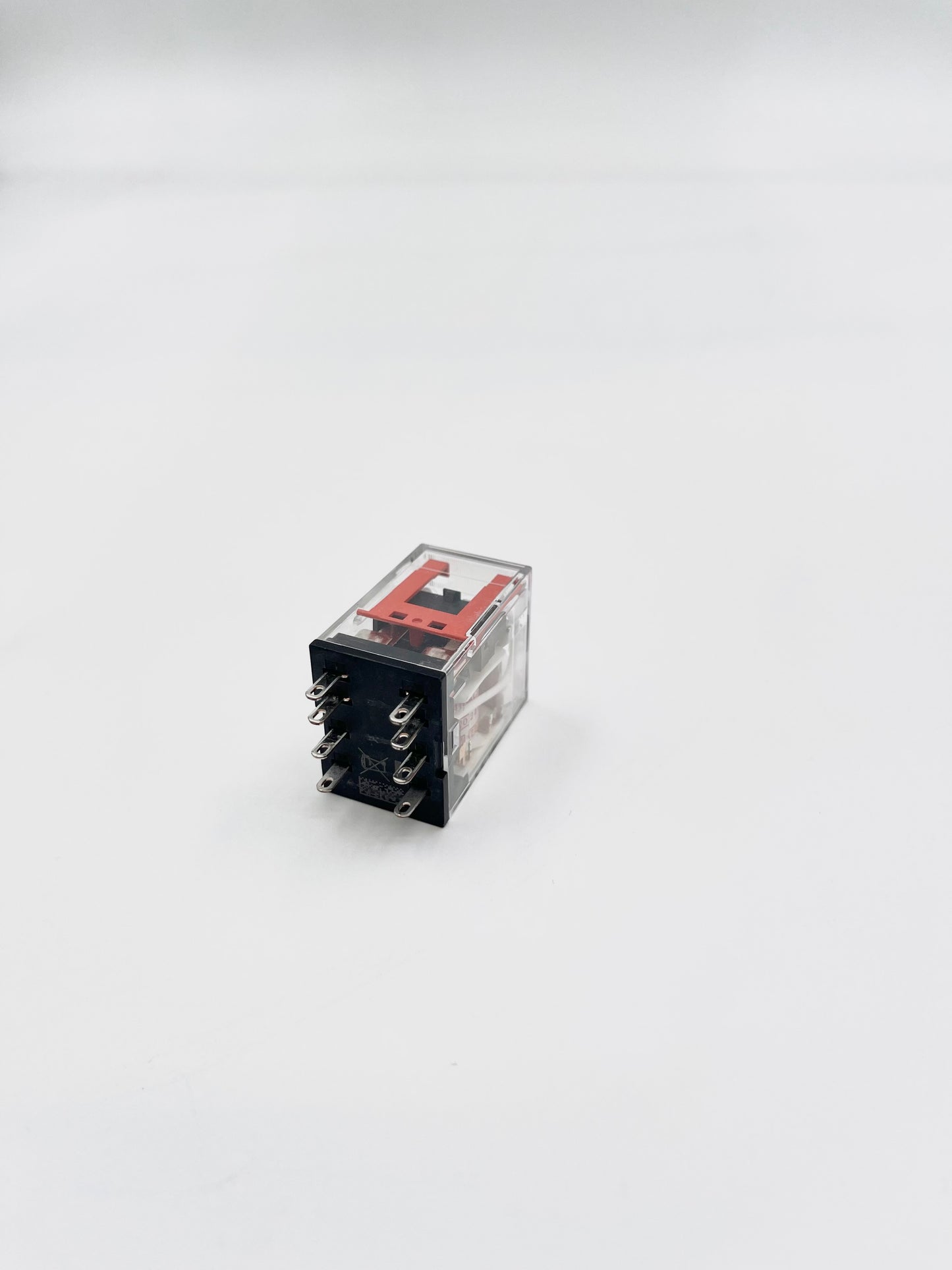

The Omron MY2N-GS 220/240 VDC is a versatile and reliable general-purpose relay designed for industrial and commercial applications. It features a 220/240V DC coil voltage and a double-pole, double-throw (DPDT) contact configuration, offering precise and efficient electrical switching for a wide range of load requirements. With a transparent housing for easy visual inspection and a high switching capacity, the MY2N-GS ensures stable performance and long service life in demanding environments.
Part of the MY series, the MY2N-GS 220/240 VDC relay is known for its durable construction and secure mounting. It is widely used in control panels, automation systems, and industrial equipment where dependable relay operation is critical. The MY series relays combine high performance, reliability, and ease of use, making them a trusted choice for applications requiring efficient and long-lasting switching control.
| Item | Rated current (mA) |
Coil
resis- tance (Ω) |
Power
consumption (VA, W) |
||
| Rated voltage | 50 Hz | 60 Hz | |||
|
AC
|
12 | 106.5 | 91 | 46 |
Approx. 0.9 to
1.3 (at 60 Hz) |
| 24 | 53.8 | 46 | 180 | ||
| 48 | 25.7 | 21.1 | 788 | ||
| 100/110 | 11.7/12.9 | 10.0/11.0 | 3,750 | ||
| 110/120 | 9.9/10.8 | 8.4/9.2 | 4,430 | ||
| 200/220 | 6.2/6.8 | 5.3/5.8 | 12,950 | ||
| 220/240 | 5.2/6.2 | 4.3/5.0 | 15,920 | ||
|
DC
|
6 | 146 (151) | 41.0 (39.8) |
Approx. 0.9
|
|
| 12 | 72.7 (75) | 165 (160) |
|||
| 24 | 36.3 (37.7) | 662 (636) |
|||
| 48 | 17.6 (18.8) | 2,725 (2,560) |
|||
| 100/110 | 8.7 (9.0)/9.6 (9.9) | 11,440 (11,100) |
|||
| 220 | 3.6 | 60,394 | Approx. 0.8 | ||
| Coil inductance (H) |
Must- operate voltage |
Must- release voltage |
Maxi- mum voltage |
||
| Armature OFF |
Armature ON |
Percentage of rated voltage | |||
| 0.17 | 0.33 |
80%
max. *1 |
30%
min. *2 |
110%
|
|
| 0.69 | 1.3 | ||||
| 3.22 | 5.66 | ||||
| 14.54 | 24.6 | ||||
| 19.2 | 32.1 | ||||
| 54.75 | 94.07 | ||||
| 83.5 | 136.4 | ||||
| 0.17 | 0.33 |
10%
min. *2 |
|||
| 0.73 | 1.37 | ||||
| 3.2 | 5.72 | ||||
| 10.6 | 21 | ||||
| 45.6 | 86.2 | ||||
| 362.3 | 452.9 | ||||
Compatible Part Numbers:
Omron Power Relay 220/240V
MY2N-GS 220/240VDC
Technical Datsheet:
2 in stock
