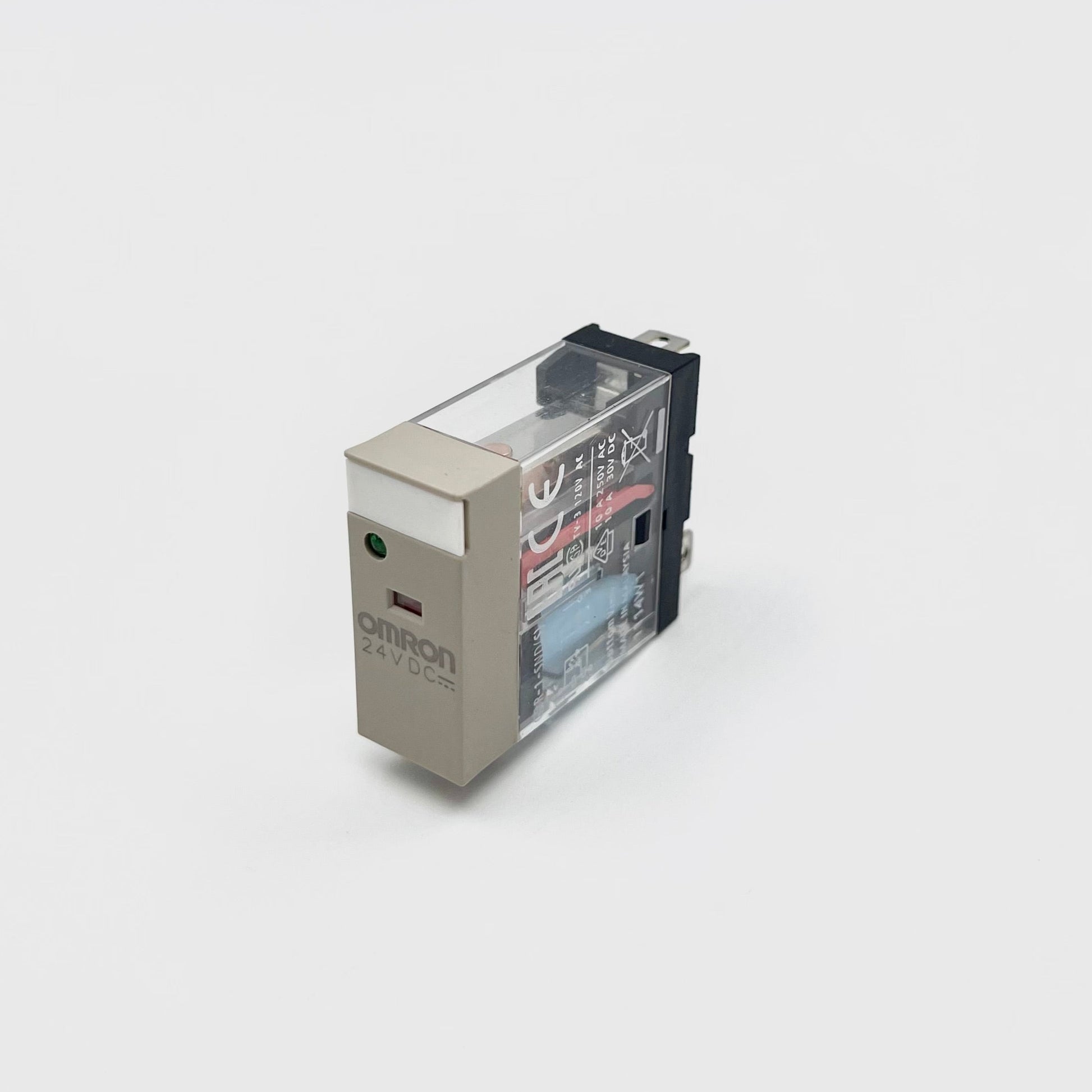

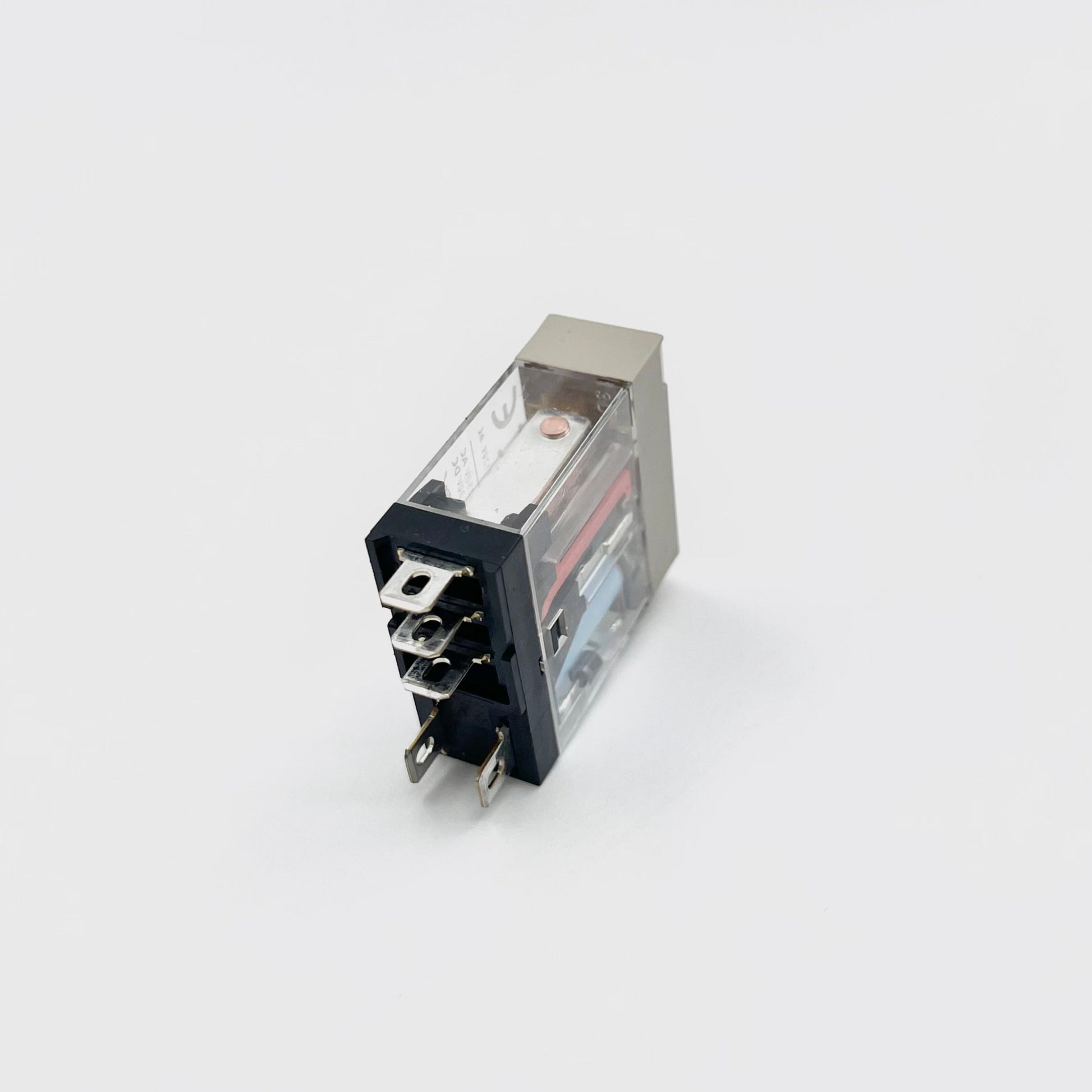

Omron Plug In Power Relay - G2R-1-SND(S) DC24
The Omron G2R-1-SND(S) DC24 is a compact and reliable general-purpose power relay designed for industrial and commercial applications. It features a 24V DC coil voltage and a single-pole, double-throw (SPDT) contact configuration, providing efficient and precise electrical switching for a wide range of load requirements. With a high switching capacity and durable construction, the G2R-1-SND(S) DC24 ensures stable performance in demanding environments.
Part of the G2R series, the G2R-1-SND(S) DC24 relay is known for its robust design and secure mounting. It is widely used in control panels, automation systems, and electrical equipment where dependable relay operation is essential. The G2R series relays offer a combination of high performance and long-term reliability, making them a trusted choice for applications that require efficient and durable switching control.
| Attribute | Value |
| Coil Voltage | 24V dc |
| Contact Configuration | SPDT |
| Mounting Type | Plug In |
| Switching Current | 6A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Plug In |
| Maximum Switching Voltage AC | 440V ac |
| Maximum Switching Voltage DC | 125V dc |
| Length | 30.5mm |
| Coil Resistance | 1.113 kΩ |
| Coil Power | 300mW |
| Height | 5.2mm |
| Isolation Coil To Contact | 4kV ac |
| Maximum Operating Temperature | +70°C |
| Series | G2R |
| Minimum Operating Temperature | -40°C |
| Depth | 29.5mm |
| Standards Met | CE |
| Contact Material | Silver Alloy |
| Life |
100000 (Electrical) Operations, 50000 (NC) Operations, 5000000 (Mechanical) Operations, 70000 (NO) Operations
|
| Maximum Switching Power DC | 180 W |
| Maximum Switching Power AC | 1.5 kVA |
| Application |
PLC Application
|
Compatible Part Numbers:
Omron Power Relay 24V 10A
G2R-1-SND(S) DC24
G2R-1-SND DC24(S)
Technical Datasheet:
